Cisco SFP-25G-SL Compatible SFP28 transceiver adopts LC duplex connectors, reaching a link up to 30m over OM4 MMF. The SFP28 transceiver module supports running on the same 1G/10G network cabling Infrastructure, giving 2.5 times increase in speed at least, and the built-in DOM functions monitor the real-time operating status. Each SFP28 transceiver module is individually tested in targeted switches, and is fully compliant with the SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE 802.3by, IEEE 802.3cc standards. Featuring low power consumption, high speed, this 25G transceiver is ideal for 25G Ethernet, Telecom, and Data Center.

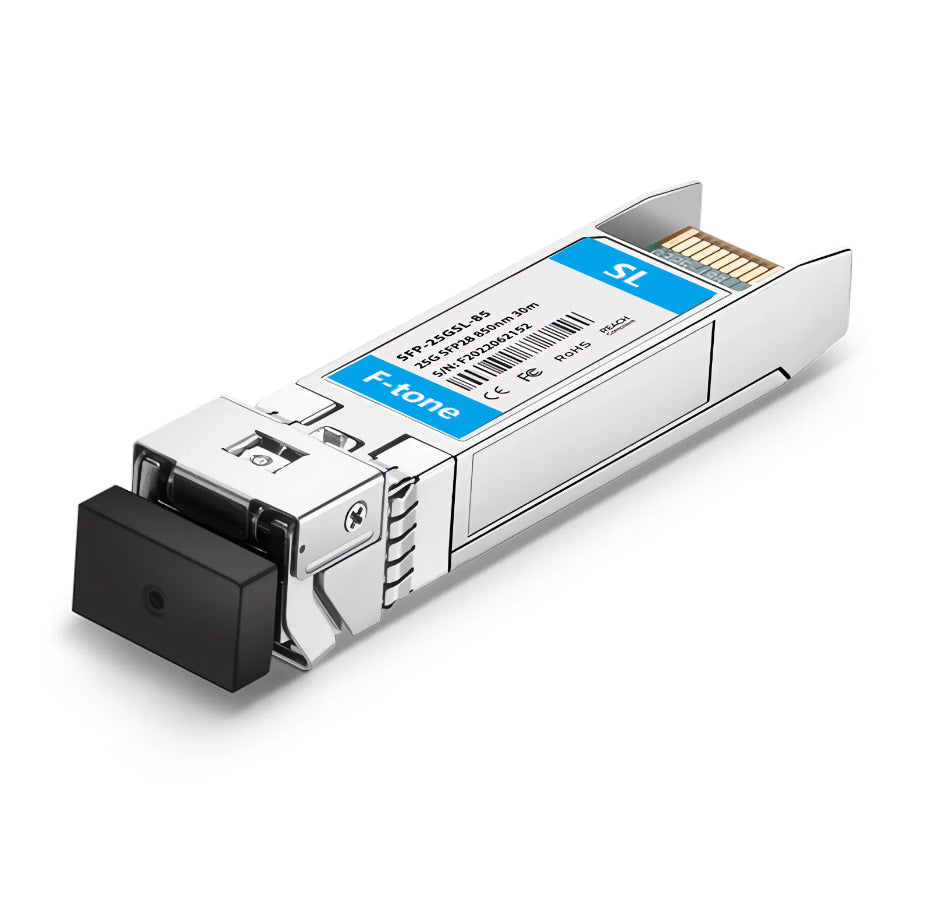

Cisco SFP-25G-SL Compatible 25GBASE-SL SFP28 Optical Transceiver Module (MMF, 850nm, 30m, LC, DOM)
Specifications
|
Model Name: |
SFP-25G-SL |
Vendor Name: |
F-tone Networks |
|
Form Factor: |
SFP28 |
Data Rate: |
25.78Gbps |
|
Wavelength: |
850nm |
Distance: |
30m |
|
Connector: |
Duplex LC |
Cable Type: |
MMF |
|
Transmitter Type: |
VCSEL |
Receiver Type: |
PIN |
|
TX Power: |
-8.4~2.4dBm |
Receiver Sensitivity: |
-10.2 dBm |
|
Power Consumption: |
≤0.6W |
Receiver Overload: |
2.4 dBm |
|
DOM: |
Support |
Extinction Ratio:
|
2dB |
|
Protocols: |
SFF-8472, SFF-8024, SFF-8431, SFF-8432, IEEE 802.3by, IEEE 802.3cc
|
Warranty: |
5 Years |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
