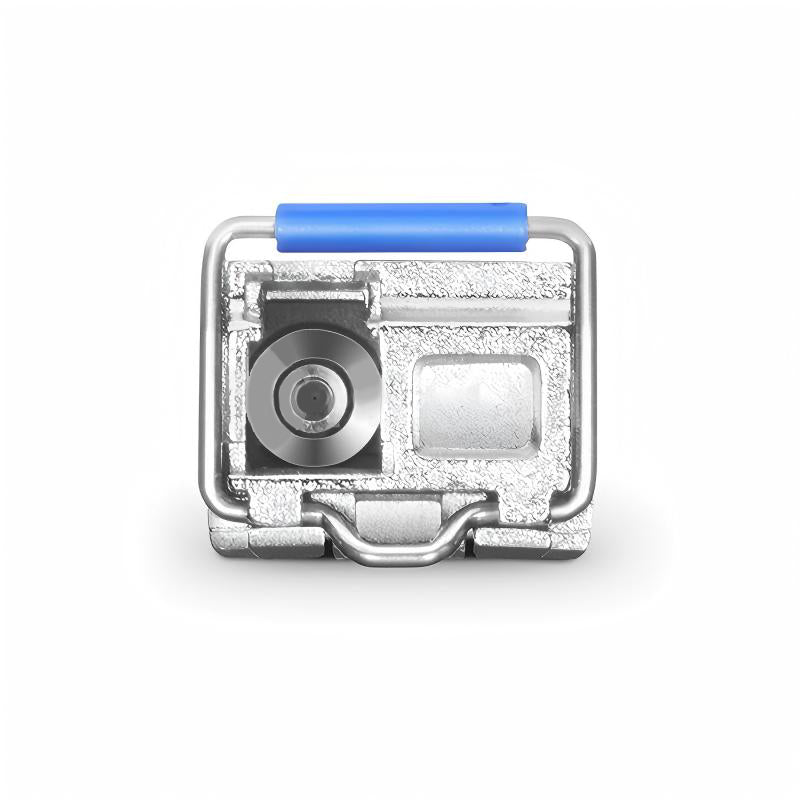

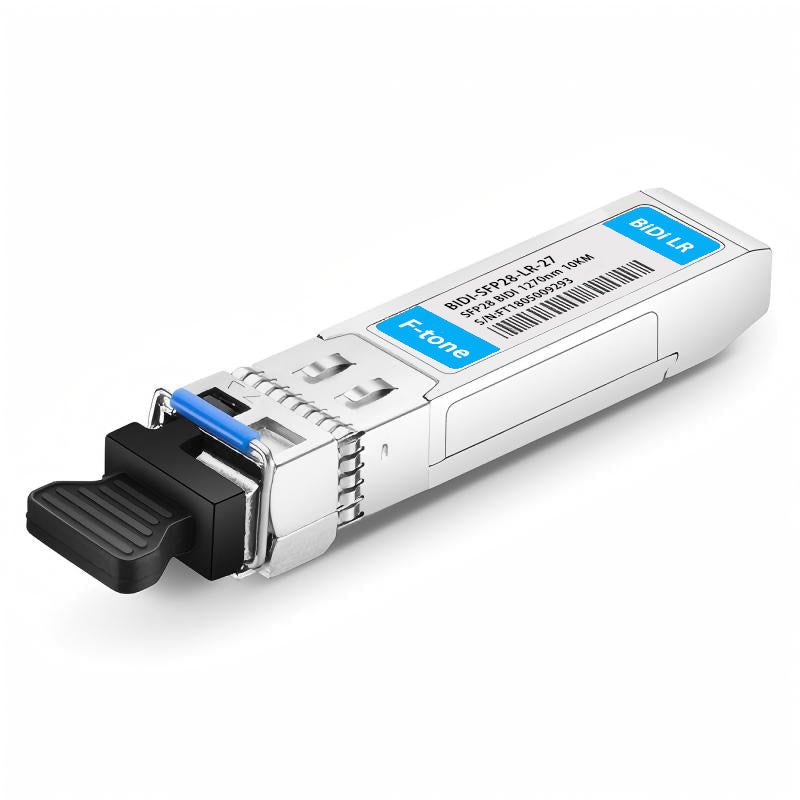

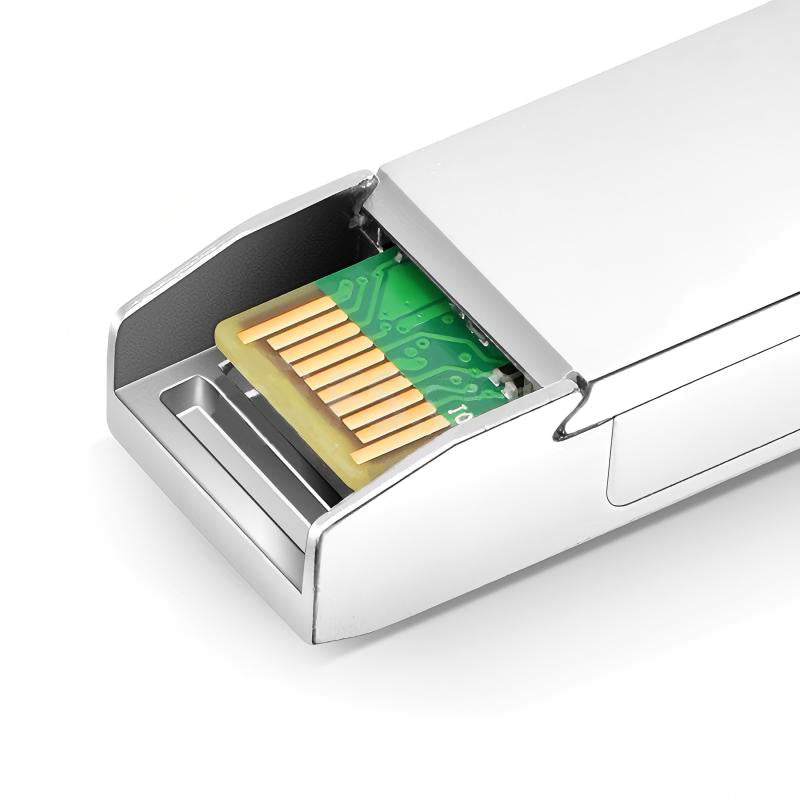

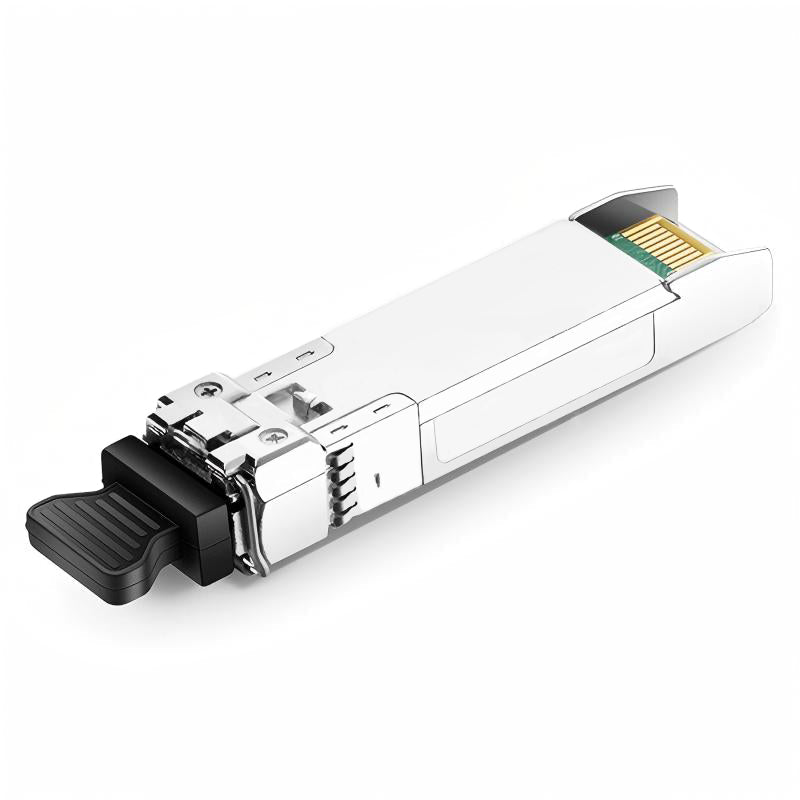

Cisco SFP-25GBX-U-10 Compatible 25GBASE-BX10-U SFP28 1270nm-TX/1330nm-RX 10km Optical Transceiver Module

Cisco SFP-25GBX-U-10 Compatible 25GBASE-BX10-U SFP28 1270nm-TX/1330nm-RX 10km Optical Transceiver Module

View full details

Cisco SFP-25GBX-U-10 Compatible 25GBASE-BX10-U SFP28 Optical Transceiver Module (SMF, 1270nm-TX/1330nm-RX, 10km, LC, DDM)

The Cisco SFP-25GBX-U-10 compatible 25G SFP28 optical transceiver is equipped with an LC simplex connector, reaching a link up to 10km over G.652. 25G BiDi module can double your network capacity and save your cable resources, for one strand is used to carry information in both directions. F-tone Networks manufactured 25GBASE-BX SFP28 transceiver module is compliant with SFP28 MSA, CPRI, and eCPRI standards. Besides, DDM (digital diagnostics monitoring) function is supported on the 25G fiber optic transceiver to achieve real-time operating parameters monitoring. This 25G SFP28 transceiver is fully compatible with almost all Cisco devices.

Model Name:

SFP-25GBX-U-10

Vendor Name:

F-tone Networks

Form Factor:

SFP28

Data Rate:

25Gbps

Wavelength:

1270nm-TX/1330nm-RX

Distance:

10km@OS2>

Connector:

LC Simplex

Cable Type:

OS2 SMF

Transmitter Type:

DFB BiDi

Receiver Type:

PIN

TX Power:

-5~2dBm

Receiver Sensitivity:

<-18dBm

Power Consumption:

<1.2W

Modulation Format:

NRZ

DDM:

Support

Bit Error Ratio (BER):

1E-12

Protocols:

SFP28 MSA, CPRI, eCPRI

Warranty:

5 Years



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
