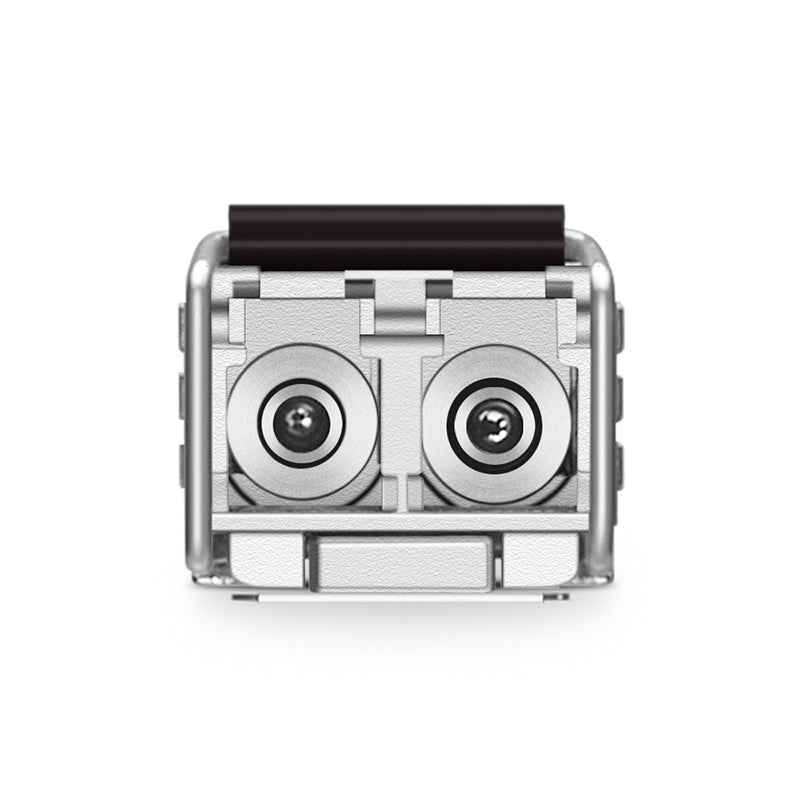

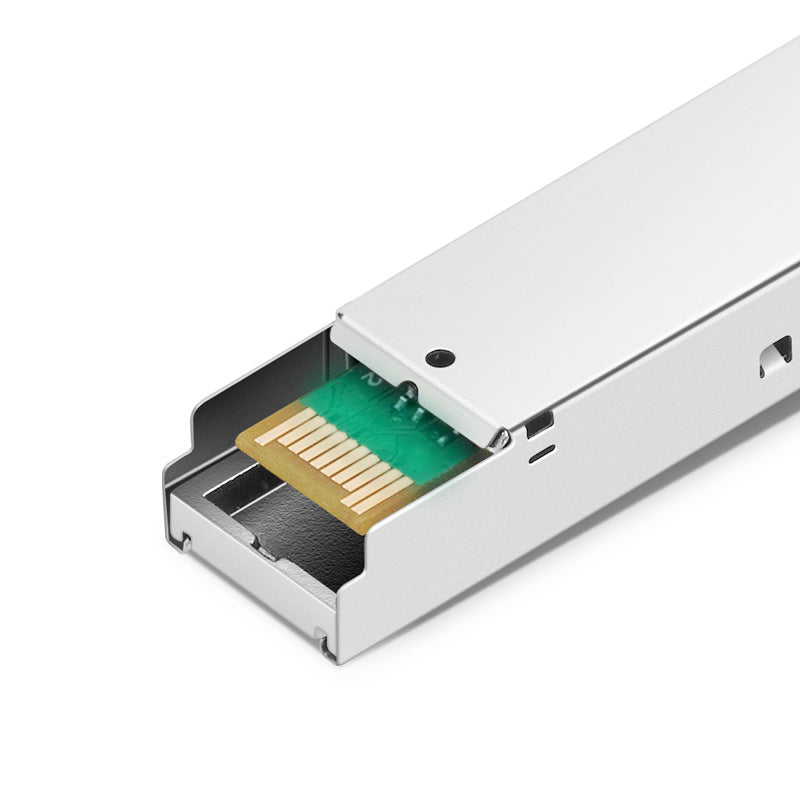

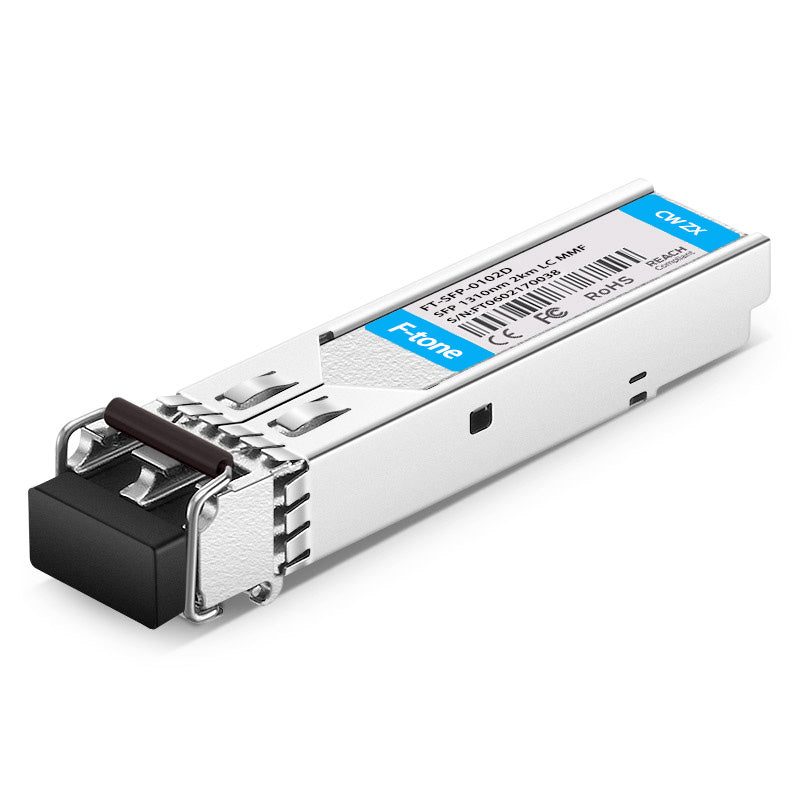

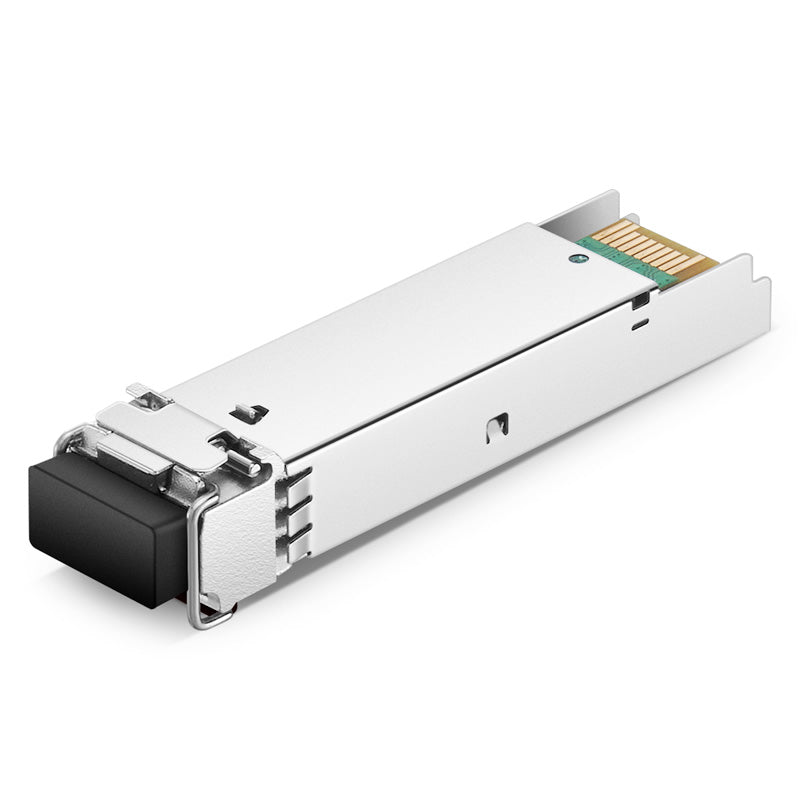

Cisco SFP-OC3-SR Compatible 155Mbps SFP Industrial Transceiver Module (SMF, 1310nm, 2km, LC, DOM)
The Cisco SFP-OC3-SR is a high-performance, small form factor pluggable (SFP) transceiver designed for short-range applications at speeds of 155Mbps, specifically for SONET OC-3 and SDH STM-1 networks. It fully adheres to the SFP Multi-Sourcing Agreement (MSA) and is compatible with networking equipment that follows MSA standards. This 155Mbps SFP transceiver comprises several key components: the LD driver, limiting amplifier, digital diagnostic monitor, FP laser, and PIN photo-detector. Furthermore, the SFP transceiver module falls under Class 1 laser product regulations, complying with FDA/CDRH and IEC-60825 standards. The SFP-OC3-SR transceiver has undergone rigorous testing to ensure compatibility with Cisco networking equipment, making it suitable for use in SONET/SDH (POS), optical networking, and ATM applications. It serves as a cost-effective alternative to the Cisco SFP-OC3-SR OC-3/STM-1 single-mode SFP optics module while delivering the same reliable performance. This makes it an excellent choice for system integrators, distributors, and end-users seeking compatible SFP optics transceiver solutions for their network infrastructure and fiber cabling needs.
| Part Number | FT-SFP-0102D IND | Vendor Name | F-tone |
| Form Factor | SFP | Data Rate | 155Mbps |
| Wavelength | 1310nm | Max Cable Distance | 2km |
| Connector | Duplex LC | Optical Components | FP 1310nm |
| Media | SMF | DOM Support | Yes |
| TX Power | -13~-8dBm | Receiver Sensitivity | <-30dBm |
| Transmitter Type | CWDM EML | Receiver Type | PIN |
| Industrial Temperature Range | -5 to 85°C (-23 to 185°F) | Protocols | IEC/EN 61000-4-2,IEC-60825, FDA 21CFR 1040.10 and 1040.11, RoHS |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series
HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series
-
AVAGO HFBR-2521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-2528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price
Power and Wavelength Testing
Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
