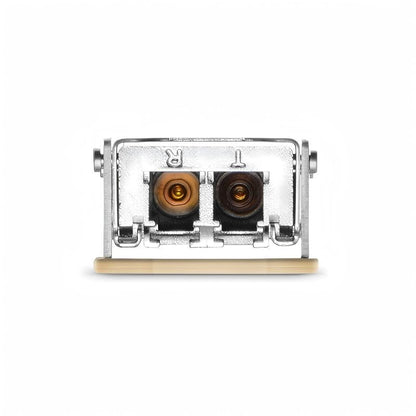

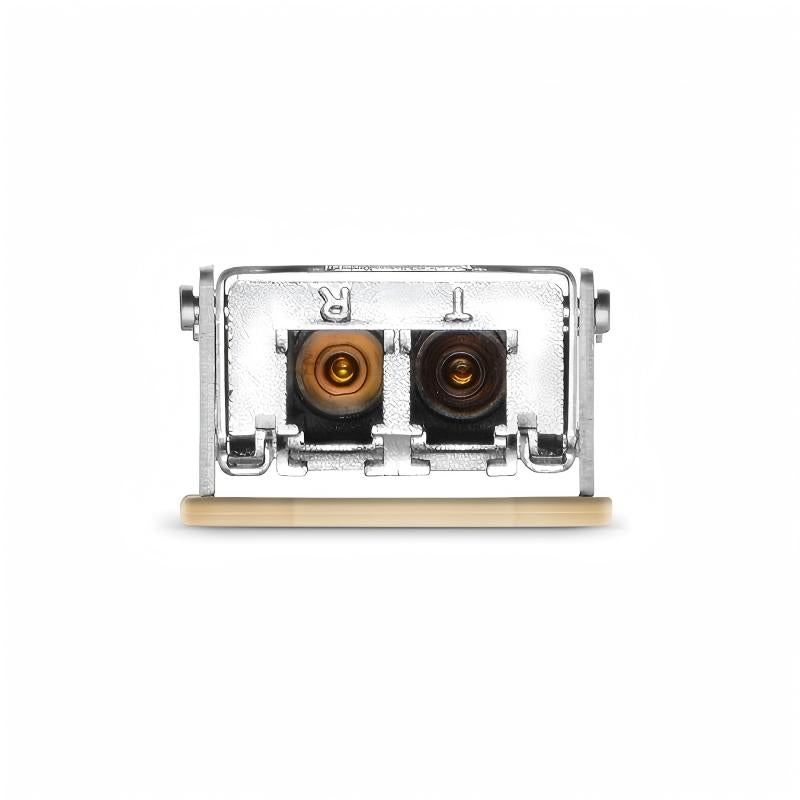

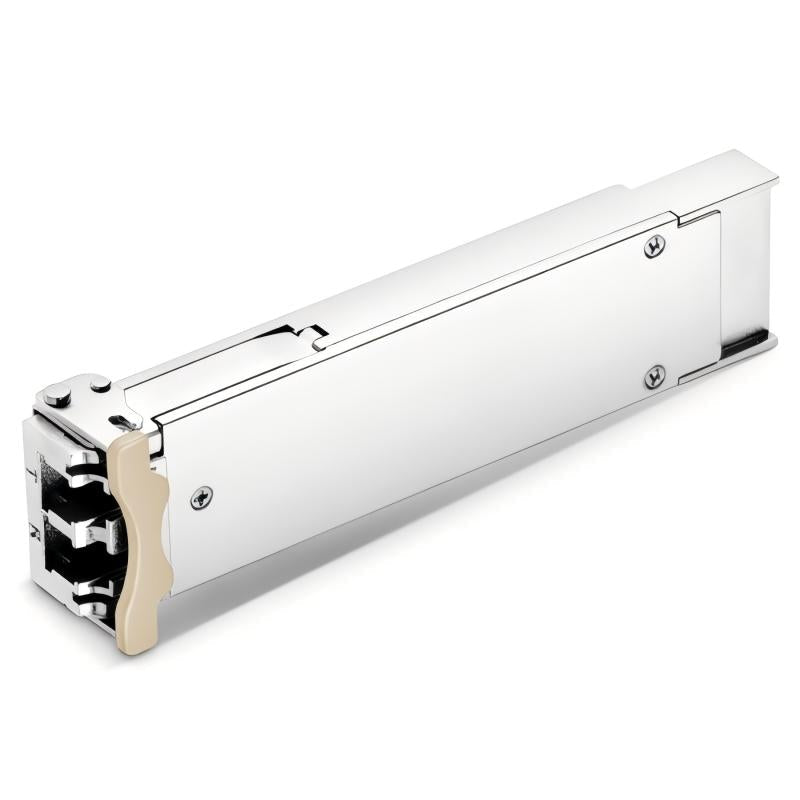

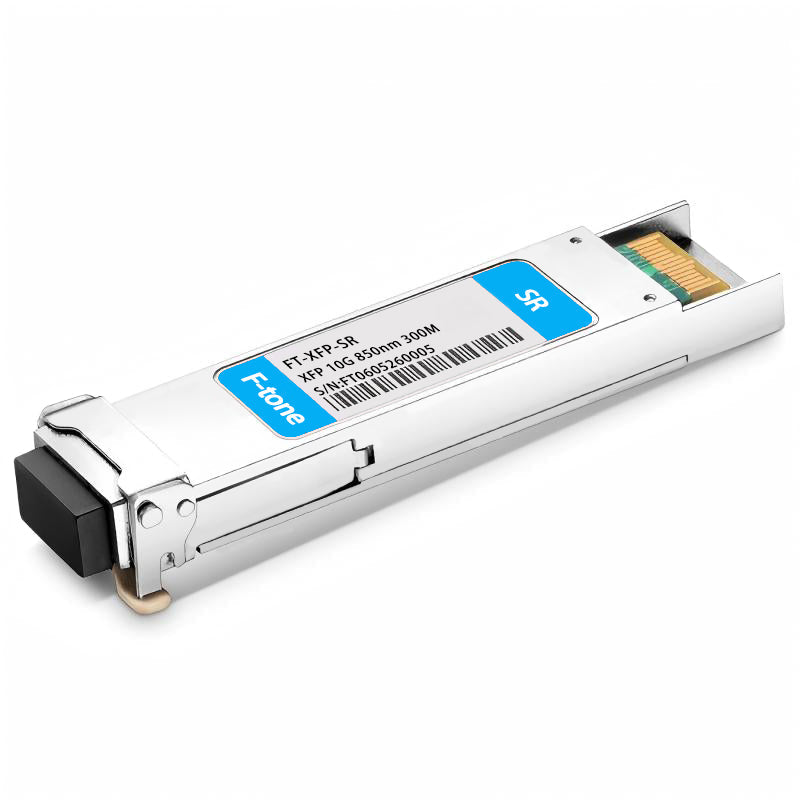

Cisco XFP-10G-MM-SR Compatible 10GBASE-SR XFP Transceiver Module (MMF, 850nm, 300m, LC, DDM)
The Cisco XFP-10G-MM-SR compatible optical transceiver is equipped with an LC duplex connector, reaching a link up to 300m over OM3/OM4. F-tone manufactured 10G XFP transceiver module is compliant with XFP MSA, CPRI, eCPRI. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. This 10G XFP transceiver caters to the data center, campus networks, the enterprise core layer, and distribution layer, etc.
| Model Name: | XFP-10G-MM-SR | Vendor Name: | F-tone |
| Form Factor: | XFP | Data Rate: | 10Gbps |
| Wavelength: | 850nm | Distance: | 300m@OM3 |
| Connector: | LC Duplex | Cable Type: | OM3/OM4 MMF |
| Transmitter Type: | VCSEL | Receiver Type: | PIN |
| TX Power: | -3.5~5.3dBm | Receiver Sensitivity: | <-13dBm |
| Power Consupumtion: | <1.5W | DDM: | Support |
| Protocols: | XFP MSA, INF-8077i, CPRI, eCPRI | Warranty: | 5 Years |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series
HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series
-
AVAGO HFBR-2521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-2528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price
Power and Wavelength Testing
Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
