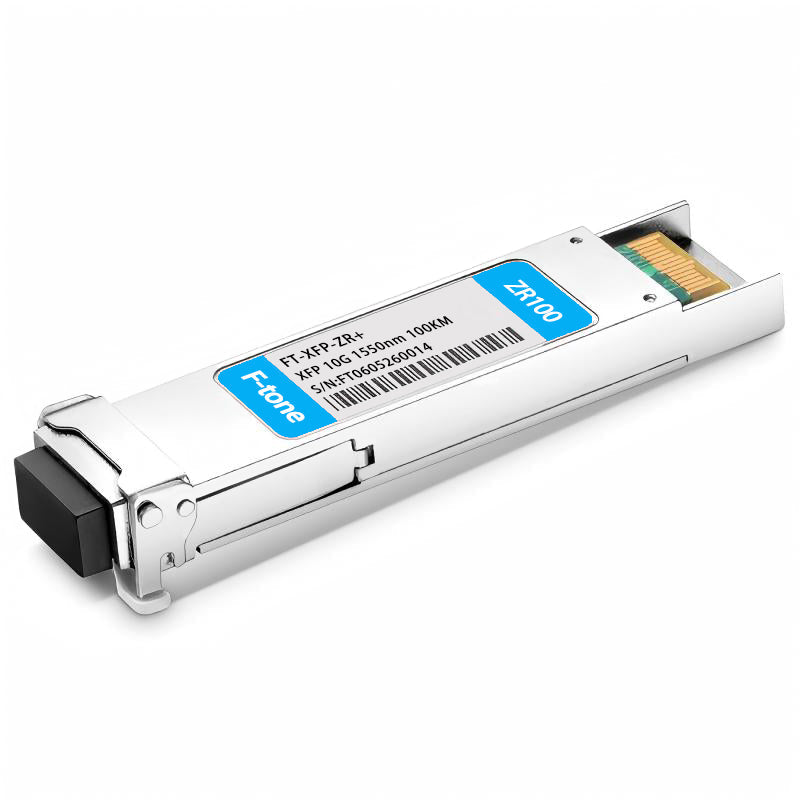

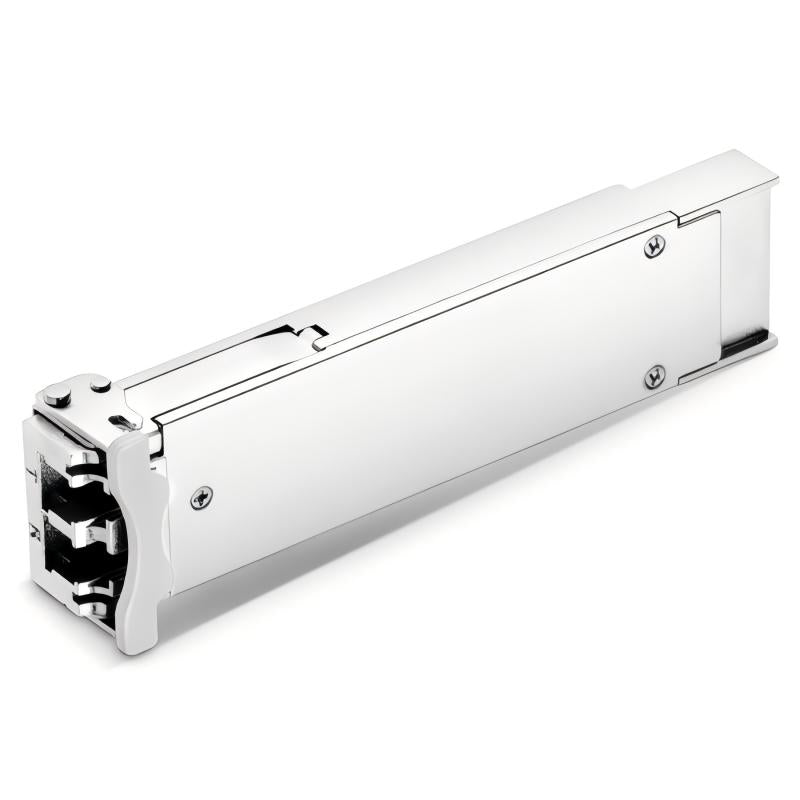

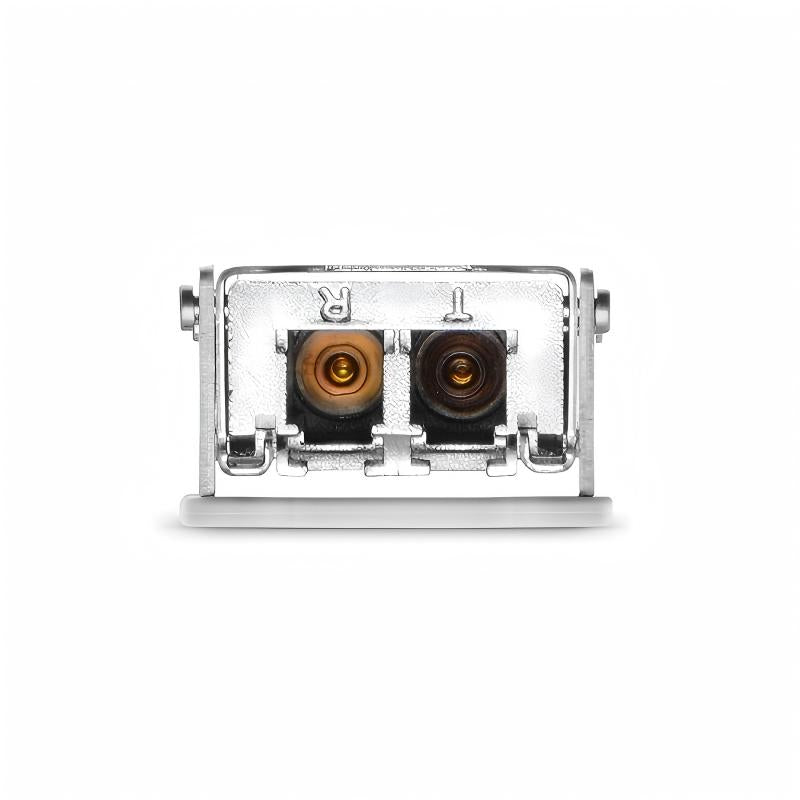

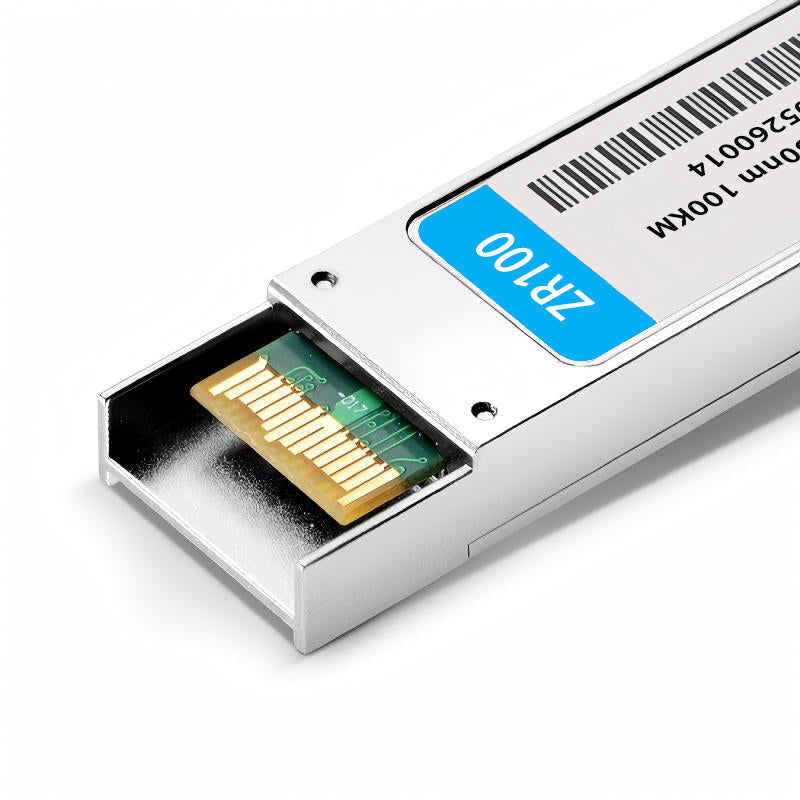

Cisco XFP-10G-SM-ZR100 Compatible 10GBASE-ZR XFP Transceiver Module (SMF, 1550nm,100km, LC, DDM)
The Cisco XFP-10G-SM-ZR100 compatible optical transceiver is equipped with an LC duplex connector, reaching a link up to 100km over OS2. F-tone manufactured 10G XFP transceiver module is compliant with XFP MSA, CPRI, eCPRI. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. This 10G XFP transceiver caters to long-haul or point-to-point network, etc.
| Model Name: | XFP-10G-SM-ZR100 | Vendor Name: | F-tone |
| Form Factor: | XFP | Data Rate: | 10Gbps |
| Wavelength: | 1550nm | Distance: | 100km@OS2 |
| Connector: | LC Duplex | Cable Type: | OS2 SMF |
| Transmitter Type: | EML | Receiver Type: | PIN |
| TX Power: | 0~5dBm | Receiver Sensitivity: | <-25dBm |
| Power Consumption: | <3.5W | DDM: | Support |
| Protocols: | XFP MSA, INF-8077i, CPRI, eCPRI | Warranty: | 5 Years |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
