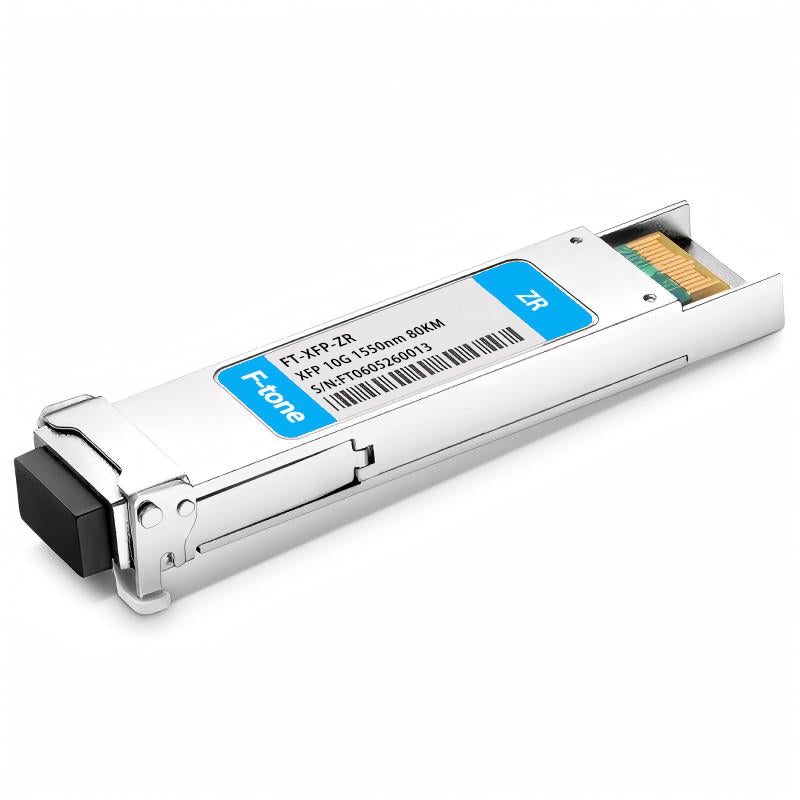

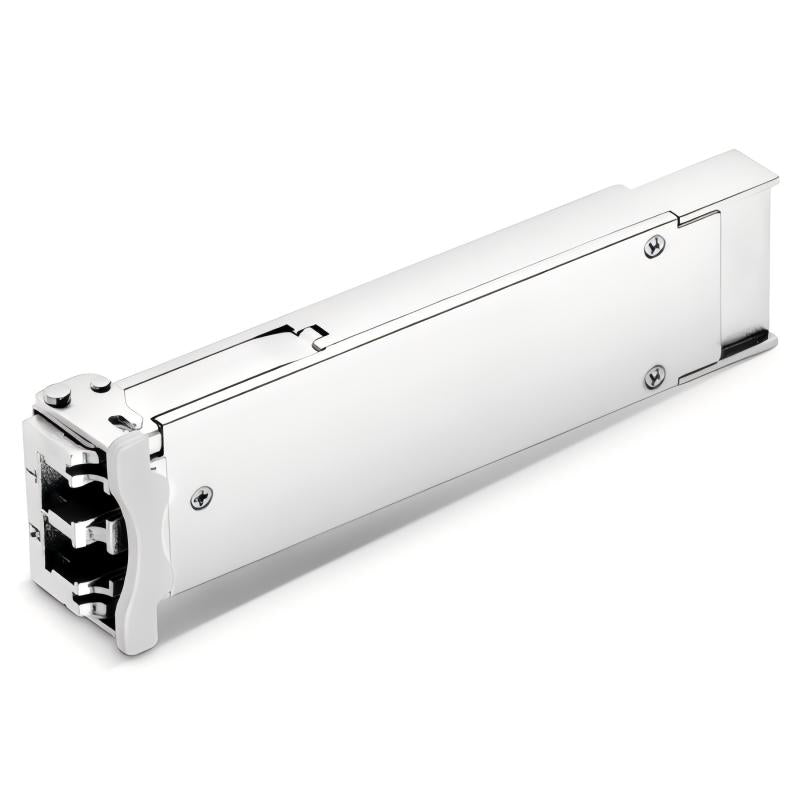

Cisco XFP-10GZR-OC192LR Compatible 10GBASE-ZR XFP Transceiver Module (SMF, 1550nm, 80km, LC, DDM)

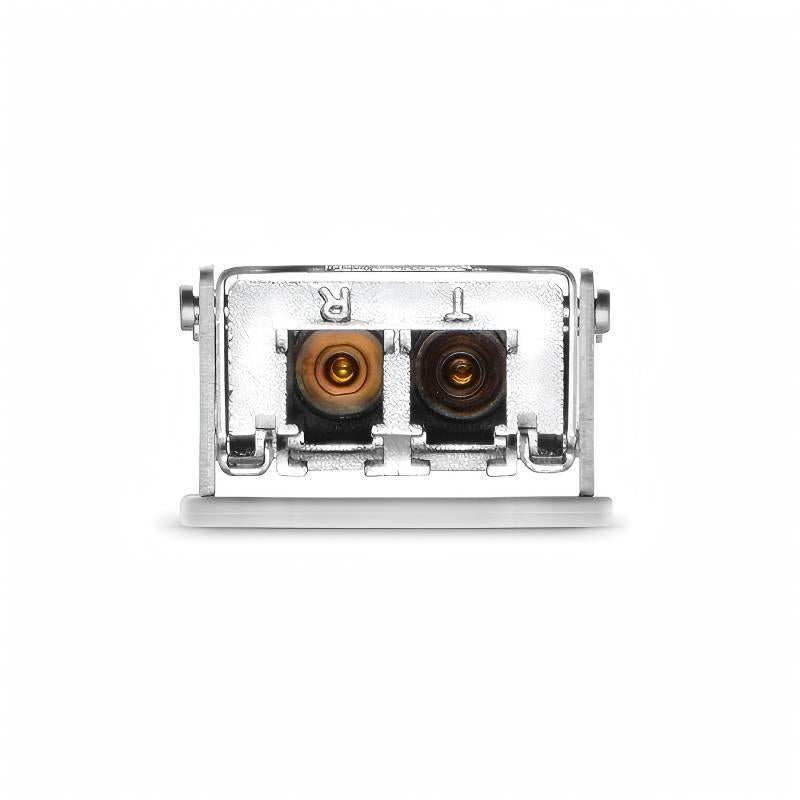

The Cisco XFP-10GZR-OC192LR compatible optical transceiver is equipped with an LC duplex connector, reaching a link up to 80km over OS2. F-tone manufactured 10G XFP transceiver module is compliant with XFP MSA, CPRI, eCPRI. Besides, DDM (digital diagnostics monitoring) function is supported on the 10G fiber optic transceiver to achieve real-time operating parameters monitoring. This 10G XFP transceiver caters to long-haul or point-to-point networks, etc.
| Model Name | XFP-10GZR-OC192LR | Vendor Name | F-tone |
| Form Factor | XFP | Data Rate | 10Gbps |
| Wavelength | 1550nm | Distance | 80km@OS2> |
| Connector | LC Duplex | Cable Type | OS2 SMF |
| Transmitter Type | EML | Receiver Type | PIN |
| TX Power | 0~4dBm | Receiver Sensitivity | <-24dBm |
| Power Consumption | <3.5W | DDM | Support |
| Protocols | XFP MSA, INF-8077i, CPRI, eCPRI | Warranty | 5 Years |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
