Part Number: CNW-12B1.1

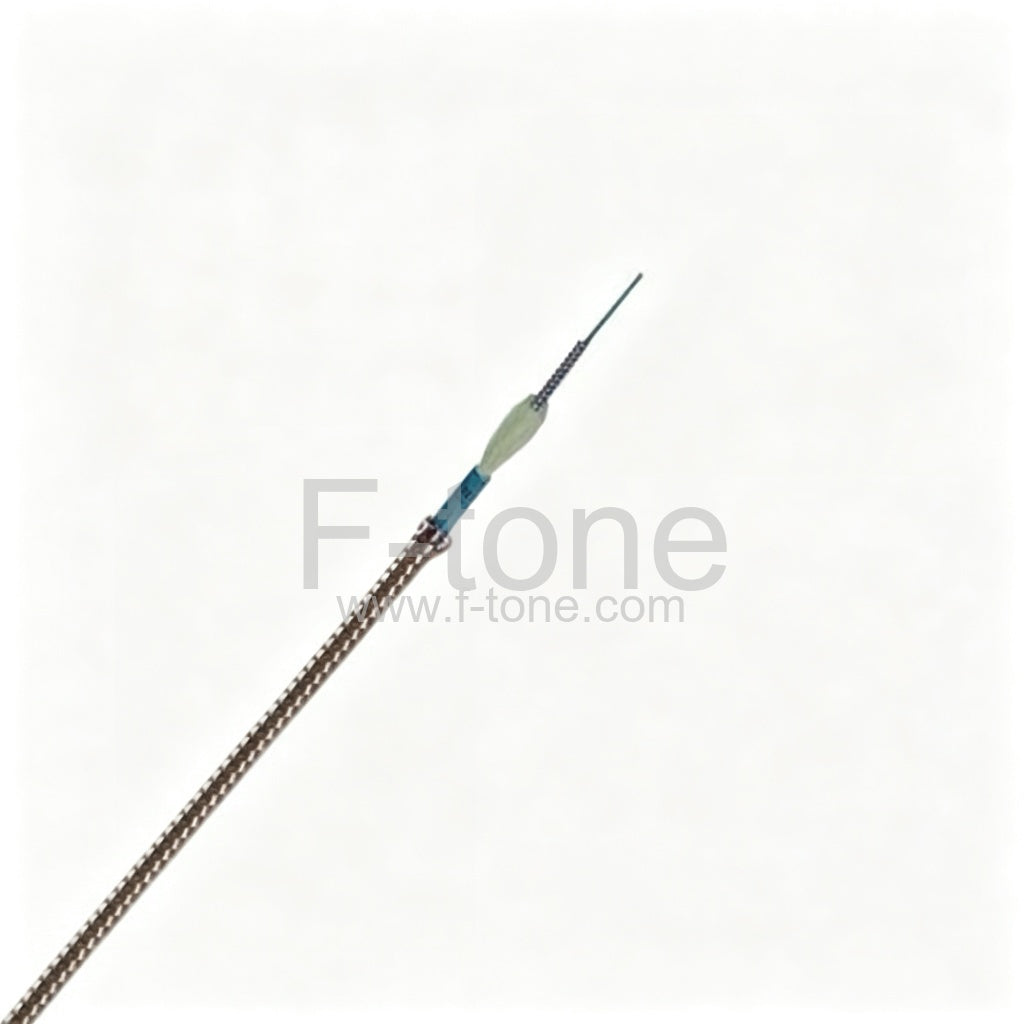

Copper Braid Flame Retardant Armored Sensor Optical Cable, 12 Fibers Single-mode
Copper braid armored sensor cable could be used in outdoor optical fiber communication and optical fiber sensor. In power environment, the special cable structure could reduce the impact of electromagnetic wave and electromagnetic field, and make less optical signal loss.
Item Details
- Fiber Count: 12 Fibers
- Fiber Type: Single-mode G.652D
Cable Structure
- It can prevent the external electromagnetic field on internal invasion, make its optical signal transmission losses.
- Has the function of preventing static electricity.
- High strength fiber optic cable tensile and compressive properties.
- Flame resistant performance.
- Used in power sensor transmission, can reduce electromagnetic wave
- For electrostatic protection have requirements of the use of the environment
- Used in outdoor optical fiber communication and optical fiber sensor
Package
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.
Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross /Net weight
3. Drum No: XX
4. Cable Length : XX
Cable production throughout the chart
Cable Structure
| Item | Unit | Type | Thickness |
|---|---|---|---|
| Fiber | mm | 0.60±0.05&or0.90±0.05 | |
| SpiralMetalArmored | mm | 1.70±0.10 | 0.25 |
| Kevlar | mm | 1.80±0.10 | |
| MetalBraid | mm | 2.10±0.10 | 0.07 |
| Jacket | mm | 3.50±0.10 | 0.7 |
| OuterWovenLayer | mm | 3.80±0.10 | 0.15 |
| Weight | kg/km | 25 |
Geometrical Characteristics
| Item | G652D | MM 50 | MM 62.5 |
|---|---|---|---|
| Core Diameter(µm) | 9.2±0.4 | 50±2.5 | 62.5±2.5 |
| Cladding Diameter (µm) | 124.8±0.7 | 124.8±0.1 | 124.8±0.1 |
| Cladding Non-circularity(%) | ≤0.7 | ≤1.0 | ≤1.0 |
| Core-cladding Concentricity Error (µm) | ≤0.5 | ≤1.5 | ≤1.5 |
| Coating Diameter(µm) | 245±5 | 245±7 | 245±7 |
| Coarting-cladding Concentricity Error (µm) | ≤12.0 | ≤12.0 | ≤12.0 |
Optical Characteristics
| Item | G652D | MM 50 | MM 62.5 | |||
|---|---|---|---|---|---|---|
| Zero Dispersion Wavelength(nm) | 1302-1322 | 1295-1320 | 1320-1365 | |||
| Zero Dispersion Slop [ps/(nm2.km)] | ≤0.090 | ≤0.101 | ≤0.097 | |||
| Ngroup Index Of Refraction | 1310nm | 1550nm | 850nm | 1300nm | 850nm | 1300nm |
| 1.467 | 1.4677 | 1.481 | 1.476 | 1.496 | 1.491 |
Cable Parameters
| Item | Unit | Singlemode | Multimode | |
| Fiber core/Modal Diameter | µm | 9.2±0.4 | 50.0±2.5 | 62.5±2.5 |
| Cladding Diameter | µm | 125.0±1.0 | 125.0±1.0 | 125.0±1.0 |
| Attenuation | dB/km | 0.4dB/km@1310nm | 3.5dB/km@850nm | 3.5dB/km@850nm |
| 0.3dB/km@1550nm | 1.5dB/km@1300nm | 1.5dB/km@1300nm | ||
| Temperature | ℃ | -20℃~+90℃ | ||
| Cable shape | mm | 3.8 ±0.10 | ||
| Cable weight | Kg/km | 25 | ||
| Allowable Bending Radius | mm | Dynamic 20D Static 10D | ||
| Allow Tension | N | Long-term 200 Short-term 400 | ||
| Crush | N | Long-term 3000 Short-term 5000 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
