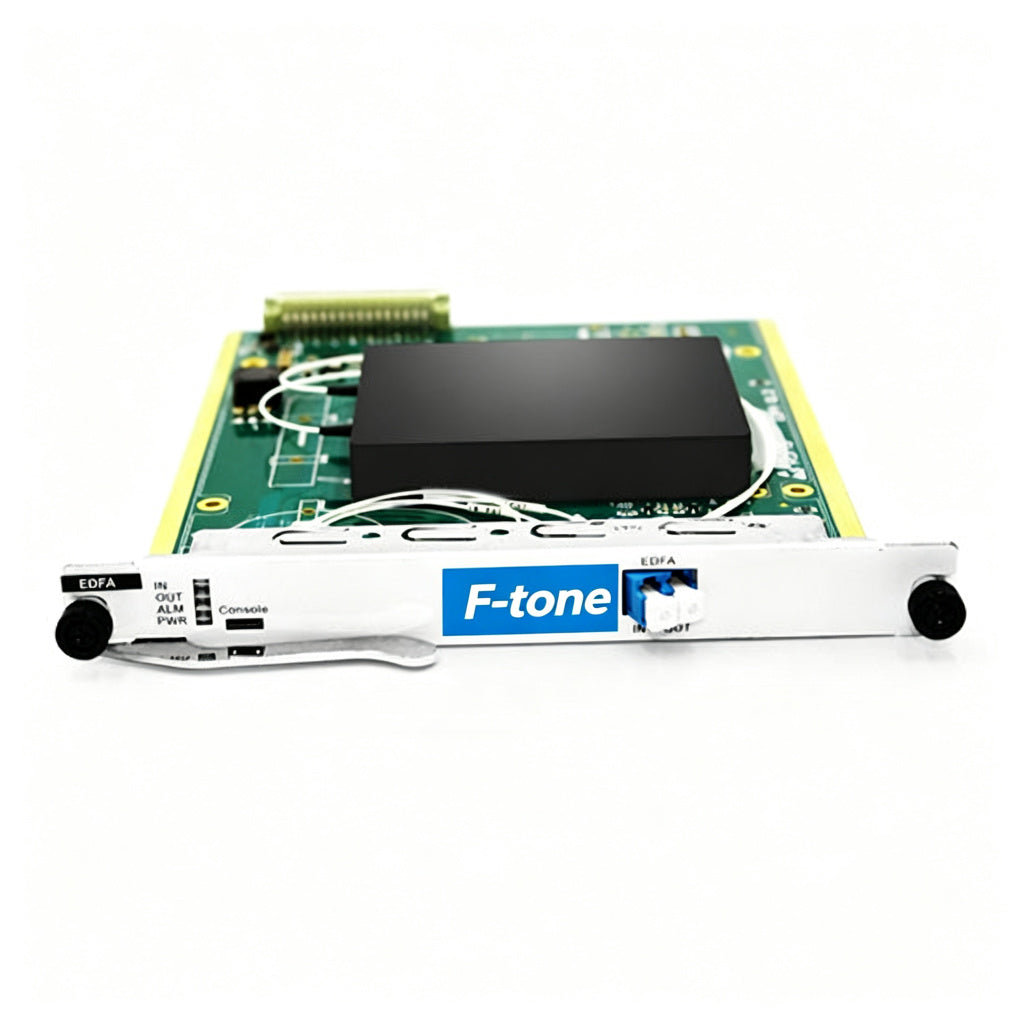

16dB Gain C-Band Pre-Amplifier Plug-in Card Type EDFA for SDH Networks

Part Number: CT-SDH-EDFA-PA-16

EDFA for SDH Networks 16dBm Gain Pre-Amplifier Plug-in Card Type

The 16dBm Gain C-Band Pre-Amplifier Plug-in Card Type EDFA is designed to plug into Multiplex Managed Chassis, allowing a long distance transmission. It delivers the reach and optical performances to support SDH system, to meet the requirements of service provider and enterprise networks. A unique ATC (automatic temperature control) and APC (automatic power control) circuit are employed in it as the key component to ensure the high stability and reliability of output power; The unique optical circuit design ensures the excellent optical character. In addition, the outstanding ventilation and heat-dissipation of the plug-in card type EDFA guarantee the long life and high reliable work of pump laser.

The plug-in type EDFA usually works with Multiplex Managed Chassis, which can insert more EDFA cards to access multiple signals, for example, 4 EDFA cards can be inserted into 1U Multiplex Managed Chassis and 16 EDFA cards can be inserted into 4U Multiplex Managed Chassis. The specific plug-in design provides flexibility and convenience for EDFA application, achieving space efficiency with compact size. What’s more, the plug-in card type EDFA supports SNMP Network management via Ethernet port and RS232, RS485 through the USB port.

Features

• Input power: –35～–25dBm
• Output power: 6dBm
• APC, AGC, ATC and ACC control modes
• Support RS232, RS485 (USB Port)
• Support SNMP Network management Via Ethernet port
• Low noise figure: typical is< 4.5dB
• Fully Customizable Design
• High stability and reliability
• Easy to maintain and replace reserve parts
• Space efficiency with compact size
• Cost efficiency with pluggable type
• Plug-in design, flexible and convenient
• Easy to get cooling and effectively prolong the working life.

Applications

• LANs and MANs
• SONET/SDH systems
• Optical distributed system
• Fiber optic link amplification
• Long-Haul transmitting system
• Test and measurement systems
• Military and industrial applications
• Rack mount optical amplify system
• Loss and Dispersion Compensation for Optical Fiber Networks

Compatible With EDFA Chassis

1U Multiplex Managed Chassis can be equipped with 4 EDFA cards and 4U Multiplex Managed Chassis can be equipped with 16 EDFA cards.

1U Multiplex Managed Chassis for Plug-in Card Type EDFA.



4U Multiplex Managed Chassis for Plug-in Card Type EDFA.

(1): Customer optional
(2): Pre-Amplifier: input power –35~-25dBm; Inline-Amplifier: input power –25~-10dBm, Booster: input power –10～+6dBm
(3): No condensation

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
