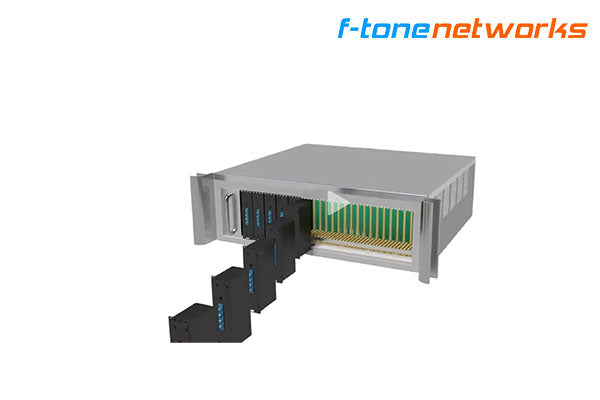

Customized board-based DVS module

Customized board-based DVS module

View full details

Customized board-based DVS module



Overview
The customized DVS module is suitable for customers with specific requirements for the chassis size. We can design the DVS module based on the chassis size provided by the customers. By integrating the optical path hardware of the distributed optical fiber vibration DVS system and the DVS acquisition card, and outputting signals through Gigabit Ethernet, the module is small in size and suitable for use in customized equipment such as fiber optic monitoring systems and optical cable locator instruments.

Characteristics
  • Customized requirements: Customized design based on the customer's chassis size.
  • High integration (UNL, AOM, EDFA, BPD, capture card)
  • Output of vibration data information via gigabit network interface
Application
  • Optical cable monitoring equipment
  • φ-OTDR system
  • DVS Distributed Vibration Monitoring
  • Optical cable locator, portable device
Performance parameters
Table 2-1 Performance Parameter Table
Category Parameter Min Typical Max Unit Remarks
Data Acquisition Card Sampling Rate 100 MSps
Data Acquisition Card Resolution 12 bits
Data Acquisition Card Analog Bandwidth 50 MHz
Data Acquisition Card Input Impedance 50 Ω
Data Acquisition Card Bias Voltage −1 1 V Adjustable
Data Acquisition Card SFDR 88 dBc
Data Acquisition Card Number of Channels 1 2
Data Acquisition Card Output Interface RJ45, Gigabit Ethernet
Data Acquisition Card IP Address 192.168.137.2
Data Acquisition Card Port 6002
Data Acquisition Card Transmission Protocol UDP
Data Acquisition Card Fiber Sensing Demodulation Algorithm Supported
DVS-A Integrated Module Power 17 18 23 W
DVS-A Integrated Module Operating Voltage 24 V DC
DVS-A Integrated Module Operating Temperature −20 60 ℃
DVS-A Integrated Module Storage Temperature −30 70 ℃
Module Parameters Measurement Distance 40 km
Module Parameters Pulse Width 50 500 ns
Module Parameters Warm-up Time <10 Min
Module Parameters Operating Voltage 4.8 5.2 5.2 V DC
Module Parameters Power 3.5 9 15 W
Module Parameters Operating Temperature −20 60 ℃
Module Parameters Storage Temperature −30 70 ℃
Module Parameters Communication Interface RS-232
Module Parameters Communication Protocol Modbus-RTU
Ultra-Narrow Linewidth Light Source Operating Wavelength 1530 1550 1570 nm
Ultra-Narrow Linewidth Light Source Output Power 10 13 dBm
Ultra-Narrow Linewidth Light Source Linewidth <3 kHz
Ultra-Narrow Linewidth Light Source Relative Intensity Noise <120 dB/Hz
Ultra-Narrow Linewidth Light Source Wavelength Drift ±1 pm
Ultra-Narrow Linewidth Light Source Power Stability ±2% Full temp. range
Ultra-Narrow Linewidth Light Source Side Mode Suppression Ratio 60 dB
Basic Optical Parameters Operating Wavelength Range 1550.12 nm
Basic Optical Parameters Input Peak Optical Power 10 dBm
Basic Optical Parameters Input Average Optical Power −35 −30 dBm
Basic Optical Parameters Output Peak Optical Power 23 dBm
Basic Optical Parameters Output Average Optical Power 0 dBm
Basic Optical Parameters Repetition Rate 100 kHz
Basic Optical Parameters Noise Figure 5.5 dB
Basic Optical Parameters Polarization Dependent Gain 0.5 dB
Basic Optical Parameters Polarization Mode Dispersion 0.5 ps
Acousto-Optic Modulator Operating Wavelength Range 1520 1550 1580 nm
Acousto-Optic Modulator Average Optical Power 0.5 W
Acousto-Optic Modulator Max Pulse Optical Power 0.5 kW
Acousto-Optic Modulator Insertion Loss 2.5 3 dB
Acousto-Optic Modulator Extinction Ratio 50 dB
Acousto-Optic Modulator Rise/Fall Time 30 ns
Acousto-Optic Modulator Frequency 80 MHz
Acousto-Optic Modulator VSWR 1.2:1
Acousto-Optic Modulator Input Impedance 50 Ω
Acousto-Optic Modulator RF Power 2.5 W
Acousto-Optic Modulator Frequency Shift 80 MHz
Balanced Detector Bandwidth 80 MHz
Balanced Detector Gain 80 kV/A
Balanced Detector NEP 30 pW/Sqrt(Hz)


Customized example
Mechanical dimension drawing

The following is the dimension drawing of the integrated module. The overall size of the module is 190*150*33mm. It does not include connectors and optical fibers. To ensure the heat dissipation performance of the module, a good ventilation environment should be ensured when installing the module. For the optical fiber flange and coaxial connector, please use the corresponding protective caps when not in use to prevent the connectors from getting dirty.

Professor Wu from F-tone Networks was selected as one of the top 2% global scientists for four consecutive years from 2022 to 2025 (https://elsevier.digitalcommonsdata.com/datasets/btchxktzyw/6)

F-tone Networks Technical Support:

Email:una@f-tone.com

WhatsApp and WeChat: +86177 6116 3895

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
