Part Number: CWDM-SFP25G-10SP-1330

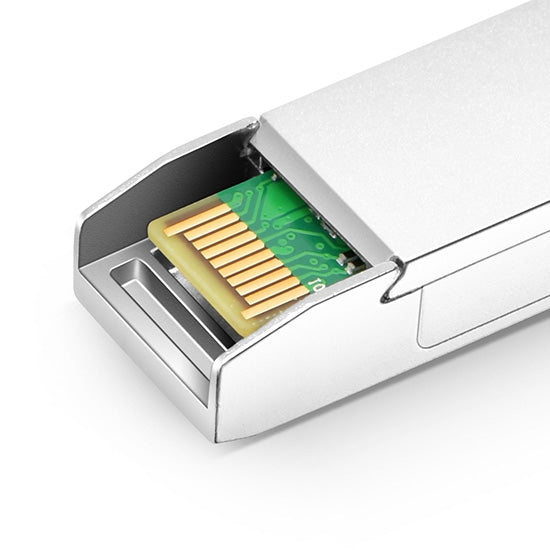

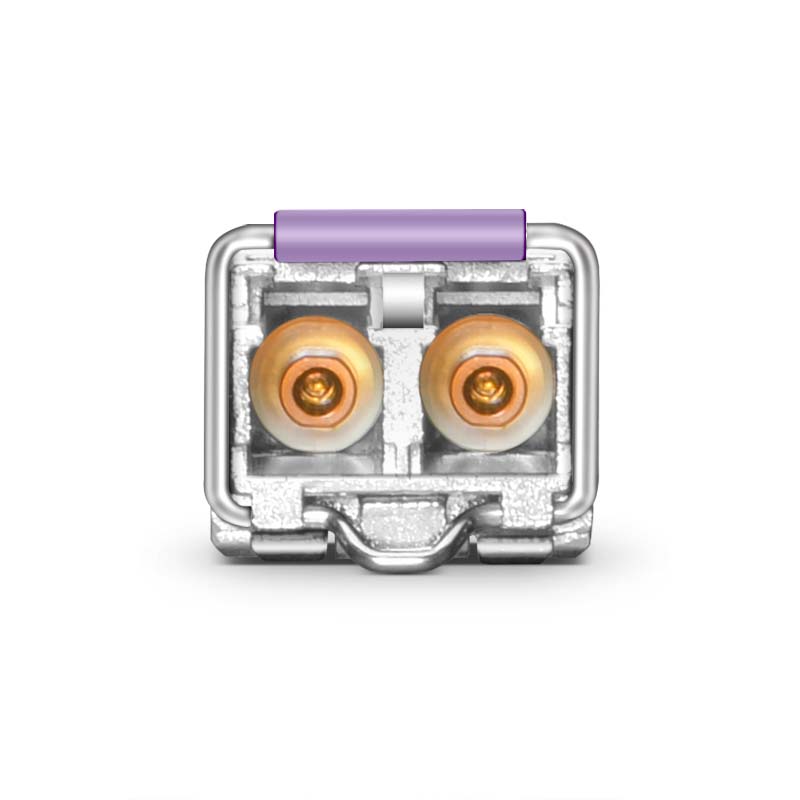

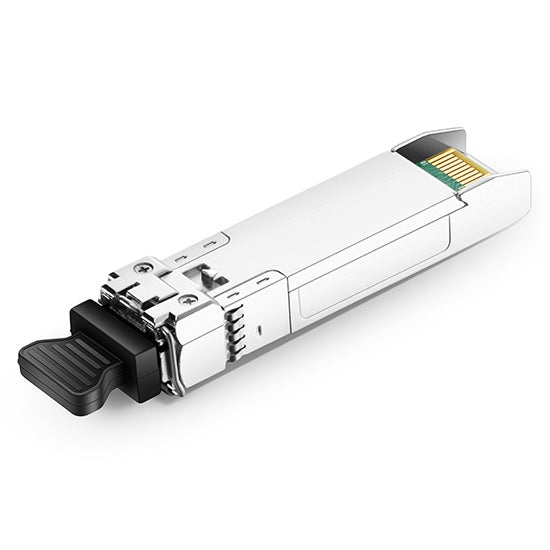

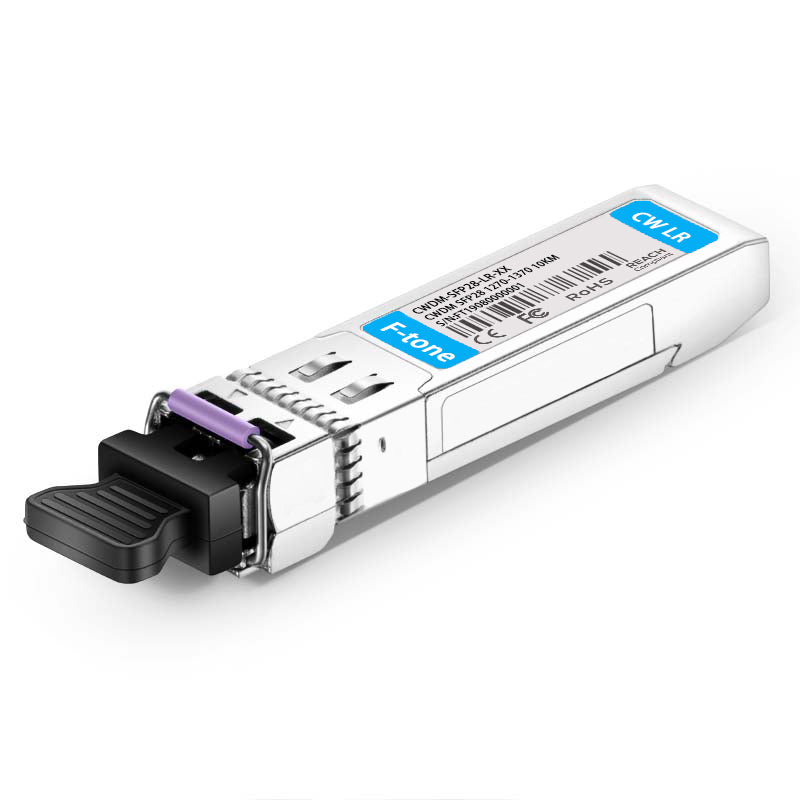

Cisco Compatible 25G CWDM SFP28 DOM Transceiver Module(SMF, 1330nm, 10km, LC, DOM)
Product Details
| Cisco Compatible | CWDM-SFP25G-10SP | Vendor Name | F-tone |
|---|---|---|---|
| Form Type | SFP28 | Max Data Rate | 25Gbps |
| Wavelength | 1330nm | Max Cable Distance | 10km |
| Interface | LC duplex | Optical Components | DFB 1330nm |
| Cable Type | SMF | DOM Support | Yes |
| TX Power | -7~3dBm | Receiver Sensitivity | <-11.3dBm |
| Protocols | MSA Compliant | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Datasheet
| Part Number | Distance | Fibers | Port |
|---|---|---|---|
| SFP-25G-SR-SFM | 100m | MMF | LC Duplex |
| SFP28-25GLR-31FM | 10km | SMF | LC Duplex |
| SFP28-25G-BXFM | 10km | SMF | LC Simplex |
| SFP28-25G-BXFMI | 10km | SMF | LC Simplex |
| CWDM-SFP25G-40SFM | 40km | SMF | LC Duplex |
Quality Certification
Lifetime Warranty
All the fiber optic products in F-tone are fully warranted against defects in material and workmanship with a lifetime guarantee. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series
HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series
-
HFBR-1531Z,HFBR-2531Z,HFBR-1531Z 100% Compatible with Avago ,HFBR-2531Z 100% Compatible with Avago
Regular price $0.00Regular price -
AVAGO HFBR-2521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price
Power and Wavelength Testing
Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
