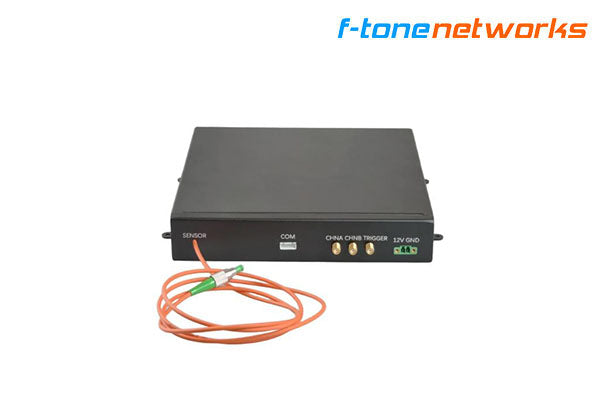

DTS Integrated Optical Path Module
| Parameter | Unit | Min | Typical | Max | Remark |
|---|---|---|---|---|---|
| Measurement Distance | km | — | 10 | — | |
| Central Wavelength | nm | — | 1550.12 | — | |
| Spectral Width (30dB) | nm | — | 0.3 | 1 | |
| Output Peak Optical Power | W | — | 30 | — | |
| Repetition Frequency | kHz | 5 | — | 20 | |
| Pulse Width | ns | 5 | — | 120 | |
| Trigger Mode | — | — | Laser external trigger | — | Self‑developed acquisition card needs to receive trigger pulse signal |
| Operating Temperature | ℃ | -10 | — | 50 | |
| Storage Temperature | ℃ | -40 | — | 70 | |
| Power Consumption | W | — | 14 | 20 | |
| Operating Voltage | V | 9 | 12 | 13 | |
| Pigtail Fiber Type | / | 62.5/125 multimode fiber, FC/APC connector | — | — | |
| Pigtail Fiber Length | m | ≥1 | — | — |
Mechanical dimension drawing
Interface Definition
| No. | Name | Interface Type | Function Description |
|---|---|---|---|
| 1 | 12V | WJ15EDGRM‑3.81‑2P | Power input port, 12VDC 2A |
| 2 | GND | WJ15EDGRM‑3.81‑2P | Power input port, GND |
| 3 | CHNA | SMA Female | 1450nm electrical signal output interface |
| 4 | CHNB | SMA Female | 1660nm electrical signal output interface |
| 5 | TRIGGER | SMA Female | Modulation signal output interface: 5V square wave |
| 6 | COM | XH2.54‑4P | Pulsed laser debug interface |
| 7 | SENSOR | FC/APC | 62.5/125 multimode fiber |
Communication Protocol
For COM port communication protocol and message content, please refer to the nanosecond pulsed laser module specification.
