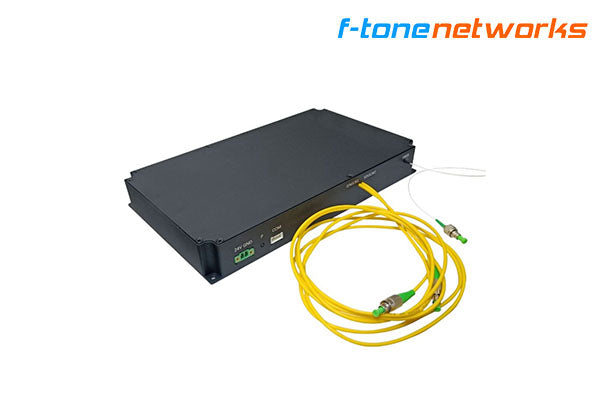

DTS optical path module

Overview
FT-VC-DTS-MC is the optical module of the distributed optical fiber temperature measurement DTS system. This module integrates a pulsed laser, a wavelength division multiplexer, and an avalanche detector, etc. It features a small size, high detection accuracy, and excellent consistency. It can be used for distributed optical fiber temperature measurement and is applied in fields such as power, pipeline monitoring, urban integrated tunnels, warehousing, military industry, and nuclear industry. It is suitable for scenarios where DTS research and development manufacturers combine it with their own acquisition cards.

Characteristics
  • High integration (laser, APD, WDM)
  • 2-channel Stoss/anti-Stoss optical analog voltage signal output
  • High reliability
  • Customizable design of external structure
Application
  • DTS Distributed Optical Fiber Temperature Measurement System
Specification parameters
Parameter Unit Min Typ Max Remarks
Measurement distance km — 10 — Without acquisition card
Center wavelength nm — 1550.12 —
Spectral width (20 dB) nm — 0.3 1
Output peak optical power W — 30 —
Repetition rate kHz 5 — 20
Pulse width ns 5 — 120
Operating temperature ℃ -10 — 50
Storage temperature ℃ -40 — 70
Power consumption W — 14 20
Operating voltage V 9 12 13
Fiber type / — 62.5/125 multimode fiber, FC/APC connector —
Fiber output length m ≥1 — —


Mechanical dimension drawing


interface definition
No. Name Interface Type Function Description
1 12V WJ15EDGRM-3.81-2P Power input port, 12VDC 2A
2 GND WJ15EDGRM-3.81-2P Power input port, GND
3 CHNA SMA (female) 1450 nm electrical signal output interface
4 CHNB SMA (female) 1660 nm electrical signal output interface
5 TRIGGER SMA (female) Modulation signal output interface: 5V square wave
6 COM XH2.54-4P Pulsed laser debugging interface
7 SENSOR FC/APC 62.5/125 multimode fiber
Communication protocol
For COM port communication protocol and communication content, please refer to the specification sheet of the nanosecond pulse laser module.

Delivery list
Name Qty
FT-VC-DTS-MC Module 1
Power adapter 12V/2A 1
Power connector 1
USB to TTL serial cable 1
Specification sheet 1
Test report 1
Certificate of Conformity 1
FT-VC-DAS Series Module Selection Table
Model Type Channels Monitoring Distance IF Laser Features
FT-VC-DAS-V4-40-1-A80 Standard single-channel 1 ≤40 km 80M <3 kHz Cost-effective
FT-VC-DAS-V4-40-2-A80 Standard single-channel 2 ≤40 km 80M <3 kHz Cost-effective
FT-VC-DAS-V4-40-1-A200 Standard single-channel 1 ≤40 km 200M <3 kHz Adjustable high spatial resolution
FT-VC-DAS-V4-40-2-A200 Standard single-channel 2 ≤40 km 200M <3 kHz Adjustable high spatial resolution
FT-VC-DAS-V4-40-1-A80-1k Standard single-channel 1 ≤40 km 80M <1 kHz High-performance light source
FT-VC-DAS-V4-40-1-A200-1k Standard single-channel 1 ≤40 km 200M <1 kHz High-performance light source
FT-VC-DAS-V4-60-1-A80 Standard single-channel 1 ≤60 km 80M <3 kHz Long monitoring distance
FT-VC-DAS-V4-60-2-A80 Standard single-channel 2 ≤60 km 80M <3 kHz Long monitoring distance
FT-VC-DAS-V4-60-1-A200 Standard single-channel 1 ≤60 km 200M <3 kHz Balanced spatial resolution and distance
FT-VC-DAS-V4-60-2-A200 Standard single-channel 2 ≤60 km 200M <3 kHz Balanced spatial resolution and distance
FT-VC-DAS-UNP-40-1-80M-PM Polarization diversity 1 ≤40 km 80M <3 kHz Eliminates polarization fading
FT-VC-DAS-UNP-40-1-200M-PM Polarization diversity 1 ≤40 km 200M <3 kHz Eliminates polarization fading
FT-VC-DAS-UNP-40-1-80M Narrow pulse 1 ≤40 km 80M <3 kHz Narrow-pulse module
FT-VC-DAS-UNP-40-2-80M Narrow pulse 2 ≤40 km 80M <3 kHz Narrow-pulse module
FT-VC-DAS-UNP-40-1-200M Narrow pulse 1 ≤40 km 200M <3 kHz Narrow-pulse module
FT-VC-DAS-UNP-40-2-200M Narrow pulse 2 ≤40 km 200M <3 kHz Narrow-pulse module
FT-VC-DAS-RF-1-1-40-80 Full clock synchronization 1 ≤40 km 80M <1 kHz Purer signal
FT-VC-DAS-RF-2-1-40-80 Full clock synchronization 2 ≤40 km 80M <1 kHz Purer signal
FT-VC-DAS-RF-1-3-40-80 Full clock synchronization 1 ≤40 km 80M <3 kHz Purer signal
FT-VC-DAS-RF-2-3-40-80 Full clock synchronization 2 ≤40 km 80M <3 kHz Purer signal
FT-VC-DAS-RF-1-1-40-200 Full clock synchronization 1 ≤40 km 200M <1 kHz Purer signal
FT-VC-DAS-RF-2-1-40-200 Full clock synchronization 2 ≤40 km 200M <1 kHz Purer signal
FT-VC-DAS-RF-1-3-40-200 Full clock synchronization 1 ≤40 km 200M <3 kHz Purer signal
FT-VC-DAS-RF-2-3-40-200 Full clock synchronization 2 ≤40 km 200M <3 kHz Purer signal
FT-VC-DAS-CFS-40-250-1 Fully integrated 1 ≤40 km 80M <3 kHz DAS optical path + acquisition card + compact
FT-VC-DAS-CFS-40-250-2 Fully integrated 2 ≤40 km 80M <3 kHz Fully integrated, 2 channels
FT-VC-DAS-CFS-60-250-1 Fully integrated 1 ≤60 km 80M <3 kHz Long distance
FT-VC-DAS-CFS-60-250-2 Fully integrated 2 ≤60 km 80M <3 kHz Long distance



Acquisition Card Selection Table

Model Sampling Rate Channels Interface Type Core Features Typical Applications
FT-VC-DAQ-2480 250M 2 PCIe x8 Cost-effective choice for high-speed DAS acquisition Distributed acoustic sensing (DAS)
FT-VC-DAQ-2480-E 250M 2 Gigabit Ethernet (RJ45) Cost-effective choice for high-speed DAS acquisition DAS, wind-measuring radar
FT-VC-DAQ-2480-OE 250M 2 10G optical port (SFP+ 10G) Optical transmission, edge deployment Distributed acoustic sensing (DAS)
FT-VC-DAQ-2510D 1G 2 PCIe x8 Hardware IQ demodulation, high resolution High-precision DAS system
FT-VC-DAQA-2510 1G 2 PCIe x8 Integrated AWG swept-frequency source, all-in-one solution Chirped DAS system, radar, OCT, high-precision swept-frequency fiber sensing system
FT-VC-DTS-ETH-250M-2 250M 2 Gigabit Ethernet (RJ45) DTS temperature measurement–dedicated, low-noise design Distributed temperature sensing (DTS), meteorological radar
FT-VC-DVS-ETH-100M-2 100M 2 Gigabit Ethernet (RJ45) DVS acquisition card with integrated averaging and differential algorithms Distributed fiber vibration sensing (DVS)
