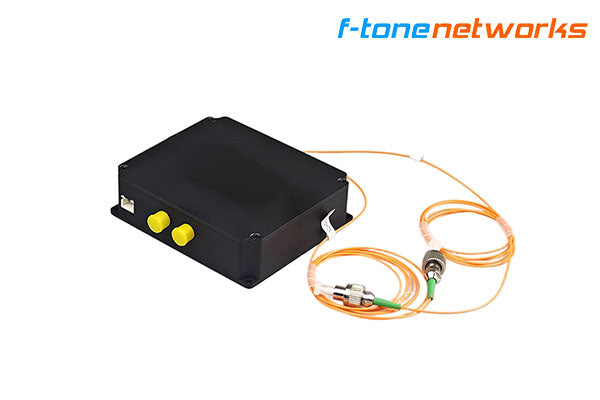

DTS-specific dual-channel APD photoelectric converter
| Item | FT‑VC‑DTS‑APD‑150M |
|---|---|
| Model | FT‑VC‑DTS‑APD‑150M |
| Material | InGaAs |
| Wavelength Range | 1000‑1700 nm |
| Input Interface | Multimode fiber with FC/APC connector |
| Responsivity @M=1 | 0.9 A/W @1550 nm |
| Bandwidth b | DC‑150 MHz |
| Rise Time b | 2.5 ns |
| Gain a | 3.2×10⁷ V/W |
| Saturation Optical Power | 108 nW |
| Noise‑Equivalent Power | 0.28 pW/√Hz |
| Maximum Output Amplitude a | 4 V |
| Operating Voltage | 9‑12 V |
| Operating Current | <500 mA |
| Output Impedance | 50 Ω |
| Output Coupling Mode | DC |
| Output Connector | SMA female |
| Operating Temperature | -10~65 ℃ |
| Storage Temperature | -40~85 ℃ |
Professor Wu from F-tone Networks was selected as one of the top 2% global scientists for four consecutive years from 2022 to 2025 (https://elsevier.digitalcommonsdata.com/datasets/btchxktzyw/6)
F-tone Networks Technical Support:
Email:una@f-tone.com
WhatsApp and WeChat: +86177 6116 3895
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
