19dBm Output C-band 40 Channels Booster EDFA for DWDM Networks

Part Number: DWDM-EDFA-BA-O19

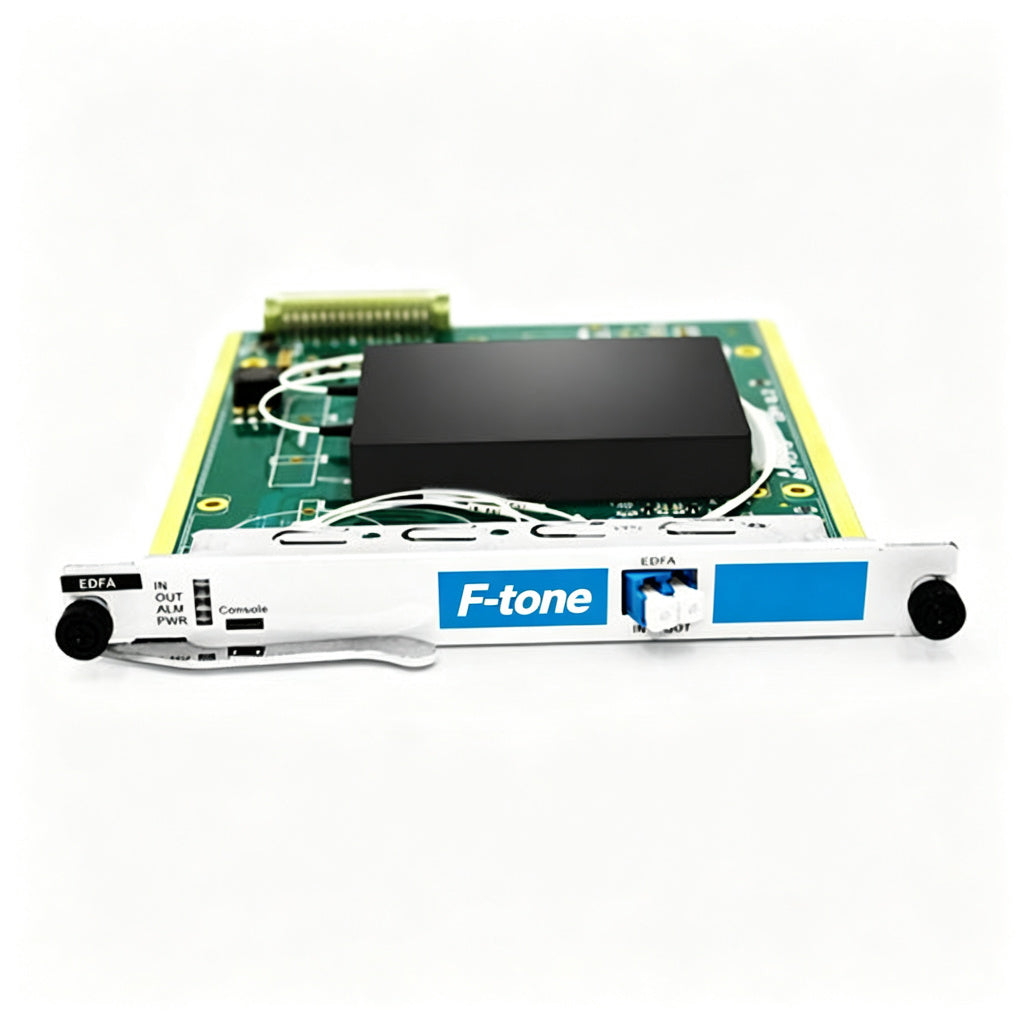

DWDM EDFA 40 channels Booster Optical Amplifier DWDM-EDFA-BA-O19

The DWDM-EDFA-BA-O19 booster amplifier is an easy-to-use and cost-efficient solution for DWMD fiber optic link amplification which operates at the transmission side of the link. It is designed to amplify aggregated optic input power for reach extension. Using dual-stage pump laser design and internal Gain Flattening Filter (GFF) to compensate the erbium fiber gain variation, it features high input power, low noise, and up to output power:19dBm. Software control is standard via an RS-232 interface for status monitoring and pump current adjustments.

Features

• Booster Amplifier, carries whole C-Band 1528nm ~ 1561nm of 40 channel on metro DWDM distance extension or single wavelength distance extension application
• 100GHz channel spacing
• input power:-10~+6dBm
• output power:19dBm
• Low Noise Figure: Typical 4.5dB
• High Flatness: Typical 1dB
• 19” 1RU rack enclosure
• SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC , ST/UPC and ST/APC connectors are available
• Single or dual 110VAC, 220VAC, 100~240VAC and/or -48VDC power supply
• Reliable 980nm and 1480nm pump lasers
• 10 years of operation life
• 3 years warranty standard
• Compatible with Telecordia GR-1312-CORE
• OEM is available

Highlights

• Perfect Network Interface: Ethernet, RS-485 and RS-232 port
• Support Telnet for optional
• APC (automatic power control) circuit for booster
• GFF (gain flattening filters) assures a flat gain response across the entire C-band and input power range
• Provides automatic power shutdown when aggregate input falls below the threshold
• Employ the intelligent temperature control system, the fan is on when the module temperature over 45℃, meanwhile it will stop as the temperature is under 40℃, which makes sure the thermal stability and fan’s long life-time, meanwhile, the professional air flow design can also ensure the best temperature stability
• SNMP network management is to provide a graphical user interface (GUI) to control the modules in realistic windows that model the devices

Structure Example

NOTE:

• The DWDM EDFA from F-tone including 1+2+3.

Mechanical Structure

Picture Details

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
