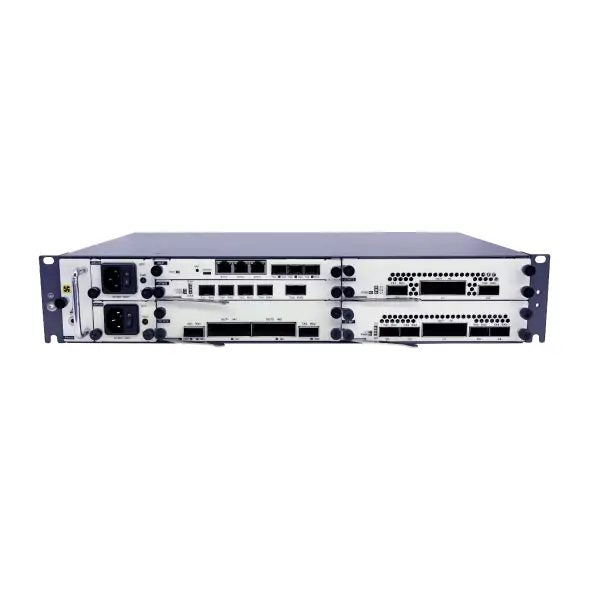

400G DWDM Network Platform FT8600 II 2U

400G DWDM Network Platform FT8600 II 2U

View full details

Part Number: DWDM8600-II-2U

DWDM Platform: FT8600 II 2U

Product view

400G DWDM Network Platform FT8600 II 2U Datasheet

Product features

Standard 2U rackmount design, fully front panel wiring, with 7 pluggable service card slots, 1 network management card or
service card slot, 1 fan slot and 2 power supply slots
Support all types of service WDM from 100 Mbit/s to 400Gbit/s rate to meet the requirements of multi-service access
Support CWDM and DWDM, coarse and dense wave are common cards
Support single-fiber unidirectional, single-fiber bidirectional and dual-fiber bidirectional application scenarios
Support unified network management interface, which can provide perfect network and performance monitoring capability
Support 110V/220V AC, -48V DC power supply, 1+1 power input protection
Support configuration-free installation, equipment plug-and-play
Adopt green energy-saving design, typical configuration power consumption 160W

Product specifications

ParameterDescription Product model
FT8600 II
Equipment size
2U: 88 mm (H)×442 mm (W)×220 mm (D)
Service slots
8 Slots (with 1 slot for optional network management card)
Mounting method
19’’ Standard cabinet installation
Operating temperature range
-5℃～50℃(Typical)
Operating humidity range
5~95% No condensation
Storage temperature range
-40℃～85℃
Heat dissipation
Front 1 fan single board slot, support hot-swap
Power supply mode
Front 2 power supply single board slots, support AC 110V/220V or DC -48 V
power supply single board optional, 1+1 hot backup
Power consumption
160W (Full power consumption max.)

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
