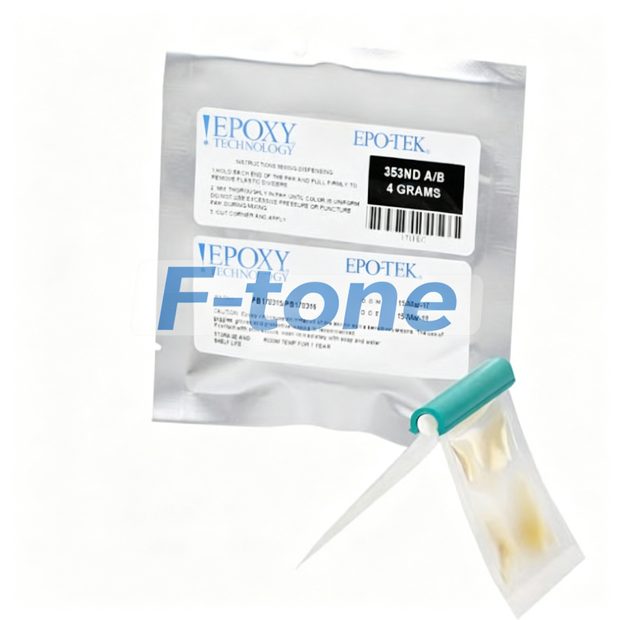

EPO-TEK 353ND AB Epoxy Glue 4g/pack

Part Number: EPO-TEK-353ND-4

Epoxy 353ND EPO-TEK AB Glue 353ND, 4 Gram

This item comes in a 4G/pack with a shelf life of 1 year when stored at room temperature. Refrigeration is not required.

Epo-Tek 353ND is a two component, heat curing epoxy designed for high temperature applications. It becomes a favorite epoxy of many fiber optic users.

353ND will perform continuously at 20°C and can endure 300~40°C for several minutes. It has excellent resistance to many types of solvents and chemicals and is ideal for bonding fiber optics, metals, glass, ceramics and most plastics.

353ND remains liquid until heat is applied. It can be applied by brush, dipping, pouring or mechanical dispensing techniques.

Curing Schedule:

• 1 minute @15°C
• 2~5 minutes @12°C
• 5~10 minutes @10°C
• 15~30 minutes @8°C

Pot Life:

• 4 hours

Specifications:

• Color: amber
• Consistancy: pourable liquid
• Viscosity (mixed): 3000~5000 cps
• Mix Ratio: 10(A):1(B-hardener) by weight
• Specific gravity: 1.2(A), 1.02(B)
• Glass Transition Temp.(Tg): 12°C
• Coefficient of Thermal Expansion(CTE), in/in°C: 54x10e-6 (below Tg), 160x10e-6 (above Tg)
• Operating Temp. Range: -50~+20°C
• Hardness Shore D: 87
• Outgas: 0.8%@20°C, 1.2%@25°C
• Lap Shear Strength, 2°C Al to Al: 2000psi
• Impact Resistance, ASTM-D-256-56: 0.38 ft/lb.-in.
• Index of Refraction: 1.56
• Spectral Transmission: >50%@500nm, >95%@700nm~2um
• Thermal Conductivity: 0.34 W/°K
• Thermal Shock Resistance: Passed 1000 cycles -5°C~+15°C

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
