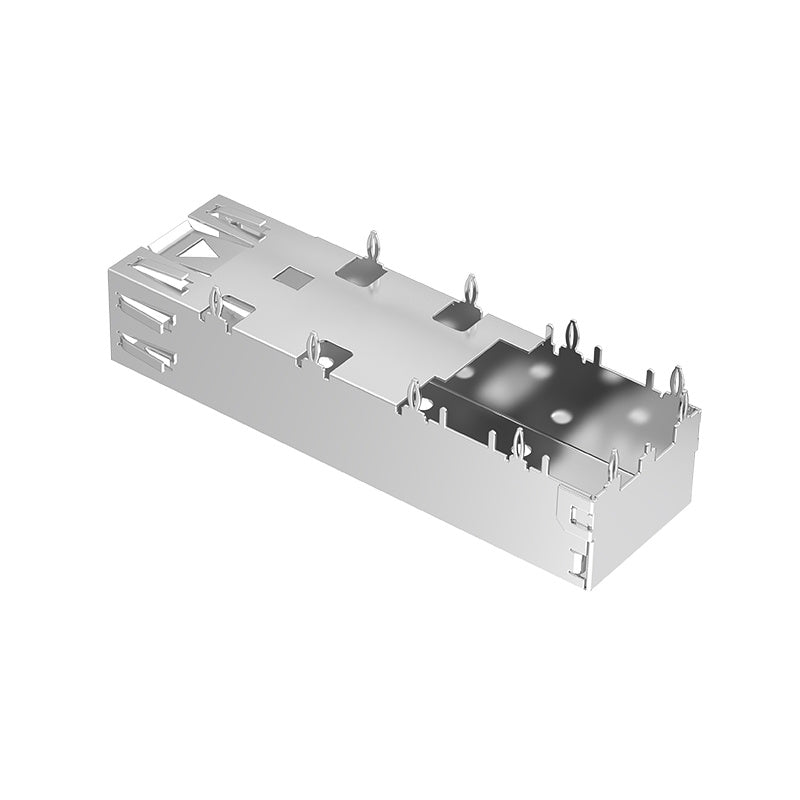

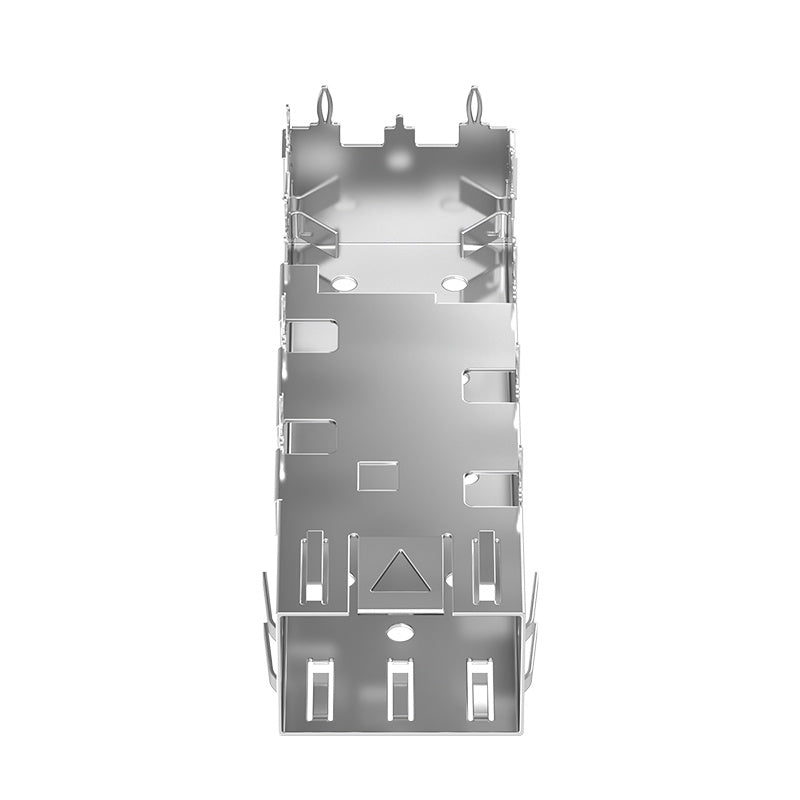

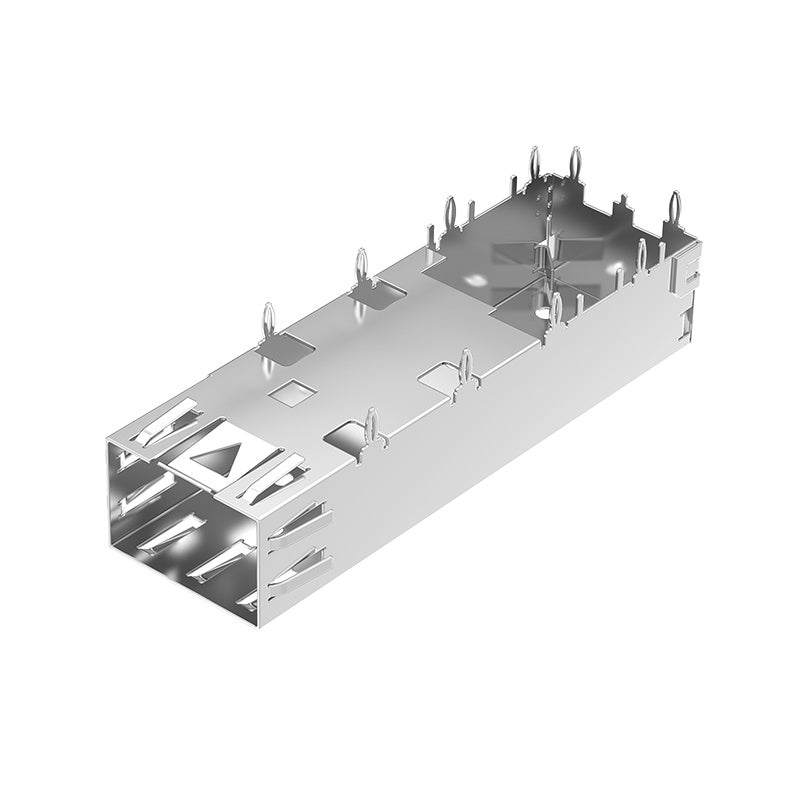

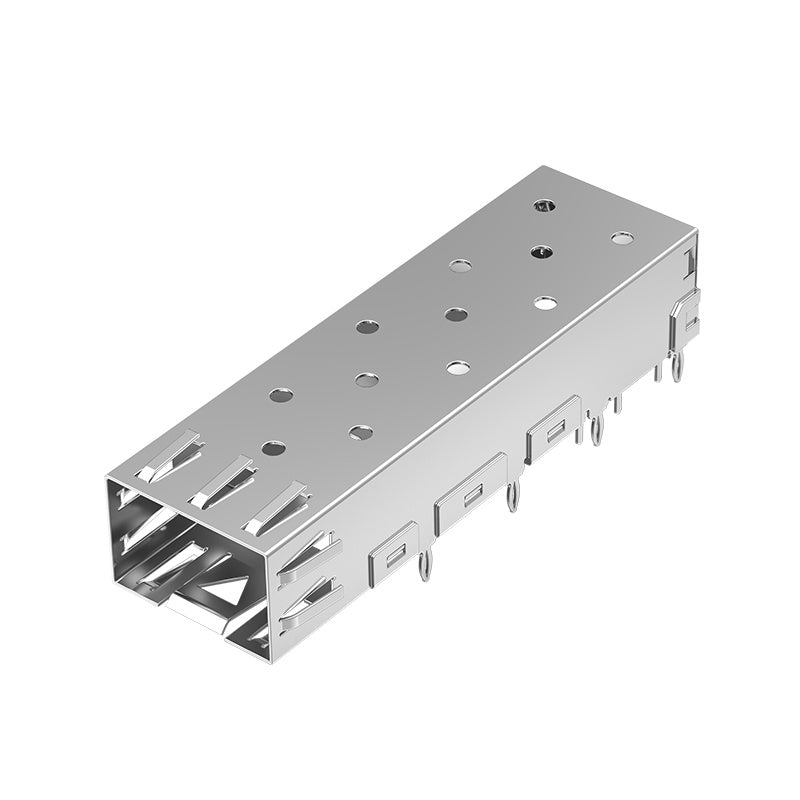

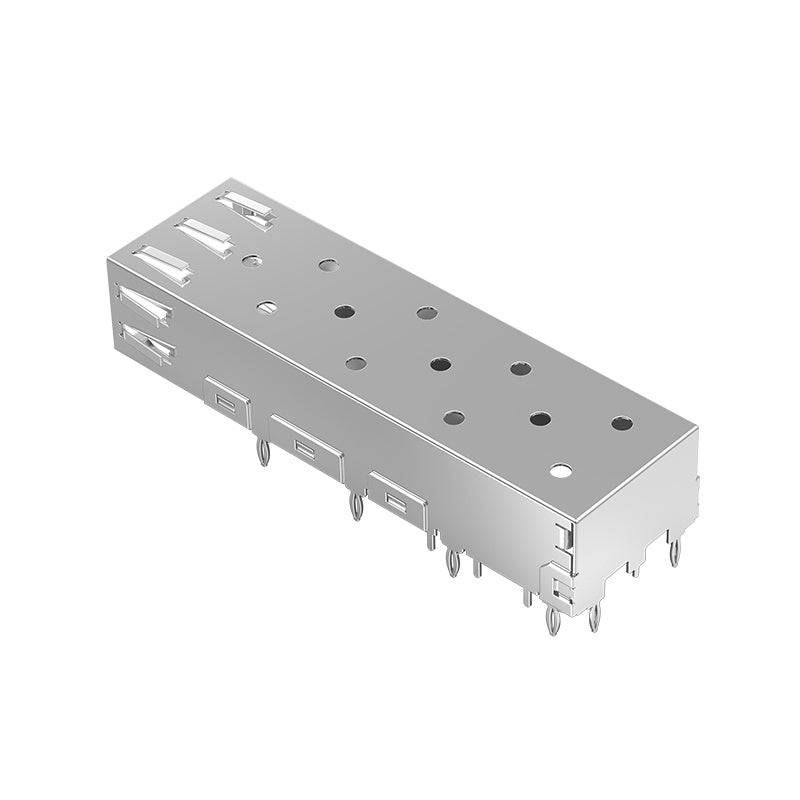

F-tone FT11AC01000 SFP 1x1 Cage With EMI Spring Finger

F-tone FT11AC01000 SFP 1x1 Cage With EMI Spring Finger

View full details

F-tone FT11AC01000 SFP 1x1 Cage With EMI Spring Finger

    F-tone Part Number FT11AC01000 Part Status Active
    Connector Style Cage Connector Type SFP
    Cage COPPER ALLOY,Ni PL ATED THICKNESS 0.25mm
    PACKAGING TRAY PACKAGING Mounting Type Through Hole, Right Angle
    Port Matrix Configuration 1x1 Port Number of Ports 1
    Operating Temperature Range -55 – 85°C PCB Mounting Style Through Hole - Press-Fit
    Circuit Application Signal EMI Containment Feature Type EMI Springs
    Included Lightpipe No Height (Inches/mm) 9.75/0.384
    Length (Inches/mm) 9.75/0.384 Width (Inches/mm) 48.75/1.919

    Contact us.

    For any inquiries, please feel free to contact us. We reply within 24 hours.

    📧 Email: una@f-tone.com

    📱 Mobile / WhatsApp / WeChat: +86 177 6116 3895

    Important Notice

    Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

    The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
