F-tone FT24AC01201 SFP 2x4 Cage Connector With Inner LightPipe

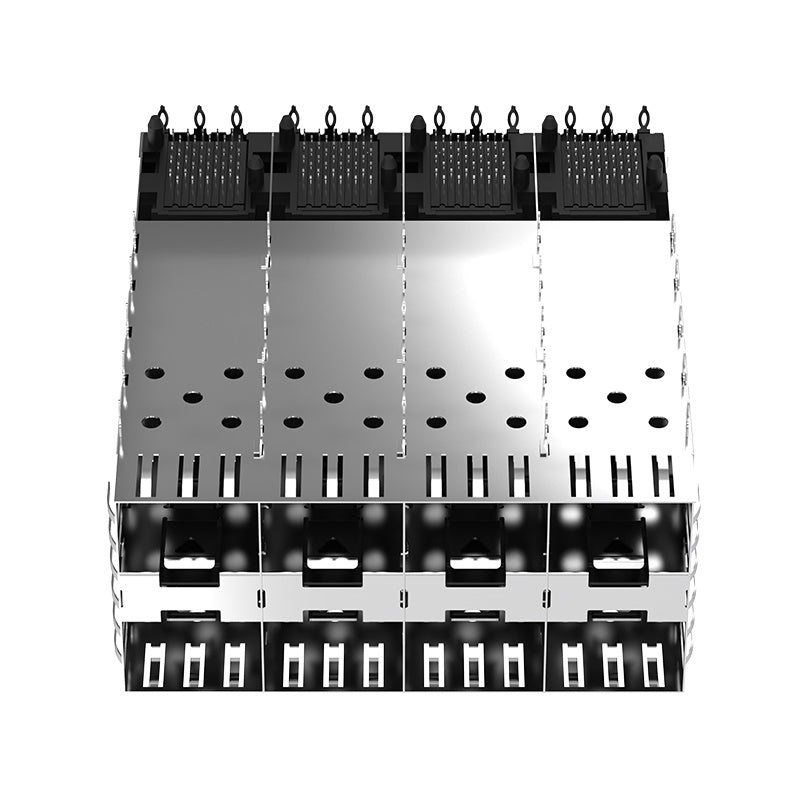

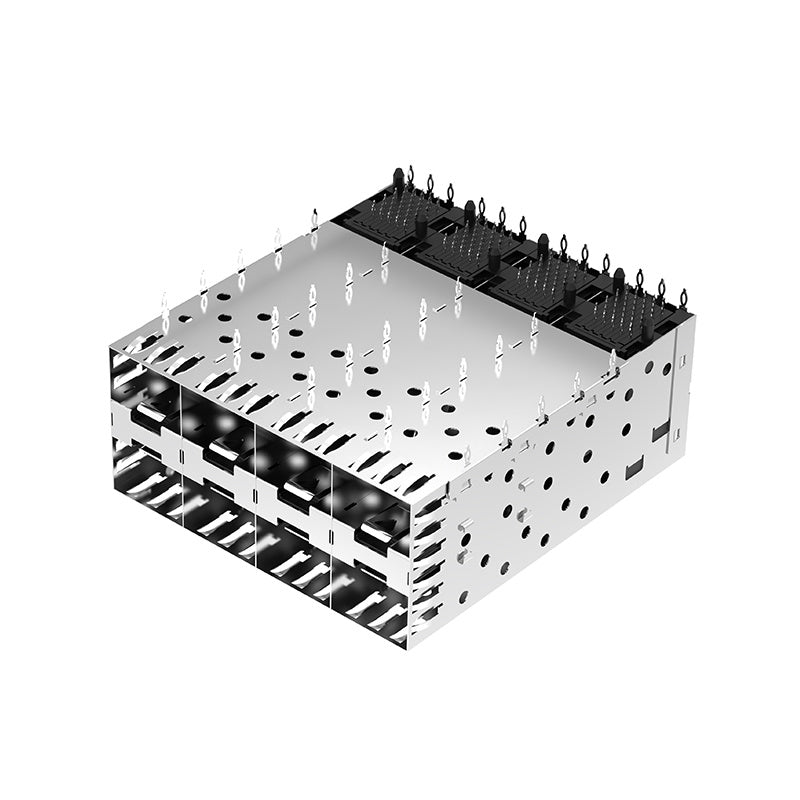

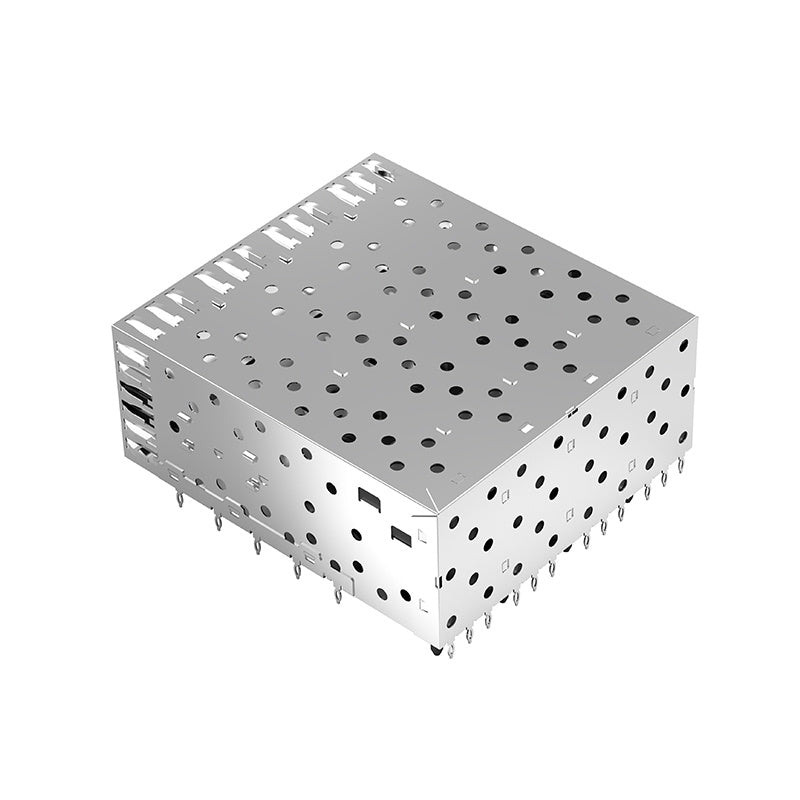

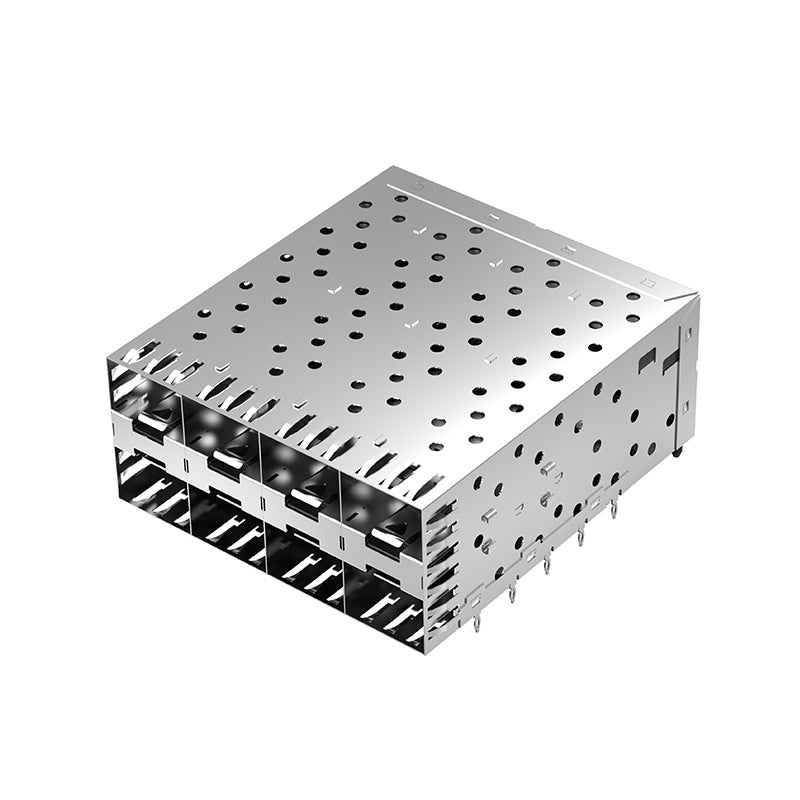

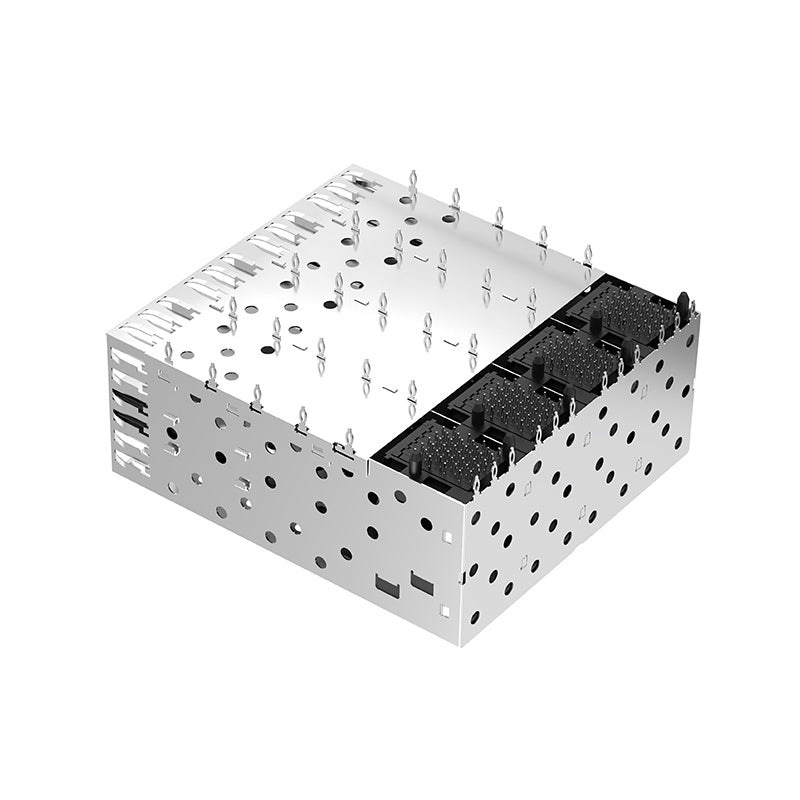

F-tone FT24AC01201 2x4 Port SFP Stacked Receptacle and Cage Assembly with Inner LightPipes

Engineered to maximize faceplate I/O density in high-throughput data center and telecommunications infrastructure, the FT24AC01201 is a highly integrated 2x4 (8-port) stacked SFP cage and receptacle assembly. By organizing eight Small Form-factor Pluggable (SFP) ports into a dense, vertically stacked 2x4 matrix, this assembly empowers hardware architects to drastically increase port capacity on standard 1U and 2U networking chassis. Integrating both the mechanical EMI shielding cage and the electrical receptacles into a single, pre-aligned unit eliminates tolerance stack-up issues during printed circuit board (PCB) assembly and ensures flawless transceiver mating.

Constructed from a premium 0.25mm thick Copper Alloy with a minimum 30u" Nickel Plating, this heavy-duty cage delivers superior structural rigidity and uncompromising resistance to oxidation and corrosion. The internal plastic housings are precision-molded from High-Temperature LCP (Liquid Crystal Polymer) meeting strict UL94 V-0 flammability standards. Featuring an extreme industrial operating temperature range of -40°C to +85°C, the FT24AC01201 guarantees mission-critical reliability for both climate-controlled enterprise data centers and unconditioned outdoor edge computing enclosures.

Integrated Inner LightPipes for Visual Diagnostics

Providing clear, port-level diagnostic feedback in massive 8-port stacked configurations is a complex mechanical challenge. The FT24AC01201 intelligently resolves this by incorporating precision-engineered Inner LightPipes directly into the cage architecture.

• Targeted Port Visibility: These internal optical channels efficiently capture light from surface-mounted LEDs located on the PCB and route it directly to the front chassis bezel. This provides network administrators with immediate visual status indicators (such as Link and Activity) for the stacked ports.
• Streamlined Outer Profile: By utilizing only inner light pipes, the outer perimeter of the cage remains completely unobstructed. This design is highly advantageous for custom faceplate bezels and specific transceiver latch mechanisms that require tight external clearances while still delivering essential diagnostic capabilities.

Advanced EMI Containment & Shielding

Managing Electromagnetic Interference (EMI) in high-density, 8-port chassis configurations is a critical design mandate. The FT24AC01201 achieves superior electromagnetic compatibility (EMC) through its advanced shielding design.

• 0.25mm Nickel-Plated Copper Alloy: The thick, premium alloy acts as a continuous Faraday shield, aggressively containing internal high-frequency emissions generated by PHY transceivers and ensuring strict compliance with FCC, CE, and CISPR regulatory standards.
• Stainless Steel EMI Springs: Heavy-duty stainless steel EMI springs surround the perimeter of the port openings. These springs ensure continuous, low-impedance electrical contact with the metallic chassis bezel, aggressively sealing the enclosure against external Radio Frequency Interference (RFI).
• Port-to-Port Isolation: Internal metallic dividers act as physical and electrical barriers, dramatically reducing near-end crosstalk (NEXT) and electromagnetic coupling between adjacent and vertically stacked SFP modules.

Mechanical Design & Automated PCB Integration

Hardware engineers prioritize long-term mechanical reliability alongside high-yield automated manufacturing. The FT24AC01201 leverages advanced structural technology to optimize the PCB assembly workflow.

• Optimized for Thick PCBs: Specifically designed for heavier, multi-layer telecom-grade boards, requiring a recommended PCB thickness of 2.36mm (0.093 inches) to ensure proper mounting engagement, signal integrity, and long-term mechanical stability.
• Tray Packaging for Automation: Supplied in standard tray packaging, ensuring delicate internal contacts and alignment pins are protected during transit and allowing for seamless integration into automated factory floor pick-and-place assembly lines.

Typical Applications

Combining massive 8-port stacked density, targeted inner lightpipe diagnostics, industrial-grade thermal resilience, and robust stainless steel EMI shielding, the FT24AC01201 is the optimal interconnect housing for high-throughput network architectures:

• Data Center & Enterprise Switching: High-density Top-of-Rack (ToR) switches, core edge routers, and network aggregation devices demanding visually monitored, space-saving stacked port matrices.
• Telecommunications Infrastructure: Broadband access hubs, 5G baseband units (BBUs), and fiber-to-the-x (FTTX) optical line terminals (OLTs).
• Industrial & Edge Computing: Ruggedized industrial Ethernet switches and micro-data center nodes deployed in extreme temperature environments (-40°C to +85°C).
• Network Security: Next-generation firewalls, intrusion detection systems (IDS), and unified threat management (UTM) hardware requiring robust EMI containment and specialized front-bezel clearances.
