Part Number: FA-MN-O22

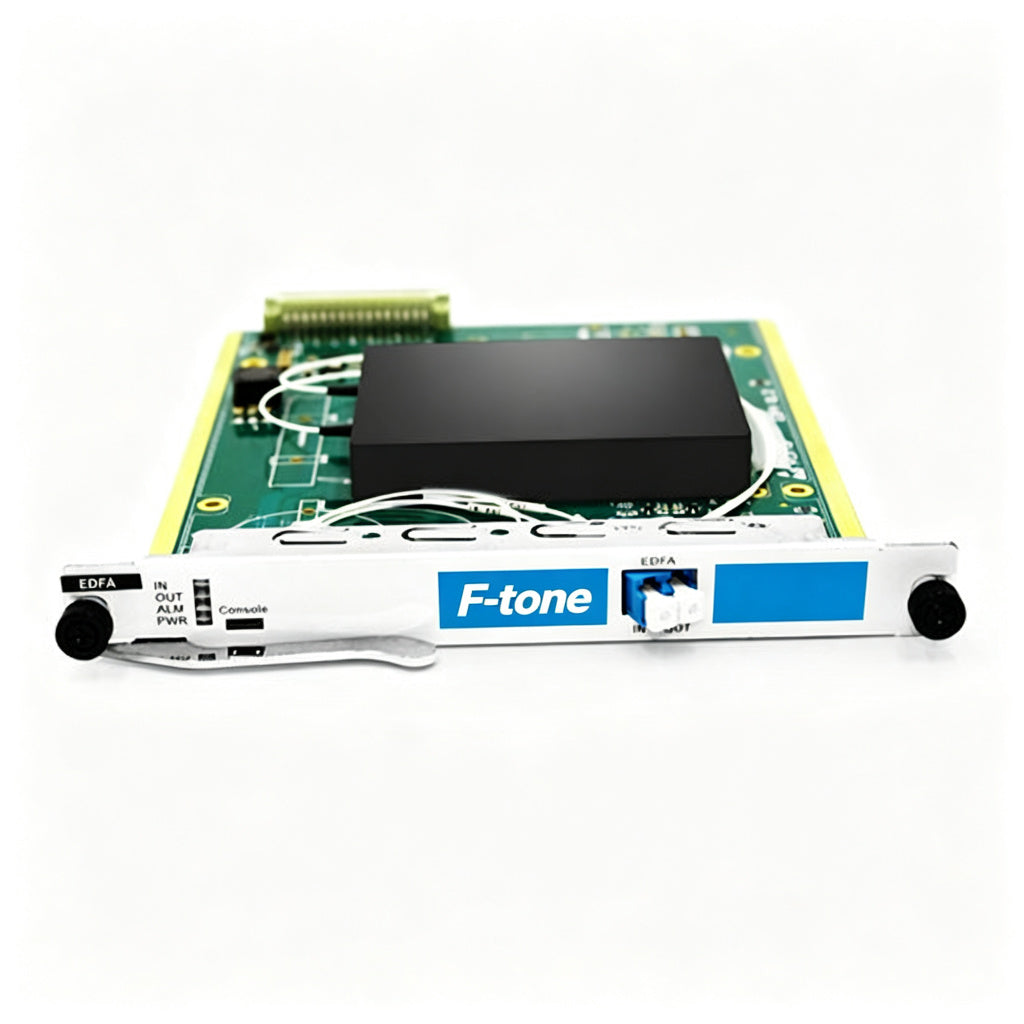

F-tone 22dBm Output Mini High Power Fiber Amplifier EDFA Module
This optical amplifier is high stability output EDFA. The key components of the product is the high reliability multimode PUMP laser. A unique APC (Automatic Power Control) and ATC (Automatic Temperature Control) circuit ensure the high stability and reliability output power, and the unique optical circuit design ensures the excellent optical performance.
The high stability and high precision MPU system ensure that the control, adjustment and monitor are intelligent and user-friendly.
System Function Diagram
This DWDM EDFA module supports the following features:
➢ Low noise figure
➢ High stability and reliability
➢ High saturation output power
➢ High Precise APC, AGC, ACC Circuit
➢ Compact mechanical and circuit structure
➢ Intelligent temperature control system: power consumption and hot radiation reduce 30% less than common products
➢ OEM is available
Environmental Characteristics
| Parameters | Min. | Max. | Unit |
|---|---|---|---|
| Working Temperature | -5 | +65 | ℃ |
| Working Humidity | 10 | 85 | % |
| Storage Temperature | -40 | +85 | ℃ |
| Storage Relative humidity | 5 | 95 | % |
| Voltage | 3.0/4.5 | 3.5/5.5 | V |
| Power Consumption | 10 | W |
Optical Characteristics
| Parameter | Min | Typ | Max | Units | Remark | |
|---|---|---|---|---|---|---|
| Wavelength Range | 1530 | ------ | 1565 | nm | ||
| Saturated Output Power | ------ | ------ | 17 | dBm | ||
| Input Power | Booster | -3 | +10 | dBm | ||
| Line Amplifier | -25 | -10 | dBm | |||
| Pre-amplifier | -35 | -25 | dBm | |||
| Gain | ------ | 20 | ------ | dB | ||
| Noise Figure | ------ | 5.0 | ------ | dB | ||
| Output Power Stability | ------ | ±0.05 | ±0.1 | dB | ||
| RL (Optical Return Loss) | 45 | ------ | ------ | dB | ||
| PMD (Polarization Mode Dispersion) | ------ | ------ | 0.5 | ps | ||
| PDG(Polarization Dependent Gain) | ------ | ------ | 0.3 | dB | ||
| Fiber Length | 0.5 | m | ||||
| Interface | LC/UPC | |||||
| Module Size | (W*L*H)90*70*15 | mm | ||||
PIN Definiton
| PIN | Description | PIN | Description |
|---|---|---|---|
| 1 | VCC | 2 | VCC |
| 3 | VCC | 4 | VCC |
| 5 | GND | 6 | GND |
| 7 | Reserved | 8 | Reserved |
| 9 | GND | 10 | GND |
| 11 | Reserved | 12 | Reserved |
| 13 | Reserved | 14 | Reserved |
| 15 | Reserved | 16 | Reserved |
| 17 | Reserved | 18 | Reserved |
| 19 | Reserved | 20 | Reserved |
| 21 | GND | 22 | GND |
| 23 | Serial Input(1) | 24 | Serial Output(2) |
| 25 | GND | 26 | GND |
| 27 | VCC | 28 | VCC |
| 29 | VCC | 30 | VCC |
Remark:
(1)Serial Input: LVTTL-RX, 9600baud, Input.
(2)Serial Output: LVTTL-TX, 9600baud, Output.
Reserved PINS: NC
Electrical Interface: SAMTEC TCSD-15-01-F-N, 2.0mm span, 15PIN×2, male
Mechanical Dimensions
Size: 90*70*15mm
Order Information
MP-----31----- Application----- Output-----Voltage
| Application | Output | Voltage | Customized | ||
|---|---|---|---|---|---|
| MP: | 31: | 2: Pre-amplifier | 13: 13dBm | 7: 5VDC | Customization is available |
| module | 90×70×15mm | 3: line-amplifier | … | 8: 3.3VDC | |
| 4: booster | 22: 22dBm |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
