Part Number: FAP-SM-36LC18S-DX-FM

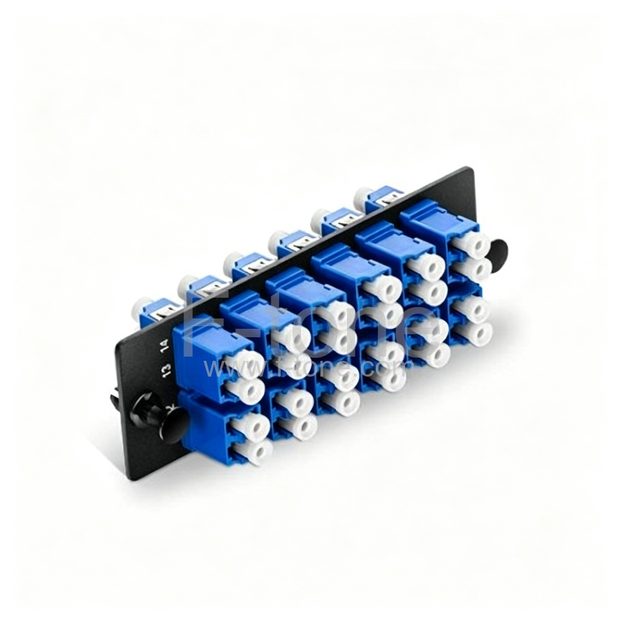

OS2 SingleMode LC UPC Duplex 36 Fibers Adapter Panel 18x Shuttered
F-tone LC fiber adapter panels are available in various fiber counts for use with F-tone LC fiber adapter panel enclosures for a "one-size-fits-all" approach, providing a scalable and flexible cabling solution. Used with factory-installed or field-installable connectors, these panels provide interconnect or cross-connect capability in a housing at main cross-connects, intermediate cross-connects, telecommunication rooms or work areas. FS offers various adapter panel types, including LC, SC, ST, LSH, MTP®, MDC, MMC, multimedia copper/fiber, and blank panels, ensuring compatibility with diverse network architectures. All adapters comply with TIA/EIA-604 FOCIS and TIA/EIA-568-C.3 standards, meeting industry requirements for performance and reliability.
F-tone LC fiber adapter panel enables quick and secure installation into enclosures, supporting rapid network deployment as well as efficient moves, adds, and changes (MACs). Available in multiple sizes (1U, 2U, and 4U) and configurations, it is an ideal choice for structured cabling in building backbones, data centers, and enterprise networks.
Features
● Fully Compatible with F-tone LC fiber adapter panels, Assuring Flexibility and Ease of Network Deployment
● 4 Adapter Panels Fit into 1U, Up to 144 Fibers
● Adapter Housing Color-Coding Follows TIA/EIA-568-C.3, Making It Easy to Identify Fiber Types
● Clear Numbering for Quick Fiber Identification
● Shuttered LC Adapters Eliminate the Need for Dust Plugs to Speed Up Deployment
● Push-lock Rivets Tool-less Installation for One-handed Insertion and Removal and Easier MACs
● Powder-coated Black Steel Material Panel with Excellent Durability and Abrasion Resistance
Specifications
| Number of Ports | 18 | Fiber Count | 36 Fibers |
|---|---|---|---|
| Adapter Type | LC Duplex (Blue) | Interface Feature | Internal shutters |
| Fiber Mode | OS2 9/125μm | Material of Sleeve | Zirconia Ceramic |
| Material of Plate | Steel, Powder-coated Black | Durability | ≤500 Mating Cycles |
| Dimensions (HxW) | 1.38''x4.29'' (35x109mm) | RoHS Compliancy Status | Compliant |
| Operating Temperature | -25 ℃ to 50 ℃ | Application | Matching for F-tone LC fiber adapter panel enclosures |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
