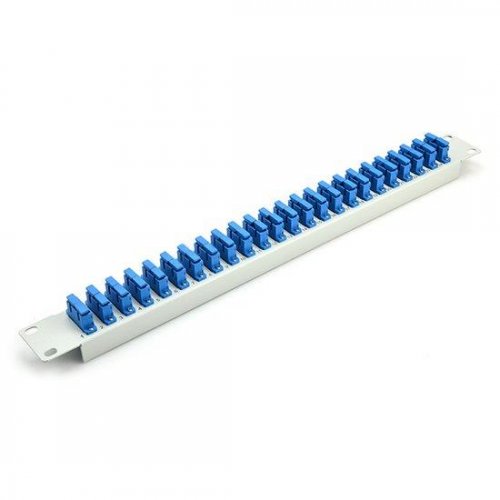

24 Ports 1U 19' Blank Fiber Adapter Patch Panel for SC/LC/FC/ST

24 Ports 1U 19' Blank Fiber Adapter Patch Panel for SC/LC/FC/ST

View full details

Part Number: FPP1U24BLK

24-Port Blank Fiber Adapter Panel for SC/LC/FC/ST (without adapters), 19" 1U Network Rack Installation

No.of Adapter/Port 24 Fiber Count 24~48
Adapter Type SC/LC/FC/ST Fiber Mode OS2/OM1/OM2/OM3/OM4
Plate C.R.S POWDER COATED Dimensions(Inch&mm) 1.75"x19"/482.6x44.45(WxL)
RoHS Compliancy Status Compliant Application Mount In A 19" Network Rack

Features and Benefits

Provides a complete system solution for connectivityMeet or exceed TIA/EIA-568-C.3 requirementsAllows for the industry's highest patch field density and fiber countsAssures flexibility and ease of network deployment and moves, adds, and changesMount to standard EIA 19" rack rails, robust but light weight construction

Details Drawing

F-tone.COM SC Series 1U Fiber Patch Panels

F-tone FAPS ADAPTER COLOR FIBER TYPE DUPLEX & SIMPLEX
FPP1U12SCSXOS2 Blue OS2 SIMPLEX
FPP1U12SCSXOM3 Aqua OM3 SIMPLEX
FPP1U12SCSXOM4 Aqua OM4 SIMPLEX
FPP1U12SCSXOM1 Electric Ivory OM1 SIMPLEX
FPP1U12SCSXOM2 Electric Ivory OM2 SIMPLEX
FPP1U12SCASXOS2 Green OS2 SIMPLEX
FPP1U12SCDOM1 Electric Ivory OM1 DUPLEX
FPP1U12SCDOM2 Electric Ivory OM2 DUPLEX
FPP1U12SCDOS2 Blue OS2 DUPLEX
FPP1U12SCDOM3 Aqua OM3 DUPLEX
FPP1U12SCDOM4 Aqua OM4 DUPLEX
FPP1U24SCSXOM1 Electric Ivory OM1 SIMPLEX
FPP1U24SCSXOM2 Electric Ivory OM2 SIMPLEX
FPP1U24SCSXOS2 Blue OS2 SIMPLEX
FPP1U24SCSXOM3 Aqua OM3 SIMPLEX
FPP1U24SCSXOM4 Aqua OM4 SIMPLEX
FPP1U24SCASXOS2 Green OS2 SIMPLEX

Packaging Details



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
