Part Number: FT-16F-MMC-FTC-OM4

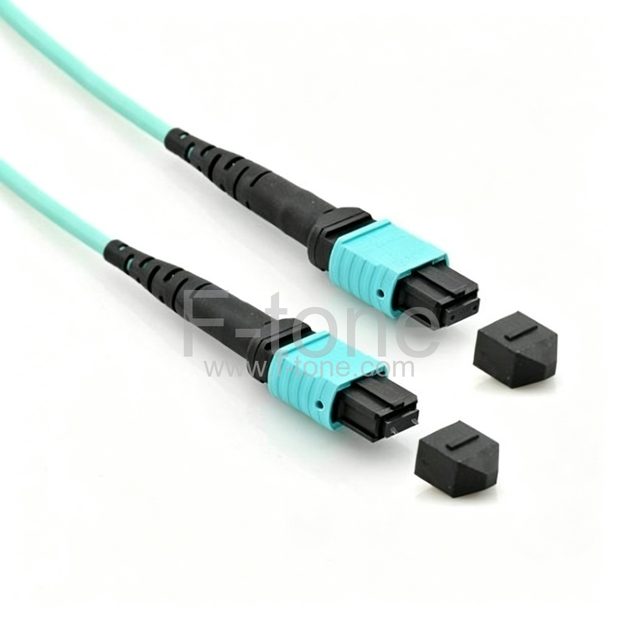

MMC-16 OM4 Multimode Trunk Cable 16-384 Fibers LSZH
The MMC fiber cable is equipped with an MMC connector, a Very Small Form Factor (VSFF) multi-fiber optical connector designed to terminate single-mode and multimode fiber cables up to 2.5mm in diameter. It employs novel TMT ferrule technology harmonized with the MT/MT-16 alignment structure. Individual connector access in the most extremely dense connector environments is easily accomplished using revolutionary DirectConec™ push-pull boot technology.
MMC connectivity enables solutions that minimize the space required across multiple applications, including structured cabling, high fiber count data center interconnects, and high-bandwidth applications.
3x Higher Cabling Density Than MPO
MMC connectors offer three times the cabling port density of MPO, thanks to their space-saving design.
Significant Space Saving for Cabling
Features
● VSFF MMC Connector Supports 3x Cabling Port Density over the MPO Format
● Top & Bottom Rails Enable Correct Orientation to Simplify Installation and Maintenance
● Utilizes Proven MT/MT-16 Mechanical and Fiber Alignment Structures
● DirectConec™ Push-Pull Boot for Effortless Connector Insertion and Extraction
● TMT Elite™ Enable 0.35dB Low IL and APC for Superior Return Loss
● Tested to Telcordia GR-1435
● Support Data Center Structured Cabling and High-Bandwidth Applications
Reliable transmission guaranteed due to Exquisite Design
High-performance US Conec MMC connectors ensure reliable connectivity for high-density data centers and carrier-grade applications.
Minimum Insertion Loss and Return Loss
Brand-new Push-pull Boot Design
Specifications
| Connector A | US Conec MMC | Connector B | US Conec MMC |
|---|---|---|---|
| Polish Type | APC to APC | Glass Fiber | Bend Insensitive Fiber |
| Fiber Mode | OM4 50/125μm | Wavelength | 850/1300nm |
| Fiber Count | 16-384 Fibers | Polarity | Trunk/ Extender Polarity |
| Cable Outside Diameter (OD) | 4.0-17.5mm | Cable Jacket | Plenum (OFNP)/LSZH |
| Min. Bend Radius (Optical Fiber) | 7.5mm | Min. Bend Radius (Fiber Cable) | 20/10D (Dynamic/Static) |
| Tensile Strength (Long Term) | 200-400N | Tensile Strength (Short Term) | 660-1320N |
| Insertion Loss | ≤0.35dB | Return Loss | ≥40dB |
| Attenuation at 1310nm | ≤2.3dB/km | Attenuation at 1550nm | ≤0.6dB/km |
| Operating Temperature | -10 to 60°C (14 to 140℉) | Storage Temperature | 10 to 70°C (14 to 158℉) |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
