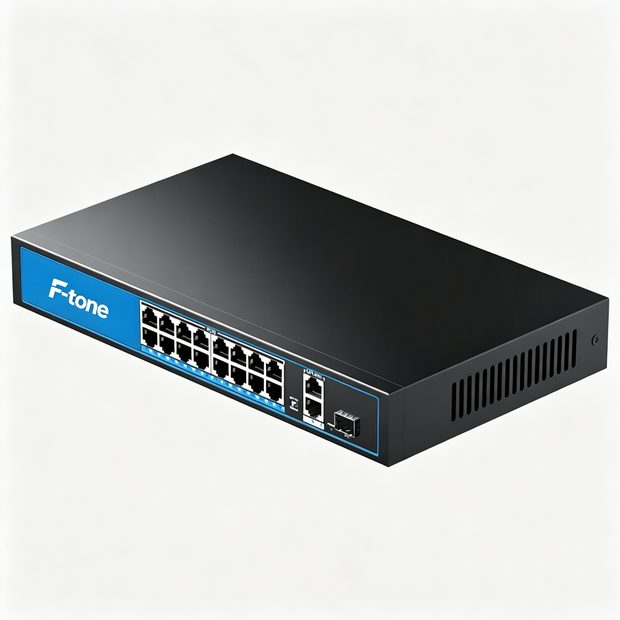

Part Number: FT-2016SP
Fast Ethernet POE switch Series--unmanagement
The PoE Switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The one Fast Ethernet ports can be used for any 10/100 Mbps link and other ports can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to IEEE802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the PoE Switch automatically determines PoE requirements, speed, duplex, and cable type using Auto Uplink .
The affordably priced PoE Switch delivers PoE to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras. These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the PoE Switch is ideal for small business networks that need to inexpensively use PoE to deploy wireless access points and IP-based network surveillance cameras.
Key Features
- IEEE 802.3af power on up to 4/8/16/24 ports
- Supply power to wireless access points and surveillance cameras over Cat-5 cabling
- 5 /8/16/24 10/100 Mbps Ports with AutoUplink
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE IEEE 802.3af compliant PDs
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- LED indicators for monitoring power, link, activity and speed
Specifications
| Type | 2004SP | 2008SP | 2016SP | 2024SP |
|---|---|---|---|---|
| Hardware specifications | ||||
| standard | IEEE802.3、IEEE802.3u、IEEE802.3X、IEEE802.3af、IEEE802.3at | |||
| Backplane bandwidth | 1G | 1.6G | 7.2G | 8.8G |
| MAC Address table | 1K | 1K | 8K | 8K |
| Port type | 4 FE port（PSE） | 8 FE port（PSE） | 16 FE port（PSE） | 24 FE port（PSE） |
| 1 100M fiber port | 1 100M fiber port | 2 1000M Combo port | 2 1000M Combo port | |
| Power | 48VDC | 48VDC | 100-240VAC | |
| power consumption | 60W(802.3af) | 120W(802.3af) | 270W(802.3af) | 400W（802.3af） |
| Physical size | 118*89*25mm | 189*102*28mm | 440*315*44mm | 440*315*44mm |
| weight | 0.34kg | 0.65kg | 2.25kg | 2.25kg |
| Suitable temperature | 0℃-50℃（Working environment），-20℃-70℃（Storage temperature） | |||
| Suitable humidity | 5%-90% No condensation (work environment) |
Ordering Information
| Type | Product description |
|---|---|
| FT-2004SP | 4 FE port（PSE）+1 FE port |
| FT-2004SPF | 4 FE port（PSE）+1 100M fiber port |
| FT-2008SP | 8 FE port（PSE）+1 FE port |
| FT-2008SPF | 8 FE port（PSE）+1 100M fiber port |
| FT-2008SP-4 | 4 FE Port（PSE）+4 FE port |
| FT-2008SPF-4 | 4 FE port（PSE）+4 FE port+1 100M fiber port |
| FT-2016SP | 16 FE port（PSE）+1 1000M Combo port |
| FT-2024SP | 24 FE port（PSE）+1 1000M Combo port |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
