Part Number: FT-24V1D-SM-20-Al

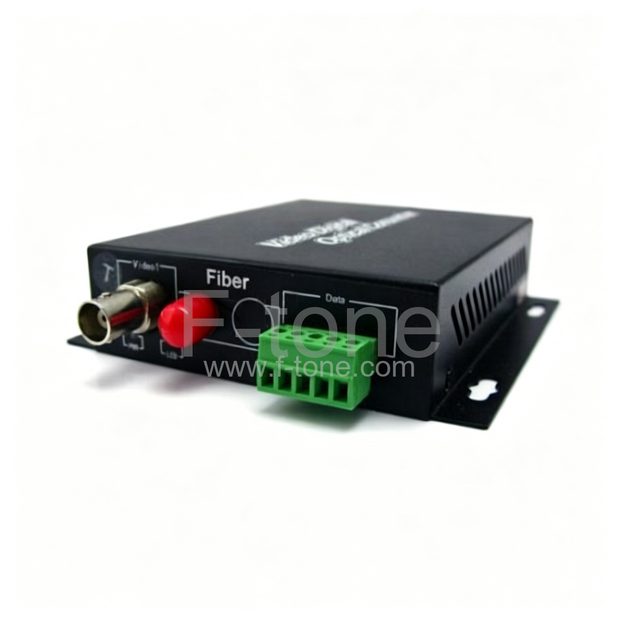

24 Channel Video & 1 Reverse Data to Fiber SM FC 20km Optical Video Multiplexer in Aluminum Alloy Case
Description
Model: FT-24V1D-SM-FC-20KM-Al
Case Body: Aluminum alloy
Transmitter + Receiver
Fiber Mode: Single-Mode
Wavelengths: 1310nm/1550nm
Optical Power Budget: 12dB
Maximum Transmission Distance: 20km
Fiber Optic Video Transmitter & Receiver transmission 24 Channel digital composite video and 1 reverse data, the data support RS485, RS232, RS422 protocols
Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)
Key Features
No rusty and could be used in special environment, ie: Coal mine site
Support Point-to-Point or Daisy-Chain connection
Uncompressed Digital Composite Video over one fiber
Compatible with all PAL, NTSC,SECAM Video Systems
Single-Mode Fiber Support for Distances up to 100 km
LED Status Provide Rapid Indication of Operating Parameters
No EMI or RFI and no ground loops
Support Coarse Wavelength Division Multiplexing (CWDM)
Stand alone
Produce according to customer's specifications,providing OEM
Specifications
| Video | Connectors | ||
| Number of Channels | 24channel Video | Video | 75Ω BNC (Gold Center Pin) |
| Input/output impedance | BNC 75Ω | Data | 3 Pin Terminal Block |
| Input/output Compatibility | PAL,NTSC,SECAM | Optical | FC (Standard) |
| Input/output voltage | 1.0 Volt p-p | Standalone power | Screw terminal block |
| Bandwidth | 6.5MHZ | Rack Power | AC line card |
| Bit Resolution | 8-Bit Digital Transmission | Electrical & Mechanical | |
| Differential Gain | < 1.5% | Input Power Requirements | DC 5V@2A |
| Differential Phase | < 1.5° | Power Adapter | AC 100V~240V |
| Tilt | < 5% | Power Consumption | < 3W |
| Signal-to-Noise Ratio(SNR) | > 67 dB | Shipping weight | 6.4kg(include TX & RX) |
| Data | |||
| Data Formats | RS485(2-wire or 4-wire), RS232/422,Contact Closure | ||
| Data Rate | DC to 115.2Kbps | ||
| Bit Error Rate | 10E-9 | ||
| Environmental | |||
| Operating Temperature | -45°C~+75 °C | Storage Temperature | -45°C~+85 °C |
| Relative Humidity | 0%~95% (non-condensing) | MTBF | >100,000 hours |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
