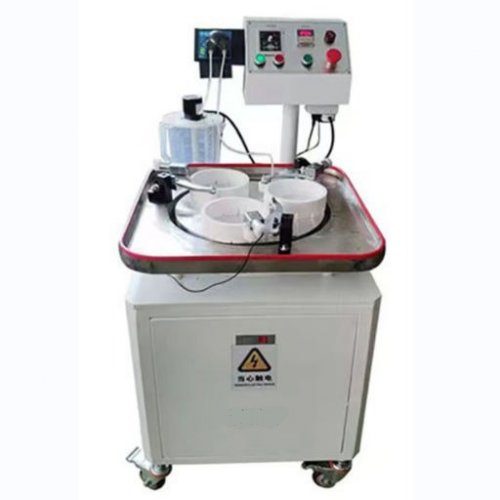

Fiber FA End-face Polishing Machine, Flat Polishing Machine FT-380

Part Number: FT-380FL

Fiber FA Endface Polishing Machine, Flat Endface Fiber Polishing Machine FT-380

The Flat polishing machine is a machine tool that adds abrasives to polish the surface of the optical accessories. It is necessary to correctly select solution such as polishing slurry and polishing fixture. It is mainly used for polishing the end face of FA ferrules and capillary fiber.

Flat Fiber Polishing Machine FT-380

Description:

The Flat Fiber polishing machine is a machine tool that adds abrasives to polish the surface of the optical accessories. It is necessary to correctly select solution such as polishing slurry and polishing fixture. It is mainly used for polishing the end face of FA ferrules and capillary fiber.

Key features:

1. The pressure of the cylinder is adjustable, and the pressure is adjustable;
2. Select the appropriate polishing liquid, polishing fixture and other accessories;
3. The feed amount and speed of rough and finish can be adjusted;
4. The polishing timer can be set arbitrarily within the range of 1-99 hours, and has the function of accumulating time.

Applications:

Widely used in FA ferrules and glass capillaries, LED sapphire substrates, optical glass wafers, quartz wafers, silicon wafers, wafers, molds, light guide plates, optical skewer joints and other materials end face polishing.

Working principle：

1. The polishing machine is a precision polishing equipment. The materials to be polished are placed on the polishing fixture. The polishing fixture rotates counterclockwise. The correction wheel drives the workpiece to rotate. The way of gravity pressure on the workpiece, workpiece and polishing fixture for relative operation friction, to achieve the purpose of polishing.
2. Polishing fixture trimming machine adopts oil pressure suspension guide rail reciprocating movement. In order to get a perfect end face effect, diamond trimming knife for polishing end face of polishing fixture precision dressing.

Technical Parameter:

Order information:

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
