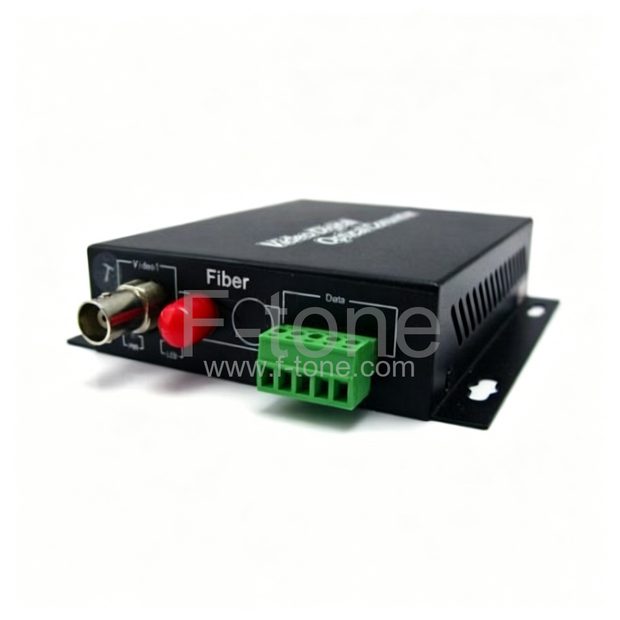

Part Number: FT-4V1BD1E-SM-20
4 Channel Video & 1 Channel Bi-Directional Data & Ethernet to Fiber Optical Video Multiplexer SM 20KM
Description
Our video, data and audio transmitter and receiver support simultaneous transmission of several channels of 8-bit digitally encoded video. The modules are compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-485, RS422 and RS232 data protocols. Plug and Play design ensures convenience of installation and operation.
Features
- 8-Bit Uncompressed Video Transmission
- Compatible with NTSC, PAL, or SECAM CCTV
- Supports RS-232, RS-422, and RS-485 Data Protocols
- WDM for Highest Quality Video Transmission
- No EMI, RFI, Cross Talk, and Ground Loop
- No Electrical or Optical Adjustments Required
- LED Indicators for Instant System Monitoring
- Standalone or Rackmount
- Transmit up to 30 km without Optical Attenuation
- Simultaneous Transmission of Video and Data
Applications
- Intelligent Transportation System
- Connection of Sub-network for Surveillance Center
- Public Security Surveillance
- High Way & Toll Station Surveillance
- Industrial Closed Circuit Television Surveillance
Technical Specifications
| VIDEO | CONNECTORS | ||
| Number of Channels | 1, 2, 4, 8, 16, 24, 32, 48, 64 optional | Video | 75Ω BNC (Gold Center Pin) |
| Input/output impedance | BNC 75Ω | Optical | FC Standard; ST/SC optional |
| Input/output Compatibility | PAL,NTSC,SECAM | Audio | Terminal Block |
| Input/output voltage | 1.0 Volt p-p | Data | Terminal Block |
| Bandwidth | 6.5MHZ | Standalone power | Screw terminal block |
| Bit Resolution | 8-Bit Digital Transmission | Rack Power | AC line card |
| Differential Gain | < 1.5% | ELECTRICAL & MECHANICAL | |
| Differential Phase | < 1.5° | Input Power Requirements | DC 5V@2A |
| Tilt | < 5% | Power Adapter | AC 100V~240V |
| Signal-to-Noise Ratio(SNR) | > 67 dB | Power Consumption | < 3W |
| AUDIO | Bit Error Rate | 1.00E-08 | |
| Number of Channels | 1, 2, 4, 8, 16 optional | DATA | |
| Audio in/output impedance | 600Ω Unbalanced | Number of Channels | 1, 2, 4, 8, 16 optional |
| Audio in/output Level | 6 dBm | Interface Port | RJ45 |
| Signal-to-Noise Ratio (SNR) | >80 dB | Data Formats | RS485(2-wire or 4-wire), RS232, RS422, Contact Closure |
| Bit Resolution | 24-Bit | Data Rate | DC to 115.2Kbps |
| Bandwidth | 20Hz~20KHz | Bit Error Rate | 1.00E-08 |
| ENVIRONMENTAL | ETHERNET/IP | ||
| Operating Temperature | -45 °C~ +75 °C | Standard | Ethernet IEEE 802.3 (Auto-Negotiation) |
| Relative Humidity | 0%~95% (non-condensing) | Data Rate | 10/100 Mbps |
| Storage Temperature | -45 °C~ +85 °C | Connector | RJ-45, Auto MDI/MDI-X |
| MTBF | >100,000 hours |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
