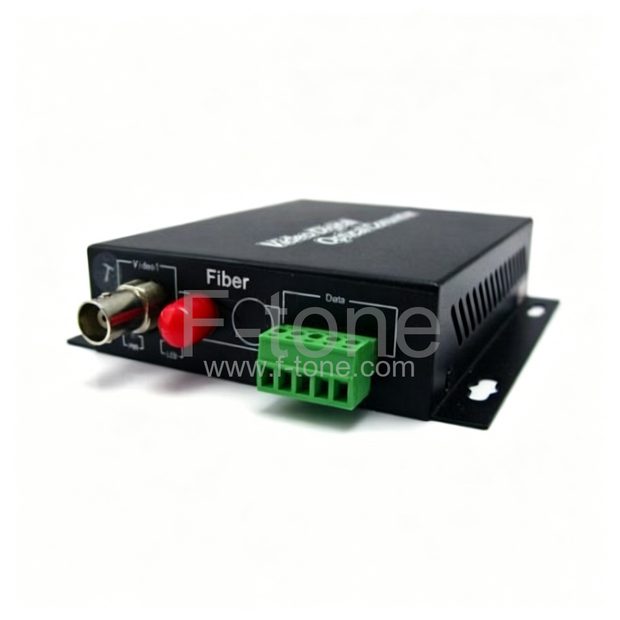

Part Number: FT-8V4BD-SM-20
8 Channel Video & 4 Channel Bi-Directional Data & Ethernet to Fiber Optical Video Multiplexer SM 20KM
Description
Our video, data and audio transmitter and receiver support simultaneous transmission of several channels of 8-bit digitally encoded video. The modules are compatible with NTSC, PAL and SECAM CCTV camera systems and support RS-485, RS422 and RS232 data protocols. Plug and Play design ensures convenience of installation and operation.
Features
- 8-Bit Uncompressed Video Transmission
- Compatible with NTSC, PAL, or SECAM CCTV
- Supports RS-232, RS-422, and RS-485 Data Protocols
- WDM for Highest Quality Video Transmission
- No EMI, RFI, Cross Talk, and Ground Loop
- No Electrical or Optical Adjustments Required
- LED Indicators for Instant System Monitoring
- Standalone or Rackmount
- Transmit up to 30 km without Optical Attenuation
- Simultaneous Transmission of Video, Data and Ethernet
Applications
- Intelligent Transportation System
- Connection of Sub-network for Surveillance Center
- Public Security Surveillance
- High Way & Toll Station Surveillance
- Industrial Closed Circuit Television Surveillance
Technical Specifications
| Video | |||
| Number of Channels | 8 channel Video | Video bandwidth | 6.5 MHz |
| Automatic compatible video system | PAL, NTSC, SECAM | Input/output voltage | 1.0 Volt p-p |
| Video input/output impedance | BNC 75 Ω | Differential gain | < 1.5% |
| Video signal-to-noise ratio (SNR) | ≥67dB | Differential phase | <1.5° |
| Video connector | BNC | Tilt | < 5% |
| Fiber-optic Specification | |||
| F/O connector | FC (Standard) | Transmission Distance | 20KM (single mode) |
| Transmitter | Tx Power: -15dBm ~ -8dBm | Operating Wavelength | TX1310/RX1550nm for Transmitter |
| Sensitivity: 35dBm | |||
| Receiver | Tx Power: -15dBm ~ -8dBm | TX1550/RX1310nm for Receiver | |
| Sensitivity: 35dBm | |||
| Data | |||
| Number of Data Channels | 4 Bi-Directional Data | Connector | Terminal Blocks |
| Data rate | DC to 115.2Kbps | BER | 1.00E-08 |
| Data Formats | RS485(2-wire or 4-wire), RS232/422,Contact Closure | ||
| Environmental | |||
| Operating Temperature | -45°C~+75 °C | Storage Temperature | -45°C~+85 °C |
| Relative Humidity | 0%~95% (non-condensing) | MTBF | >100,000 hours |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
