Part Number: FT-CABS-16B

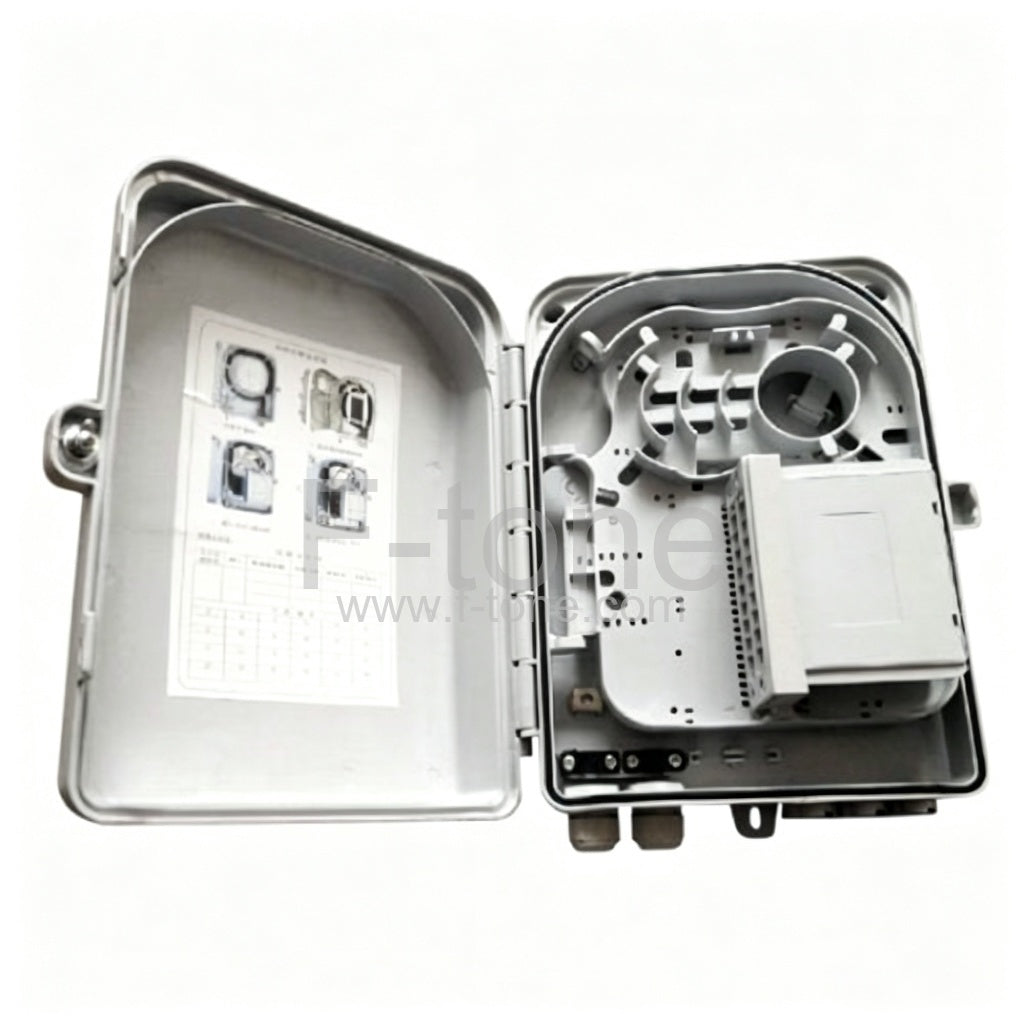

1x16 Fiber Optical Splitter ABS Terminal Box As Distribution Box FT-CABS-16B
F-tone's Insert Fiber Optical Splitter Terminal Box belongs to distribution box, it is mainly used Blade Design, and which is equipped with splitter module, PLC splitter and connector. The material of this box is usually made of PC, ABS, SMC, PC+ABS or SPCC. The box is suitable for fiber terminational point to complete connection, distribution and scheduling between perimeter fiber cables and terminal equipment. Therefore it widely used in optical fiber communication network project.
Note: This box does not contain Fiber Splitters and Splitter Module. If you need them, we can install them for you with few chargers.
Features
- Sufficient slot design
- Plug in type splitter design
- Easy and save time for adjust fiber
- Easy and convenience for installation
- Install in the wall or telegraph pole
- Upper layer light splitting,Lower layer splicing
- Specific FTTH cable and outdoor cable lock device
- Use the mounting plate seperating the up and down
Specifications
- Box Type: B
- Fiber Splitter: 1x16
- Box Material: ABS
- Box Dimensions: 315x275x96 mm
Performance Index
| ITEM | FT-CABS-16A | FT-CABS-16B | FT-CABS-16C | FT-CABS-16D | FT-CABS-32A |
|---|---|---|---|---|---|
| Size (mm) | 315x280x100 | 315x275x96 | 340x260x90 | 265x340x115 | 430x350x100 |
| Weight (KG) | 9 KG | 9 KG | 10 KG | 10.5 KG | 12.5 KG |
| 1x16 Plug in Type Splitter | 1pc=1x16 PLC (available) | 1pc=1x16 PLC (available) | 1pc=1x16 PLC (available) | 1pc=1x16 PLC (available) | 2pc=2{1x16 PLC}(available) |
| 1x32 Plug in Type Splitter | - | - | - | - | 1pc= 1X32 PLC (available) |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
