3 Ports S+C+L (1460-1625)nm Optical Circulator Polarization Insensitive

3 Ports S+C+L (1460-1625)nm Optical Circulator Polarization Insensitive

View full details

Part Number: FT-CIR-3-SCL-X

1M 3 Ports S+C+L（1460-1625)nm Polarization Insensitive Optical Circulator

F-tone’s Three-port Optical Circulator allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.
Optical Circulator is widely used in advanced communication systems and fiber-optical sensor systems.
All F-tone's products are qualification tested.

Characteristics

  • Low Back Reflection
  • High Extinction Ratio
  • Low Insertion Loss
  • High Return Loss

Applications

  • DWDM system
  • Add-Drop Multiplexing
  • Fiber Amplifier
  • Fiber Sensor
  • Chromatic Dispersion Compensation Devices
  • Fiber Bragg Grating

Application Diagram

As the picture shows: The input DWDM channels are coupled into Port 1 of the device with a FBG device connected to Port 2. The single wavelength reflected from the FBG then reenters the Circulator in Port 2 and is routed accordingly to Port 3. The remaining signals pass through the FBG and exit on the top fiber.
Circulator used to drop an optical channel from a DWDM system using a Fiber Bragg Grating.
As the picture shows: A Circulator is located at both ends of the fiber. Each Circulator functions to add a signal in one direction while removing the signal in the other. See the example to the left.
Circulator can be used to send optical signals through a single fiber in two directions.

Dimension

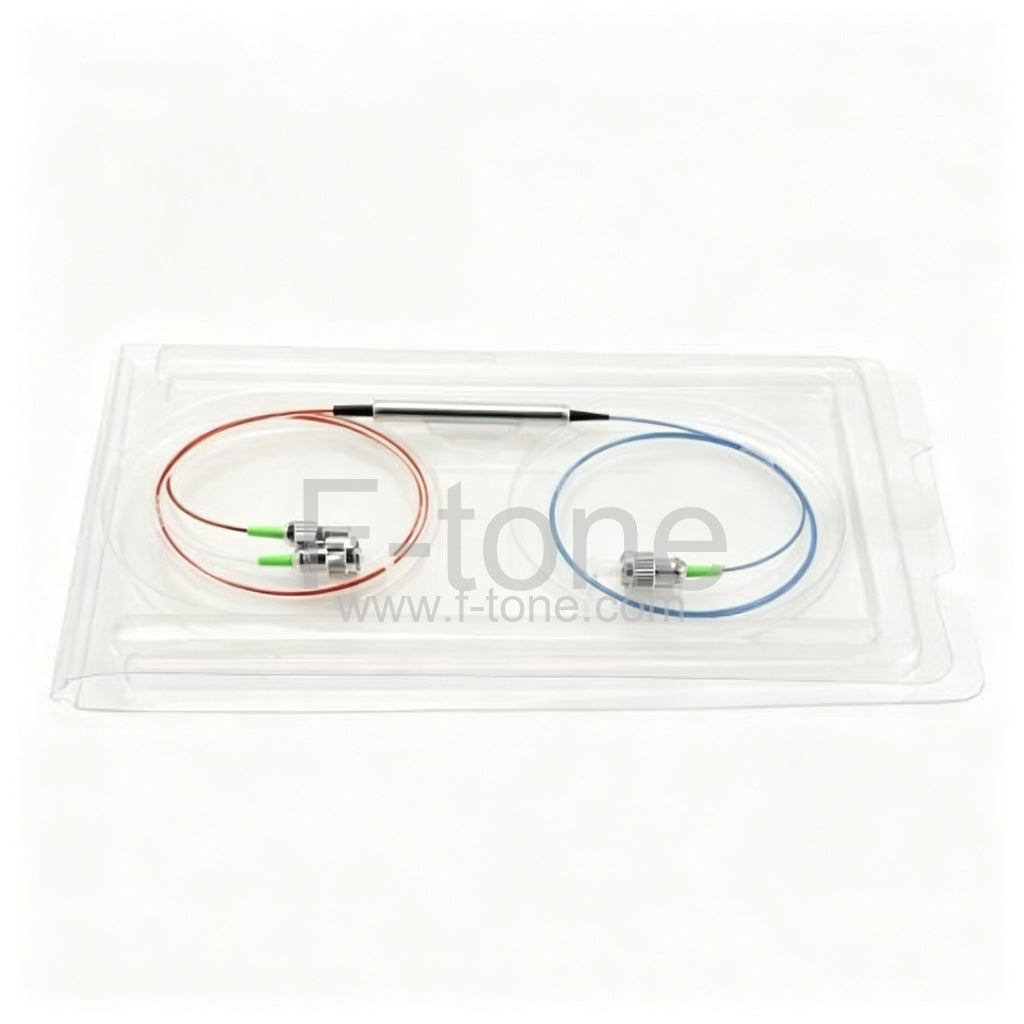

Sample Picture



Order Information

wavelength Type Grade Pigtail Type Length Connector
1310nm
1480nm
1550nm
1585nm
1520~1620nm		 3 Ports
4 Ports		 P Grade 250um bare fiber
900um loose tube
3mm loose tube
2mm loose tube		 0.5m
0.8m
1.0m
1.5m
2.0m
Custom		 None
FC UPC/APC
SC UPC/APC
LC UPC/APC
ST UPC/APC
E2000 UPC/APC
MU

Note:
1. Wavelength: F-tone can customize any other wavelengths according to your requirement.
2. Length: The default length for the cable is 1M, F-tone could also provide 0.5M,0.8M,1.5M, 2.0M ,etc.
3. Connector: Each port of the Circulator could be with any connector such as FC/LC/SC/ST,etc. Please contact us by email to [email protected] or call at +1-205-282-9089 if you have any requirement for it.

Type
Parameter		 3 Port 4 Port
Operating wavelength (nm) 1310, 1480,1550,1585,(+/-30) C+L(1520~1620) 1310,1480,1550,1585,(+/-30) C+L (1520~1620)
Isolation (λc,23℃ all sop) (dB) ≥40 ≥40 ≥40 ≥40
Isolation (Over all λ, T, sop) (dB) ≥35 ≥30 ≥35 ≥30
Insertion Loss (λc,0~70℃ all sop) (dB) Grade P ≤0.8 ≤1.1 ≤0.8 ≤1.2
Grade A ≤1.0 ≤1.2 ≤1.0 ≤1.3
PDL (dB) ≤0.15 ≤0.20
Return loss (dB) ≥50
PMD (ps) ≤0.1
Directivity ≥50
Power handling (mW) ≤300
Fiber Type SMF-28e
Operating temperature (℃) 0 ~ +70
Storage temperature (℃) -40 ~ +85
Package Dimensions (mm) For bare fiber of 900um loose tube φ5.5×L50(P2) φ5.5×L68(P5) φ5.5×L64(P8)
For 3mm cable L98XW14.5XH8.5(P6) L90XW20XH9.5(P9) L80xW12xH10(P7)


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
