Part Number: FT-Cisco

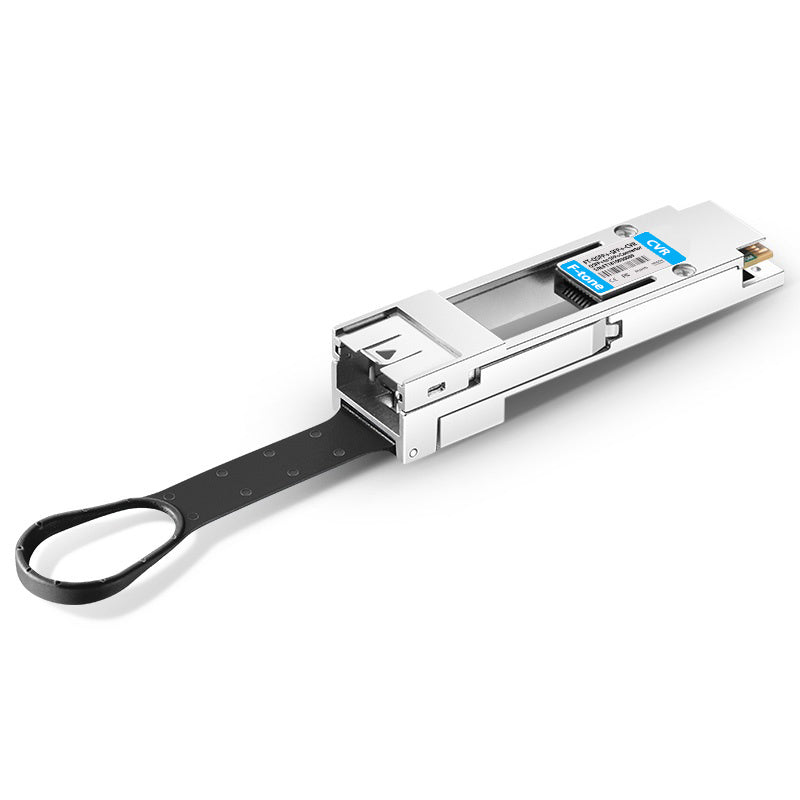

Cisco QSFP-40G-CSR4 Compatible 40GBASE-CSR4 QSFP+ Transceiver
Equivalent Cisco Part Number(s): QSFP-40G-CSR4 (MMF, 850nm, 400m, MPO/MTP, DOM)
Cisco QSFP-40G-CSR4 Compatible QSFP+ transceiver support link lengths of 300m and 400m, respectively, on OM3 and OM4 multimode fibers at a wavelength of 850nm.
It primarily enables high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP multifiber connectors and can also be used in a 4x10G module for interoperability with 10GBASE-SR interfaces.
Digital optical monitoring (DOM) support is present to allow access to real-time operating parameters, which means, we are now by using DOM capable of performing transceiver monitoring and troubleshooting operations.
It is guaranteed to be 100% compatible with the equivalent Cisco optics module. F-tone.COM stands behind the quality of our products and proudly offer a limited lifetime warranty.
Details
| Form Type: QSFP+ | Data Rate: 40 Gbps |
|---|---|
| Wavelength : 850nm; 4-lanes | Max Cable Distance: 300m @ OM3, 400m @ OM4 |
| Interface : MPO/MTP | Optical Components: VCSEL 850nm |
| Cable Type: MMF | DOM Support: YES |
| Commercial Temperature Range: 0 to 70°C (32 to 158°F) | HTS-Harmonized Code: 8517706000 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
