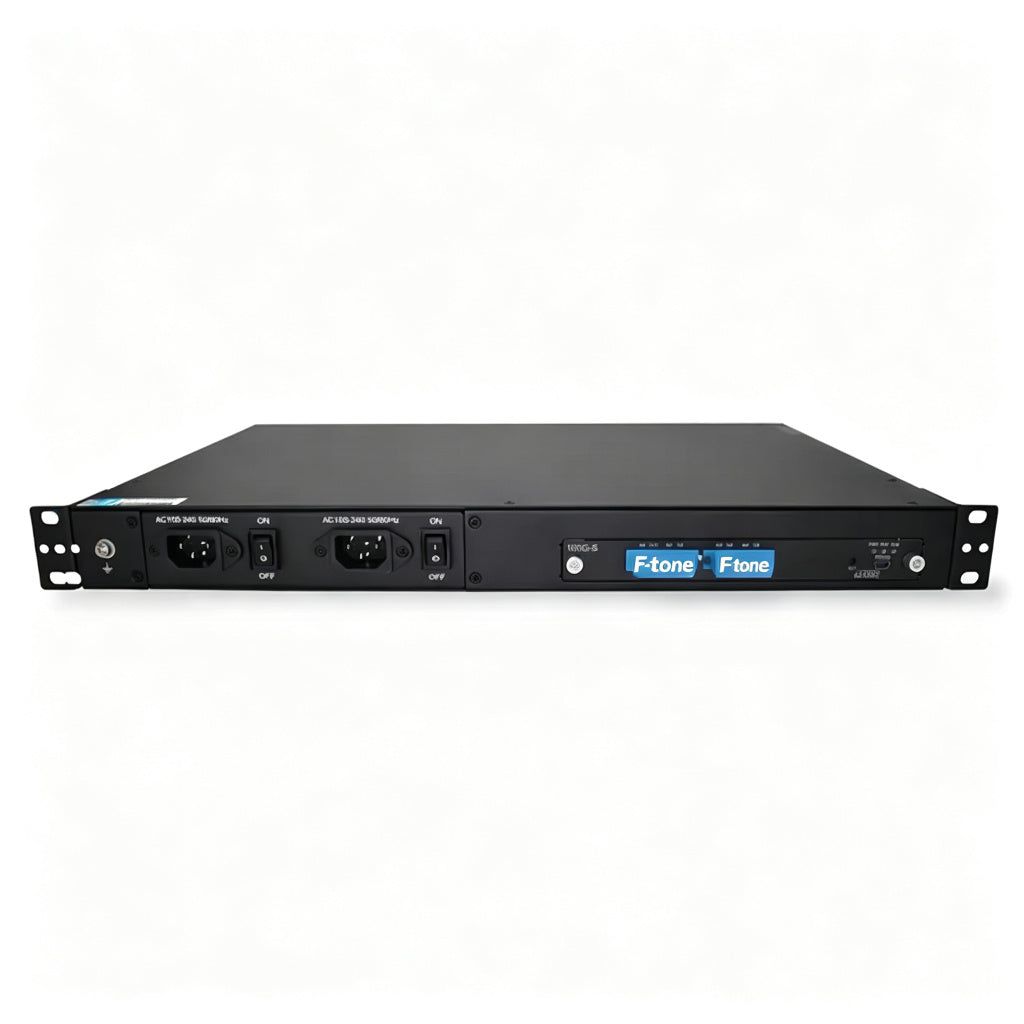

EA2000RM 6dB Raman Fiber Amplifier

EA2000RM 6dB Raman Fiber Amplifier

View full details

Part Number: FT-EA2000RM-6

Raman Fiber Amplifier EA2000RM 6dB

Distributed Raman Fiber amplifier EA2000RM series has a low effective noise index, adjustable gain, gain flatness, structural standards, high reliability. The DWDM application within the range of 1529~1561nm lightwave transmission system can achieve large capacity, ultra-long-haul fiber-optic communications prolong relay distance, so the radio relay transmission up to hundreds of kilometers above.

Module built-in microprocessor for real-time monitoring of the pump working condition. When fiber amplifiers work disorders, to output corresponding alarm information, serious alarm, the amplifier will automatically shut off the pump laser. Pump working condition and related information available to the user via RS232 (TTLport). Addition, the user may also be required the optical fiber amplifier from the outside in real time off.

Features

  • EA2000RM 6dB Raman fiber amplifier
  • Connectors: SC/UPC, SC/APC, FC/UPC, FC/APC, LC/UPC, LC/APC, ST/UPC and ST/APC connectors are available
  • 1U 19” rack mount structure for easy installation
  • Redundancy hot swap power: 110V/220V mixed with 48V
  • High stability and reliability
  • Designed for single wavelength, C-band, L-band or C+L-band design
  • High-gain, low-loss
  • Good gain flatness type
  • Suitable for optical transmission system of 1550 digital and analog TV
  • Improve line optical signal-to-noise ratio (OSNR)
  • Applies to G652, G655 fiber to enhance the transmission performance of the system
  • 10 years of operation life
  • 3 years warranty
  • OEM is available

Application

  • Ultra-long span SDH optical transmission system
  • Ultra-long span of 1550 digital and analog TV optical transmission system
  • Upgrade existing low-speed optical transmission systems to 10Gb/s or 40Gb/s

Forward Raman amplifier and Backward Raman amplifier

Specification

Parameters Min Typ Max Unit
Operation Wavelength 1530 1562 nm
Number of wavelengths 1 4 Piece
Pump number/per wavelength 2 Piece
Insertion loss @ off pump status 750 mw
Polarization mode dispersion 1 1.5 dB
Turn off Gain @-25dBm, G.652 optical fiber 8 Customized 016 dB
Gain flatness @G.652 optical fiberGain=13dB 1 dB
Equivalent noise figure Nfeff -2 0 dB
PDL 0.2 dB
PMD 0.5 ps
Output pump leakage -40 dBm
Input return loss 55 dB
Output return loss 55 dB





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
