Part Number: FT-EOC11T

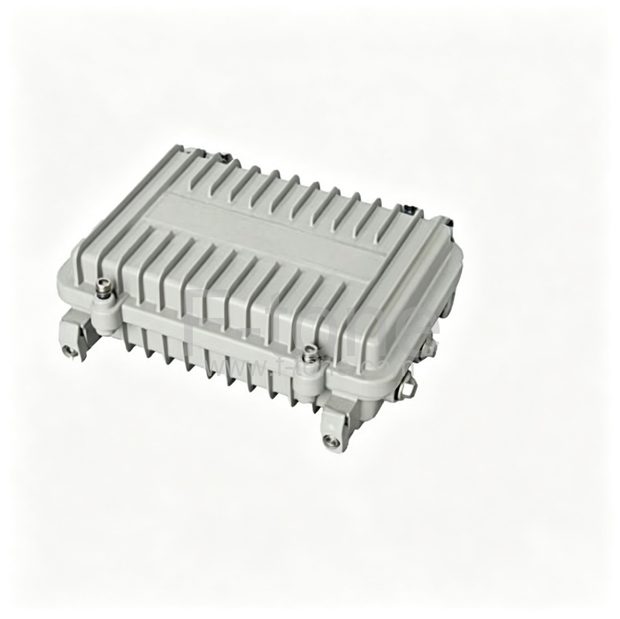

Single-channel 7410 EOC Master Outdoor
Product Overview
EOC11T coaxial cable terminal is an EOC (Ethernet over Coax) Master with the access function of CATV (cable television) and wideband data. EOC21T can implement hybrid output of IP data signal and CATV signal toward cable television distribution network in order to realize co-cable transmission of radio and television programs and IP data.
EOC11T is in the EOC head-end and under-connects more 253 EOC slave coaxial cable network unit equipments. This device can be installed in ONU (Optical Network Unit) cable output line of HFC (Hybrid Fiber-Coaxial) CATV network or input line of user distribution network in one building. It provides the users with services of voice, video, data and so on.
EOC11T supports remote network management. Users can log in EOC21T through WEB or SNMP (Simple Network Management Protocol) or TELNET, etc. After logging in, its under connects—EOC14U—can be managed centrally, such as QoS (Quality of Service) set up, encryption set up, statistics, inquiry of condition and information, software upgrading, etc.
In coaxial network, EOC11T provides access wire speed of 350Mbps, occupies Low Frequency Band under 30 MHz and has no collision with the current CATV system frequency, which can decrease mutual interference. Besides, it supports the current CATV network of tree and chain structure, enables long distance transmission and enjoys high bandwidth and good network adaptability. It completely meets the requirement of Triple-play (integrating three networks into one) of broadcasting and television system.
This device is coated with Aluminium. It has the broadcasting and television conventional waterproof shell for outdoor installation which makes it suitable for outdoor wire-lashing installation convenient for operation.
Product Features
- Coated with airtight aluminum shell that prevents water and dust.
- A wide range of operation temperature from -25℃ to 55℃.
- Occupies the Low Frequency Band under 7.5~65MHz.Strong capacity of anti-interference.High bandwidth.
- Provides 2 Cable interfaces to input CATV signal and output hybrid signal of IP data signal and CATV signal.
- Provides 2 10/100/1000M autosensing Ethernet interfaces to connect up ONU(Optical Network Unit) and Ethernet Switch or to serve as Up-link to under-connect EOC21T.
- Accessible to 253 coaxial cable network units.
- No protection needed outdoor.Supports outdoor wire lashing.
- After logging in EOC11T, the user can manage remotely its under-connected coaxial cable network units.
Product Specification
| Item | Description |
|---|---|
| Interface | 2 10/100/1000M autosensing Ethernet interfaces (Auto MDI/MDIX) |
| 2 waterproof feed-thru F type metric Cable interfaces (metric or imperial) | |
| 1 Console port | |
| Radio frequency | Frequency range:7.5~65MHz |
| Output power: 15dBm | |
| Receiving sensibility: -65dBm | |
| Interface type: F type feed-thru female connector socket | |
| Output impedance: 75Ω | |
| QoS | IEEE 802.3, IEEE 802.3x, IEEE 802.3u Auto MDI(X) |
| Remote management | supports remote WEB management |
| Supports central management of its under-connected EOC SLAVE coaxial cable network unit | |
| TELNET | |
| SNMP | |
| Protocol | TDMA/CSMA |
| Performance | Physical layer rate: 700Mbps; MAC layer throughput: 350Mbps |
| Code mode | Asynchronous |
| Modulation mode | OFDM – 1155 carriers 1024/256/64-QAM, QPSK, BPSK |
| Transmit distance | 1000 m |
| Encryption mode | 128-bit AES encrypted |
| Power | 100~240V AC |
| Size (mm) | 227 (length)× 217 (width)× 110 (height) |
| Weight | < 4kg |
| Operation temperature | -25～55°C |
| Stock temperature | -40～70°C |
| Operation humidity | 10%～90% non- condensation |
| Stock humidity | 10%～95% non-condensation |
| Power consumption | 10 W |
Ordering information
| Type | Product description |
|---|---|
| FT-EOC11T-74 | 1 input 1 output EOC master，outdoor，7410 chip. |
| FT-EOC12T-74 | 2 input 2 output EOC master，outdoor，7410 chip. |
| FT-EOC11TS-74 | 1 input 1 output EOC master，indoor，7410 chip. |
| FT-EOC12TS-74 | 2 input 2 output EOC master，indoor，7410 chip. |
| FT-EOC11T | 1 input 1 output EOC master，outdoor，7410 chip. |
| FT-EOC11TS | 1 input 1 output EOC master，indoor，7410 chip. |
