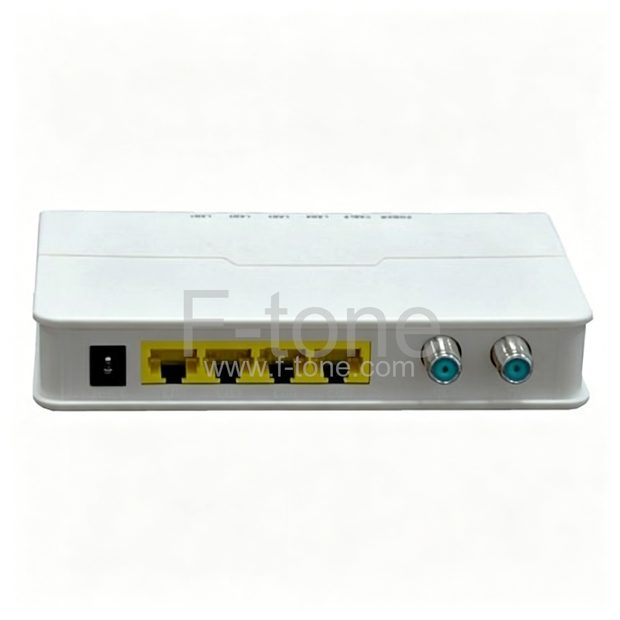

Part Number: FT-EOC14UWV
RJ45 ports EOC with WIFI and VOLP
Product Overview
EOC14UWV coaxial cable network unit can be networking with 7410 EOC Master. They can reach the maximum Physical rate of 500Mbps and build Layer-2 Ethernet transmit network through cable television coaxial cable and mean while have no influence on the pre-existing CATV signal transmit.
EOC14UWV provides four 101M full-duplex Ethernet interface that can be simultaneously connected to terminals such as computer,set-top box of digital television, IP phone, etc. It supports QoS set up andcan provide corresponding transmit guarantee of priority level for data streamof different service types. It supports bandwidth control. Maximum Uplink bandwidth of every EOC14UWV can be set up in order to prevent the attack to the whole coaxial transmit network when devices of other customer premises network go wrong or artificial attack happens. Encrypted transmit is also available to satisfy the service need of high reliability.
Procuct Features
- Provides four 10/100M autosensing Ethernet interfaces to connect devices such as computer, set-top box, IP phone, etc.
- Provides 2 Cable interfaces to separately connect Uplink and Downlink Cable line
- Built-in CATV signal split filter
- Occupies Low Frequency Band under 30MHz. No influence on the pre-existing CATV signal
- No user profile needed. Plug and play
- Supports VLAN configuration
Procuct Specification
| Item | Description |
|---|---|
| Interface | 4 10/100M autosensing Ethernet interfaces (Auto MDI/MDIX) |
| 2 metric thread Cable interfaces | |
| 1 external power interface | |
| 1 WLAN antenna interface | |
| 1 VOLP | |
| Indicator | Lan: 4 |
| Cable:2 | |
| Power:1 | |
| Diagnosis:1 | |
| WLAN: 1 | |
| VOLP: 1 | |
| Radio frequency | Frequency range:7.5~65MHz |
| Maximum Output power: 15dBm | |
| Receiving sensibility: -65dBm | |
| Interface type: F type female connector socket | |
| Output impedance: 75Ω | |
| QoS | IEEE 802.3, IEEE 802.3x, IEEE 802.3u Auto MDI(X), IEEE 802.1P, IEEE 802.1Q |
| Protocol | TDMA/CSMA |
| Software attribute | Supports VLAN, QoS |
| Performance | Rate of Physical layer: 700Mbps |
| Throughput of MAC layer: 350Mbps | |
| Modulation mode | OFDM 1024/256/64/16/8-QAM, QPSK, BPSK |
| Transmit distance | >1000 m |
| Encryption mode | 128-bit AES encrypted |
| Power | External 9VAC/800mA |
| Size (mm) | 155 (length)× 108 (width)× 27(height) |
| Weight | 340g |
| Operation temperature | 0～40°C |
| Stock temperature | -10～55°C |
| Operation humidity | 20%～85% non- condensation |
| Stock humidity | 10%～90% non-condensation |
| Power consumption | <7W |
Ordering information
| Type | Product description |
|---|---|
| FT-EOC14U | 4FE port，7410 chip. |
| FT-EOC14UW | 4FE port + WIFI，7410 chip. |
| FT-EOC14UWV | 4FE port + WIFI + VOLP, 7410 chip |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
