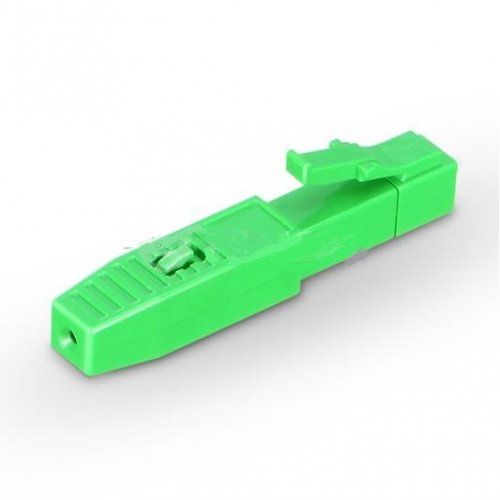

LC/APC Singlemode Pre-polished Ferrule Field Assembly Connector Fast/Quick Connector 0.9mm

LC/APC Singlemode Pre-polished Ferrule Field Assembly Connector Fast/Quick Connector 0.9mm

View full details

Part Number: FT-FAOC-LCA-SM-P

Pre-polished Ferrule Fast Connector

The Field Assembly Connector products have been factory-polished, eliminating the need for any polishing materials, thereby enabling the preparation and termination of optical fibres in a fraction of the time of other conventional methods. The connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector. This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.

Assembly of the LC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed. Just Strip the buffer, cleave and clean the fiber and then insert the fiber into the Fast Connector.Installation takes just minutes and couldn't be easier.

The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.

Key Features

No epoxy and polishing required No expensive tools required Quick and easy fiber termination Precision mechanical alignment insures low insertion loss Superior optical performance Streamlined component design, convenient operation Pre-installed, on-site assembly without end face grinding and consideration Uses proven, molded v-groove technologies Allow optical continuity to be verified by use of visual fault locator (VFL)

Applications

Fiber optic communication system and telecommunication networks Fiber optic data transmission CATV Optical access network Fibre to the Subscriber (FTTx) applications Optical cable interconnection Maintenance or emergency restoration of fiber networks Repair/replacement requirements Fiber optic equipment

Structure Example

Installation Example

The picture above is a SC connecter which is for your reference only.


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
