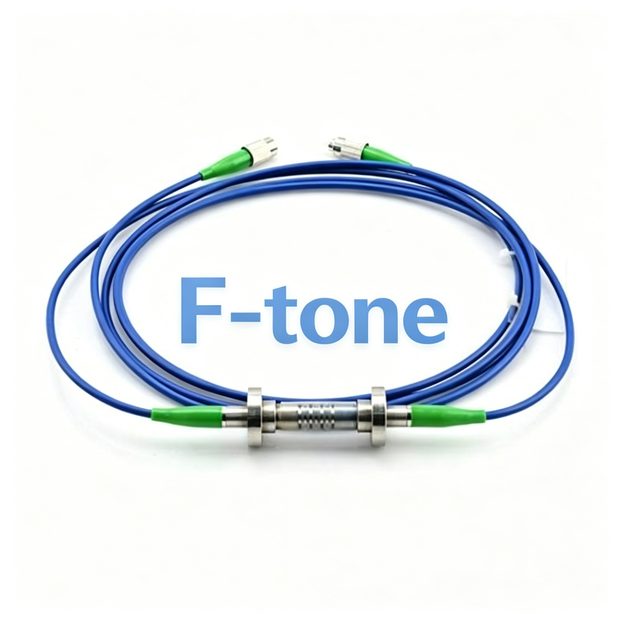

Embedded FBG Strain Gauge Sensor
The strain sensors make use of the sensitivity of fiber grating to measure the strain. The FBG is fixed inside a stainless steel housing between two anchoring points. The housing consists of a sliding mechanism that allows both ends to move freely relative to each other.
Key Features
- Excellent repeatability and reliability
- Excellent waterproof performance
- Try harsh environments
Application
- The strain sensors used in civil engineering construc-tion monitoring and long-term health monitoring, such as: bridges, interchanges, high-rise buildings, large steel construction.
Specification
| Parameter | Unit | Minimum value | Typical value | Maximum value | Remark |
|---|---|---|---|---|---|
| Center Wavelength | nm | 1510 | / | 1590 | Customized |
| -3dB bandwidth | nm | / | 0.25 | / | Customized |
| Accuracy | 1‰ | ||||
| Strain Measurement Range | με | -1500 | / | 1500 | |
| Temperature Range | ℃ | -40 | / | 80 | |
| Insertion loss（IL） | dB | / | 0.5* | / | |
| Dimension | mm | φ12 * 102 | weldable FBG | ||
| 78(L) * 14(W) * 7(H) | Surface Mounted FBG Strain Gauge | ||||
| φ33 * 110 | Embedded FBG Strain Gauge | ||||
| Pigtail Type | mm | Amoured Or Jumper Cable | |||
| Connector | FC/APC | ||||
| Option: with temperature compensation | |||||
| (i.e. built-in 2 fbg inside, one for strain measurement, another for temperature compensation) |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
