Part Number: FT-FBG-Tilt

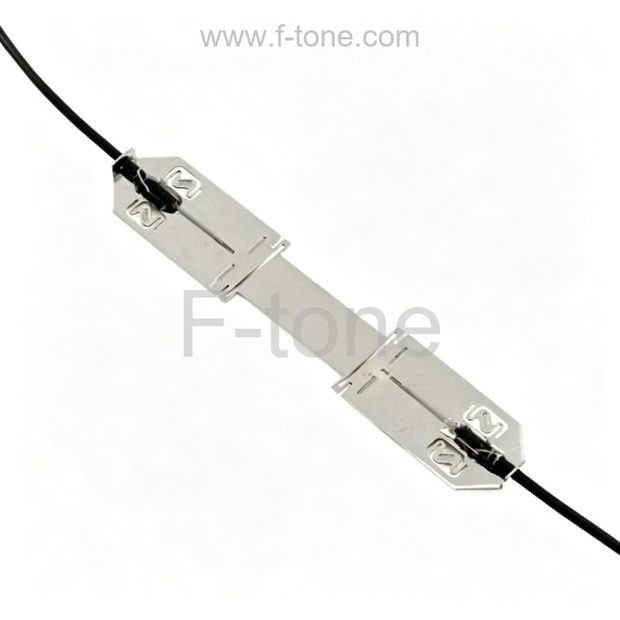

Tilt FBG Sensor
The FBG tilt sensor has a wide application such as bridge, wire pole and high building. The double FBGs are packaged inside the sensor that makes it temperature compensative. It can be cascaded to form sensor array.
Key Features
- Resolution Ratio: 0.2%
- High reliability
- Temperature compensative
- High resolution
Application
- a wide range of slope monitoring applications
Specification
| Parameter | Unit | Minimum value | Typical value | Maximum value |
|---|---|---|---|---|
| Center Wavelength | nm | 1510 | / | 1590 |
| Temp. Operation | ℃ | -25 | / | 80 |
| Range | ±5° | |||
| Resolution | F.S | ≤0.01% | ||
| Accuracy | F.S | ≤0.1% | ||
| Dimension | ℃ | 97*32*106 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
