Part Number: FT-FTP-17DP-E

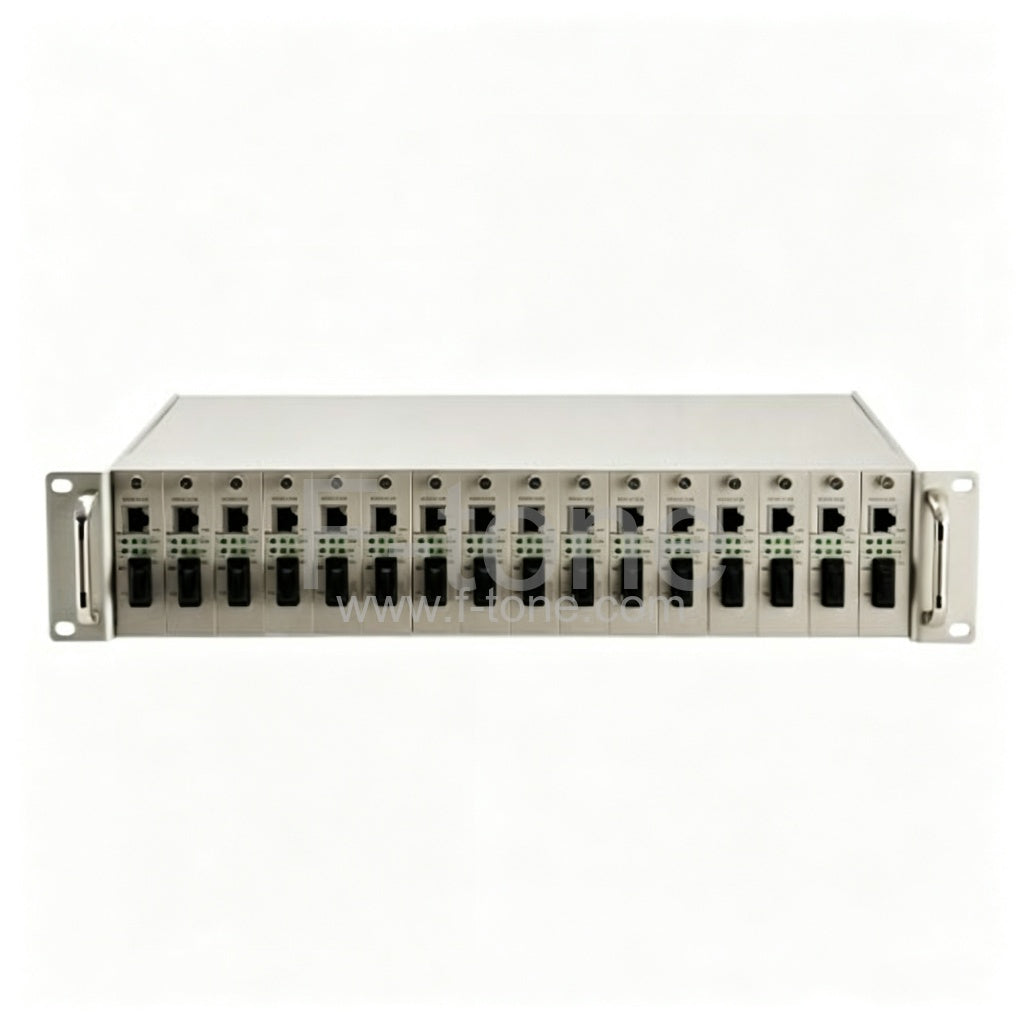

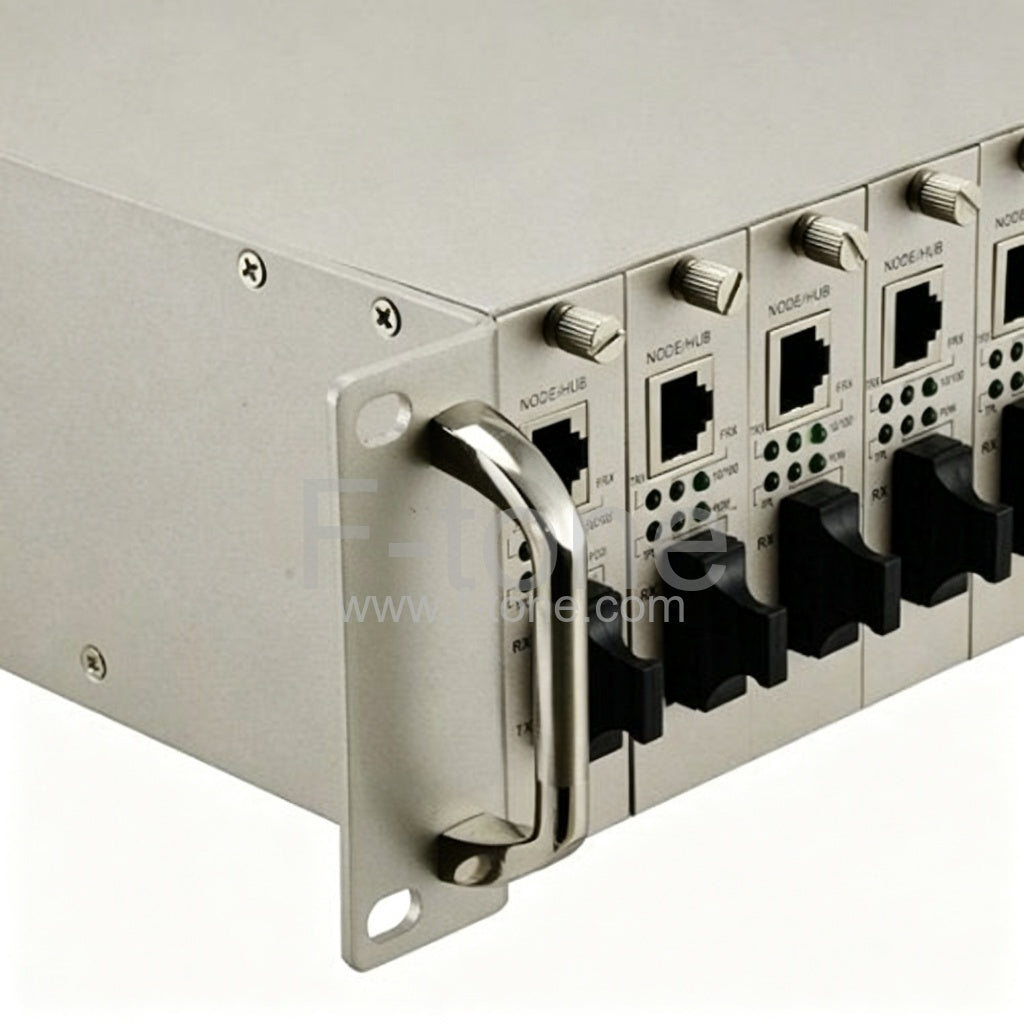

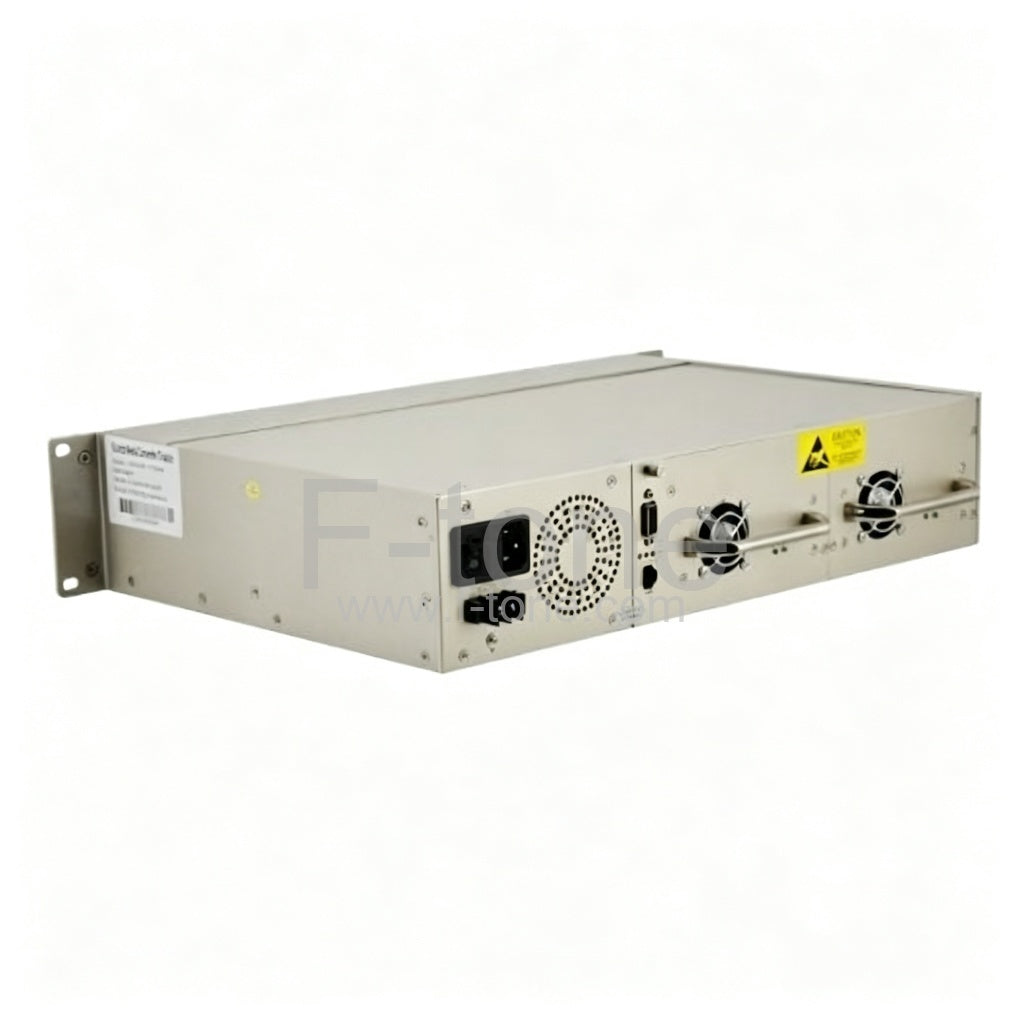

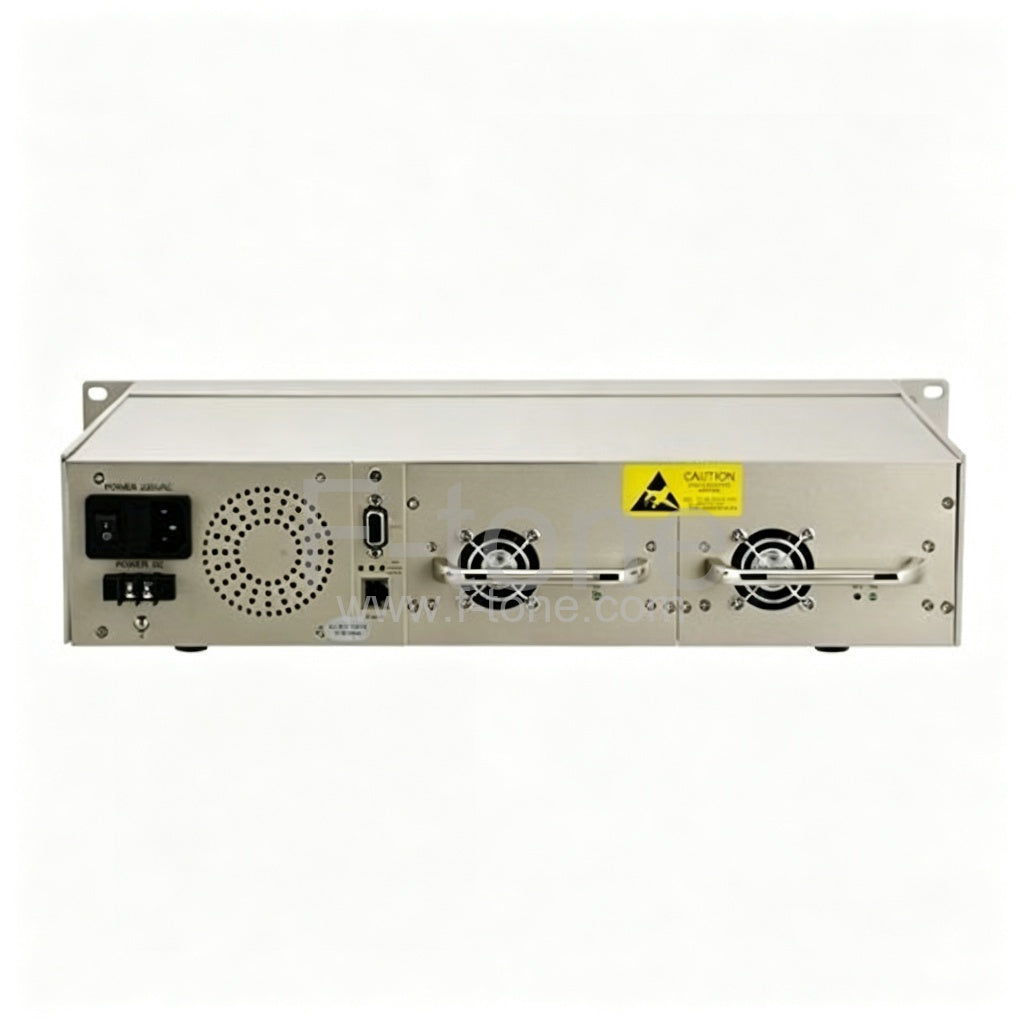

17 Slots 10/100M Managed Fiber Media Converter Rack Chassis
The Chassis-based Media Converters include a number of independent media converters and a chassis capable of housing up to 16 media converters. You can start with single media converters,each equipped with its own housing and AC power adapter. When your requirements grow big, you can mount a chassis in your equipment rack and install your media converters in the chassis. The housing of each media converter can be easily removed, and the media converter PC board can be slid into the chassis.
The chassis lets you install multiple media converters in an equipment rack together with the network devices for which they provide media conversion. This provides for space saving, and the cabling will look neat. The chassis comes with its own universal AC to DC power supply. For maximum power availability, an optional redundant power supply is available for installation in chassis.
F-tone.COM supply one types of rack-mounted chassis for managed media converters: 2-U 17 slots media converter chassis. The 17 slots media converter chassis supports plug-and-play installation of stand-alone media converters convert modules. It can hold at most 16 pieces media converters and 1 piece network management card. The 17 slots media converter chassis media converter chassis should be used with card-type media converters.
Managed 17 Slots Rack Chassis support Card Type 10/100M Fiber Media Converter(not include), Network management card is included
Key Features
- For up to 16 card type 10/100M Media Converters
- Standard: IEEE802.3 10/100 Base T Ethernet, IEEE802.3U, 100Base V TX/FX Fast Ethernet, IEEE802.3 x Flow control, IEEE802.3.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree
- Power configuration: single power supply; or Dual power supply for warm backup mode
- Hot Swap Support for the Converters to ensure a flexible connection
- Equipped with a second, redundant Power Supply for maximum stability and reliability
Applications
- Number of slots: 17
- Media converters adapted: 16 card-type media converters and 1 piece network management card

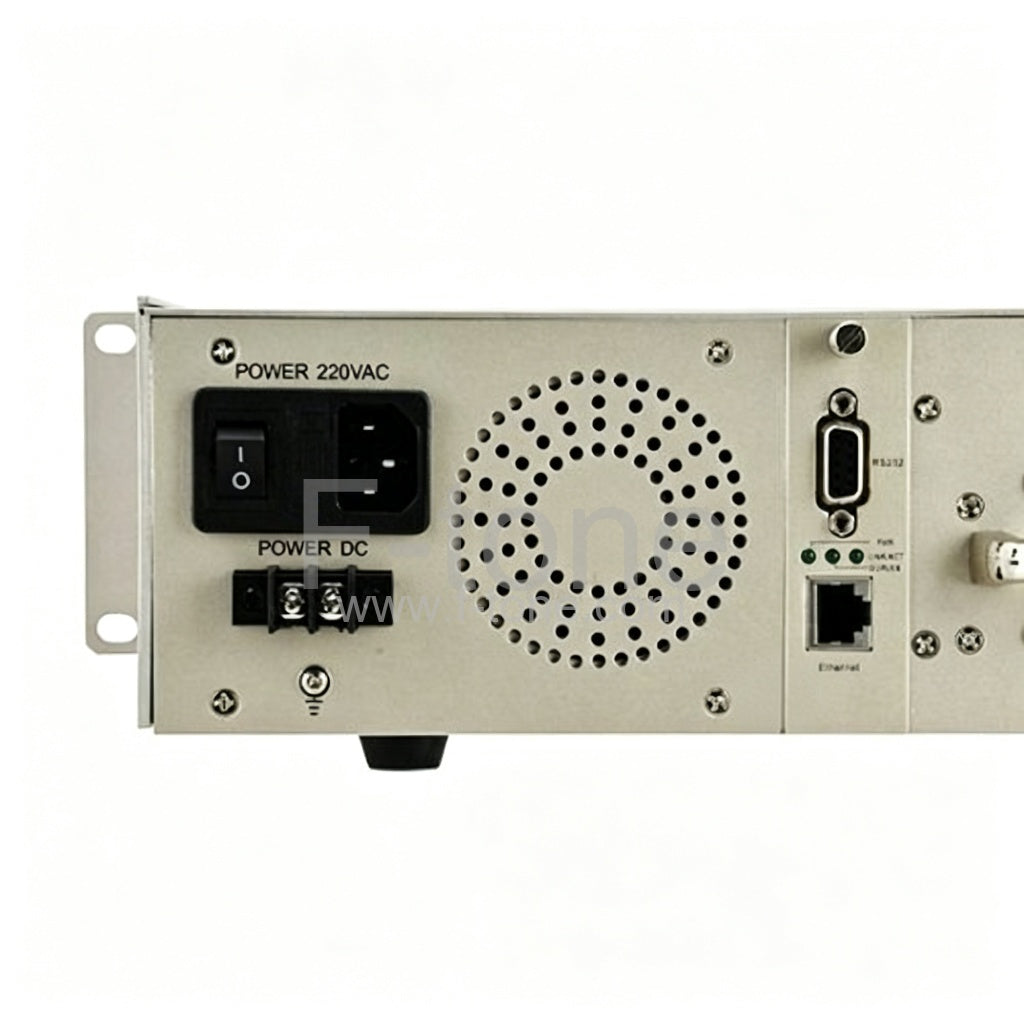

- Power in: AC 100 V~260 V, 50~60Hz ; OR DC 48V
- Power out: DC + 5V , 12A(single power) or 24A(dual power)
- Diameter of DC plug: 2.5/5.5 mm
- Pipple:≤50Mv
- Noise:≤50 Mv
- Protection of power supply: circuit-breaker when over voltage ;circuit-breaker when over flow ;circuit-breaker when short circuit
- Operating Temperature: 0℃~+50℃
- StorageTemperature: -20℃~+85℃
- Relative Humidity: 5%~95%
- Dimensions: L485,W231,H90 mm ;19inches 2U
Label Customized
Note: Neutra or customized label are available per your requirements.please feel free to contact us at [email protected] for more details.
Applications
Note: As you can see in the above application picture, this is a comprehensive system. Please buy the whole set.
Our Comprehensive System of media converter include:
| Part No. | Description |
|---|---|
| 1 | Card Type Managed Media Converter: • Multimode 2km dual fiber • Singlemode 20km single fiber or dual fiber • Singlemode 40km single fiber or dual fiber • Singlemode 60km single fiber or dual fiber • Singlemode 80km single fiber or dual fiber • Singlemode 100km single fiber or dual fiber • Singlemode 120km dual fiber |
| 2 | Standalone Managed Media Converter in Customer Side: • Multimode 2km dual fiber • Singlemode 20km single fiber or dual fiber • Singlemode 40km single fiber or dual fiber • Singlemode 60km single fiber or dual fiber • Singlemode 80km single fiber or dual fiber • Singlemode 100km single fiber or dual fiber • Singlemode 120km dual fiber |
| 3 | 17 slot rack chassis (Inserts up to 16 pieces card type converters): • 10/100M • 10/100M or 10/100/1000M |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
