FVM-105A Portable Auto-Analyzing Fiber End-Face Probe with WiFi Capability

FVM-105A Portable Auto-Analyzing Fiber End-Face Probe with WiFi Capability

View full details

Part Number: FT-FVM-105A

Fiber Inspection Probe with WIFI, FVM-105A Fiber End-face Probe Inspector

This portable WiFi end face probe could acquire clear images of high-resolution in real time on the smart device mobile phone or tablets through WiFi. The images are captured and stored for analyzing. Automatic test results are easy to be saved and transmitted for effective traceability. It greatly improves and expands the applicability of the product, making the end detection process more flexible and convenient.

Main Application

  • Optic network construction / maintenance
  • Data center maintenance
  • High reliable optic fiber connection detection
  • Test in laboratory / factory

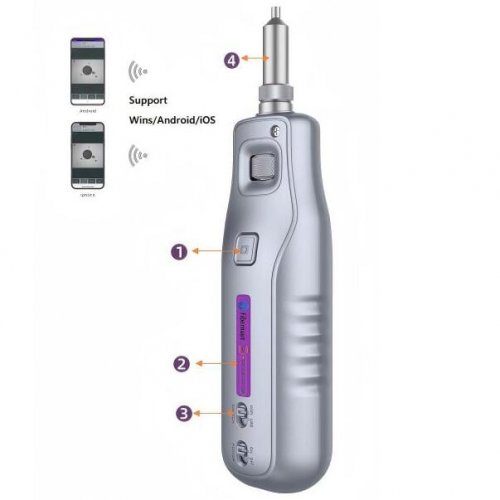

Advantages

  1. ‘One Press’ Auto analyze Automatically output and record Pass/Fail report.
  2. WIFI Status & Battery Indicator Polymer battery offers safe and long service.
  3. Switch between WIFI & USB modes Support different applications.
  4. Various adapters Useful standard adapters Support multi service optic fiber end face test

Features

  • Unidirectional Focus
  • High resolution images
  • Accurate analysis

Function Description

  • Unidirectional Focus,
  • 200 Magnifications, clear images of high resolutions,
  • Work with different adapters to fulfill various applications,
  • Images / test reports can be stored in devices or derived,
  • Auto analyze conforms with IEC standard

The software saves Pass/Fail test reports automatically

  • Support Wins/Android/iOS systems,
  • Support USB / WIFI transmission,
  • Polymer Lithium battery safe and durable,
  • Portable and easy operation,
  • Support multi service optic fiber end face test

App Software Function

End face test App (Android/ios) works with TQ-FVM105A inspection probe. It includes functions of observation, setting, image capture and test. Along with the automatic detection application installed in intelligent mobile devices, it can flexibly cope with the on-site environments. The test report for clear image of high resolutions could intuitively and quickly complete the evaluation of connector end faces.

Powerful end face view & analyze function

  • Support Wins/Android/iOS systems
  • Automatically save Pass/Fail test reports
  • Friendly interface & Easy operation
  • Comprehensive reports for future review

Application Demo


200 Magnifications

‘One Press’ test result

Auto analysis report

Save image/test report

Parameters

Specifications:

Configuration & Ordering：


This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
