Part Number: FT-MEMS-VOA

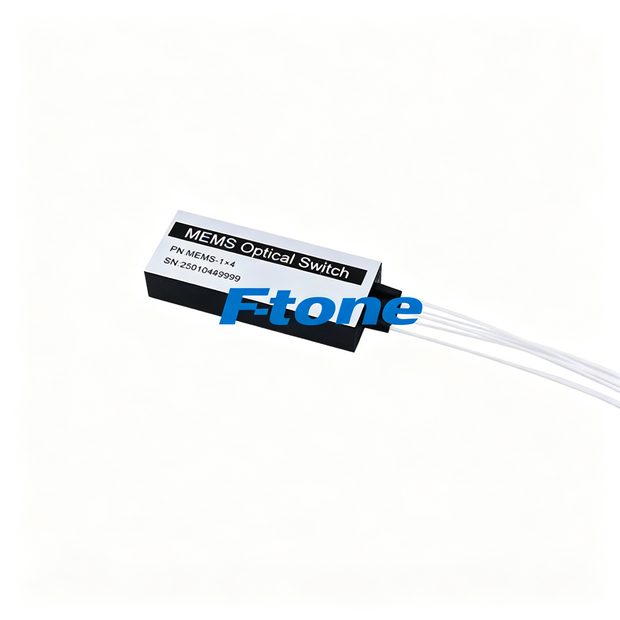

MEMS Single-mode Variable Optical Attenuator

F-tone’s designs and manufactures innovative, photonic integrated circuit (PLC)based MEMS (micro electro-mechanical systems)Variable Optical Attenuator for next generation, dynamically configurable optical networks.

F-tone’s MEMS products base on electrostatic MEMS technology, The reflective mirror MEMS technology enables the creation of products with high attenuation levels and can be capabilities, this results in a new category of MEMS components that are designed to exceed specifications for performance, compactness, manufacturability and reliability.

Features

  • Low insertion loss
  • Low polarization dependent loss
  • Compact design
  • Low power consumption
  • Insensitive to shock and vibration
  • Telcordia GR-1221-CORE&RoHS compliance with
  • Operating wavelength: C band(1530-1570nm)
  • Attenuation type: Bright
  • Drive Voltage: 6 V
  • Fiber Type: 900um fiber
  • Fiber Length: 1.0m
  • Connector Type: None

Applications

  • Power control and equalization in multi channel systems
  • Gain-tilt control in EDFAs
  • Receiver protection
  • OADM

Dimensions Diagram

Warm Note




MAKE TO ORDER (Options)

  • The price here is just the VOA-C-B-6-T-10-0 type, if you need other types, please contact our sales. At the same time, we also offer multimode Type, should you have this needs, please contact our sales
MS=MEMS Operating Wavelength Attenuation Type Drive Voltage Fiber Type Fiber Length Connector Type
  • • V=Variable
  • • O=Optical
  • • A=Attenuator
  • • C=C Band
  • • L=L Band
  • • B=Bright
  • • D=Dark
  • • 6=6V
  • • 15=15V
  • •B=250um fiber
  • •T=900um fiber
  • • 10=1.0m
  • • 15=1.5m
  • • 0=None
  • • 1=FC/UPC
  • • 2=FC/APC
  • • 3=SC/UPC
  • • 4=SC/APC
  • • 5=LC/UPC
  • • 6=LC/APC

For assistance customizing your MEMS Variable Optical Attenuator, please call us at +86-1-86-2786-1199 or email to [email protected].

Parameter Unit Specification Note
WavelengthRange nm 1530-1570 Cband
1570-1610 Lband
AttenuationType BrightorDark
AttenuationRange dB ≥30
BlockingStateAttenuation dB ≥40 Darktype
InsertionLoss dB ≤0.7(0.5Typical) ExcludingConnectors
AttenuationResolution Continuous
WavelengthDependentLoss dB ≤0.3 @＜0dBAtt.
≤1.5 @＜20dBAtt.
Ripple dB ≤0.05 Within0.4nmwindow@20dB
PolarizationDependentLoss dB ≤0.1 @＜0dBAtt.
≤0.3 @＜20dBAtt.
TemperatureDependentLoss dB ≤0.7 @＜0dBAtt.comparewithRT
≤1.0 @＜20dBAtt.comparewithRT
ReturnLoss dB ≥45
PMD ps ≤0.1
ResponseTime ms ≤3
OpticalPowerHandling mW 300
DrivingVoltage VDC 6.5Vor15V
VoltageRange VDC ≤6.5Vor≤15V
PowerConsumption mW ≤2
OperatingTemperature ºC 0to70
StorageTemperatureRange ºC -40to85




This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
