Part Number: FT-OLP-4U

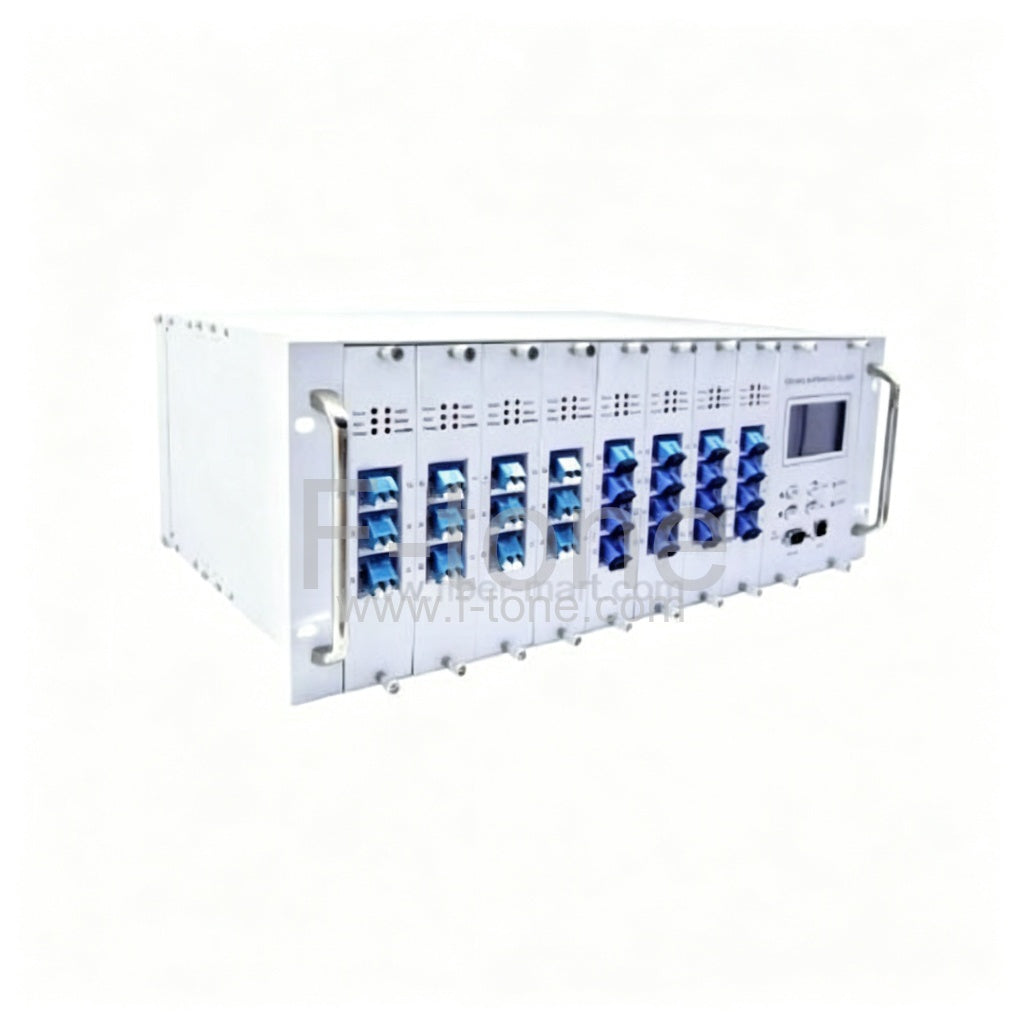

4U Empty Rackmount Chassis To Hold 8 Pieces Optical Link Protection OLP Card
4U Rack Chassis Carrier-Class Optical Protection Platform
F-tone’s 4U rack chassis FT-OLP-4U is a carrier class platform supporting a family of modular optical protection systems offering high versatility, extensibility, availability and port density. The result is cost-effective protection architecture, to meet the needs of carriers, IXC, private network operators and enterprises.
The 4U rack-mountable chassis containing 8 slots can hosts a variety of hot-swappable optical protection modules (OLP Cards), one or two redundant power supplies and control modules. The modular architecture of the FT-OLP-4U rack chassis offers low up-front cost and allows user to expand the system as their needs increase.
Key Features
- 4U configuration supports up to 8 protection modules
- Hot swappable plug in modules
- SNMP Remote network management
- Dual Power supply
- Peak performance and increased security
- Supports various protection schemes and applications within the same platform
- Dedicated protection applications: Fiber Link, equipment and optical channel (OCh)
- Shared protection applications
Application
Dimension
For more detailed information or any custom requirements, please contact with F-tone sales team at [email protected].
| Parameter | Specification |
|---|---|
| Slots | 8 |
| Color | Silver |
| Switch | Power ON/OFF, Alarm & Systen reset |
| Cooling fans | With |
| Power Supply | A C 220V (Range: 100V~276V) DC 48V (Range: -35V~70V) |
| Insertion Loss | <1.5dB (1:1 protected) <4.5dB (1+1 protected) <1.5dB (1-1 protected) |
| Operating Temperature | 0~55°C |
| Storage Temperature | -20~+60°C |
| Operating Humidity | 5%~95% no condensation |
| Dimensions | 483mm(W) x 300mm(D) x 177mm(H) |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
