Part Number: FT-OTDR-BOX-SM-10

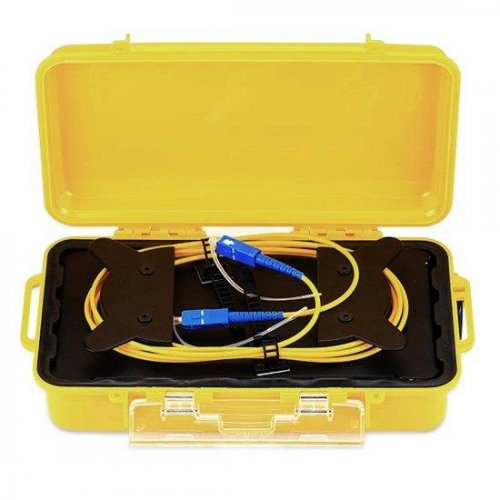

Fiber Optic OTDR Launch Cable Box, Singlemode, SC/UP-SC/UPC
An OTDR launch cable, fiber optic launch box, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection. It is often available on a small spool or within a "launch box", which is used to create the proper conditions for testing another similar optical fiber for faults. This method avoids undesirable variations in loss and distance measurements. A launch fiber will help to overcome the blind spot or Dead Zone of an OTDR brought about by high launch power or faults near the launch end of the fiber.
| Fiber Type | 9/125 Singlemode | Length | 10km |
|---|---|---|---|
| Connector 1 | SC/UPC | Connector 2 | SC/UPC |
| Material | SR Polypropylene | Typical Loss | < 0.5dB@1310nM for 1000 meters |
| Operating temperature | -40 +55C | Dimension | 238x141x66mm |
Product Highlights
Fiber Optic OTDR Launch Cable Box
- Place the necessary length of fiber between the OTDR and the fiber-under-test
- Help to make a more precise measurement with an OTDR
- Discloses the insertion loss and reflectance of the near-end connection
-
- Robust Metal Retracter
Make the box easy to carry in actual testment.
-
- Built-in Cable Management
Helps to reduce cable stress and save space.
-
- Auto Purge Valve
Elaborate air vent valve regulates the pressure automatically.
On the Importance of Craftmanship Delicate internal structure
Non-Metal construction will not dent, corrode, or conduce electricity
On the Importance of Real Testment Readily carried with compact size and light weight
Excellent assistant for an OTDR testing in various fiber optic applications
Extensive Applications Widely used with OTDR to help minimize measurement uncertainty indoor or outdoor
Test the comprehensive performance of newly installed fiber links and detect problems in the existing fiber links
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
