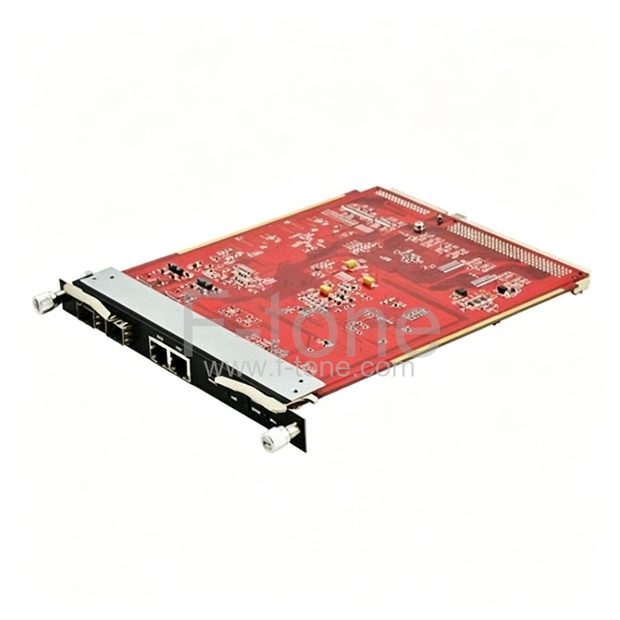

Packet-Optical Transport Platform

Part Number: FT-P-OTP800-11S-P

2RU 19” FT-P-OTP800-11S Packet-Optical Transport Platform with 8 Slots Available for a Mixed Insertion of System Control, OEO, OLP, TMUX Service Cards

F-tone’s Packet Optical Transport Platform 800 family(FT-P-OTP800 family) is a portfolio of Packet Optical Transport Platforms that offers
operators multi-service delivery solution for a vigorous demands of emerging consumer and business applications without additional costly
fiber optic routes.
The FT-P-OTP800 family mainly includes a series rack mounts and service cards. The rack mounts, based on the latest innovations in packet
and optical technologies, provide tremendous capacity and flexibility that enable a coexistence of different service cards (2.5G/10G OEO, OLP
and 2.5G/10G TMUX ). With a mixed configuration of different service cards, the FT-P-OTP800 family can be the core of a WDM/SDH network
for the extension of transmission distance and management of whole systems .
This model FT-P-OTP800-11S is a 19-inch 2U rack mount design with eight slots, including slot 1 for a system control card; slot 2 to slot 7
for service cards; slot 9 and slot 10 only for housing power supply cards; slot 11 only for housing the fan card. It supports a single redundant
power supply (AC/DC optional).

Key Features

• High-compact P-OTP optimized for deployment as an optical transport-only platform
• Supports a mixed and hot-swap insertion of OEO, OLP, 2.5G/10G TMUX service cards.
• Supports wavelength conversion or optical power amplification of 56 2.5G ports and 28 10G ports in full configuration.
• Simplify end-to-end service deployment and orchestration across multi-vendor, multi-domain networks.
• Supports the service flexibility required in today’s rapidly evolving networks.
• Supports unidirectional transmission over one single fiber, bidirectional transmission over one single fiber or over two fibers etc.

Application

• WDM systems
• Sonnet/SDH systems
• High-speed transmission systems

Rack Mount Specification

Notes:
1. For FT-P-OTP-11S, Slot 9 and Slot 10 are fixed to house the power supply cards; Slot 11 is fixed to house a pluggable fan card.
2. F-tone provides freely customized rack mounts in accordance with your special requirements. You can email [email protected] or call us at +1-86-2786-1199 for detailed drawing.

FT-P-OTP800 Service Cards Series

Please Notes:
1. The specification may be slightly changed without notice
2. F-tone offers Customize Service Cards for any signals that you need to transport. For more details, please email [email protected] or call us at +1-86-2786-1199.

FT-P-OTP800-11S Platform for Diverse Service Cards

Mechanical Figure of FT-P-OTP800-11S Front Panel


Attention:
1. All the service cards must be installed horizontally in FT-P-OTP800-11S transport platforms.
2. System control card must be installed in slot 1 of FT-P-OTP800-11S.

Typical Application Case

Solution details: 120KM Transmission without any relay stations
The application figure shows the 12 channels of 10G optical signals can be transmitted as unidirectional up to 120km distance through a single standard optical fiber.
1. In location A, standard wavelengths of 12 channels of 10G optical signals are converted into DWDM wavelengths by three FT-P-OTP800-OEO(10G) cards in a FT-P-OTP800-11S platform.
2. Then, 12 channels of 10G DWDM optical signals are multiplexed to a standard single-mode optical fiber by connecting to a DWDM MUX(XMS-1RU-1-FTDWDM)
3. After the 12 channels of optical signals reach Location B, a pre-amplifier ( DWDM-EDFA-PA-XX) will be used to amplify optical power and a DCM( FT-DCM-XX) will be used to compensate the dispersion.
4. The 12 channels of DWDM optical signals will be de-multiplexed by a DWDM DEMUX(XDS-1RU-1-FTDWDM)
5. 12 channels wavelengths of 10G DWDM optical signals are converted to standard wavelengths by three FT-P-OTP800-OEO(10G) cards and received respectively by end devices.
Warm Tips:
a. The above scheme just shows the transmission of one-way data.
b. A system control card (FT-P-OTP800-SC) must be installed in the slot 1 and a optical protection card (FT-OEO800-OLP-1+1) in the slot 2 of FT-P-OTP800-4S platform to manage and protect the whole system.
c. "X" in XMS-RU-1-FTDWDM and XDS-RU-1-FTDWDM means the number of channels; "XX" in DWDM-EDFA-PA-XX indicates the gain value; "XX" in FT-DCM-XX refers to the physical compensation distance.

Rack Mount Specification

Notes:
1. Fan Board is only for FT-P-OTP800-11S
2. F-tone provides freely customized rack mounts in accordance with your special requirements. You can email [email protected] or call us at +1-86-2786-1199 for detailed drawing.

This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
