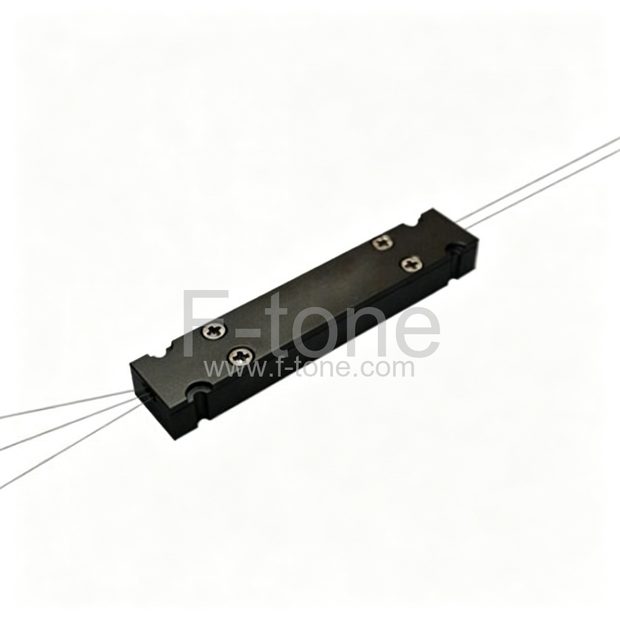

Multimode Pump and Signal Combiners (2+1)x1 Type B

Multimode Pump and Signal Combiners (2+1)x1 Type B

View full details

Part Number: FT-PC-(2+1)x1-50W-B

(2+1)x1 Multimode Pump and Signal Combiner

(2+1)x1 Multimode Pump and Signal Combiner can be used for high power fiber laser and fiber amplifier, which can combine 2 pump lasers and 1 signal channel into one fiber and create a high power pump laser source for fiber laser and fiber amplifier. In addition, Pump fiber, signal fiber and output fiber type and the configuration can be customized, need more details, please contact at [email protected].


Applications

  • High Power All-Fiber Lasers
  • High Power Fiber Amplifiers
  • Medical, industrial, defense

Features

  • Signal Operating Wavelength:
  • High Signal Transfer Efficiency
  • High Pump Efficiency
  • Wavelength Insensitive
  • Custom Configurations Available

Product specifications

  • Signal Operating Wavelength: 1000-1200nm
  • Pump Operating Wavelength: 800-1000nm
  • Configuration: (2+1)x1
  • Pump Fiber (core/clad, NA):105 /125μm 0.22NA
  • Signal Input Fiber (core/clad diameter NA):20um/130umGDF 0.08/0.46
  • Output Fiber (core/clad, NA):20um/130um GDF 0.08/0.46NA
  • Power per Multimode Input: 25W
  • Total Input Power: 50W
  • Fiber length: 0.8m
  • Package Dimension: 70×12×8mm


Parameter (2+1) ×1 (2+1) ×1 (2+1) ×1 (2+1) ×1
Signal Operating Wavelength 1000-1200nm 1000-1200nm 1000-1200nm 1000-1200nm
Pump Operating Wavelength 800-1000 nm 800-1000 nm 800-1000 nm 800-1000 nm
Pump Input Fiber core/clad diameter NA 105 /125 μm 0.22 105 /125 μm 0.22 105 /125 μm 0.22 105 /125 μm 0.22
Signal Input Fiber core/clad diameter NA 10/125umGDF 0.08/0.46 20um/130umGDF 0.08/0.46 25/250umGDF 0.07/0.46 30/250umGDF 0.06/0.46
Output Fiber core/clad diameter NA 10/125umGDF 0.08/0.46 20um/130umGDF0.08/0.46 25/250umGDF 0.07/0.46 30/250umGDF 0.06/0.46
Power per Multimode Input 25W 25W 25W 25W
Total power 50W 50W 50W 50W
Signal Insertion Loss ≤0.5dB ≤0.5dB ≤0.5dB ≤0.5dB
Pump Efficiency ≥90% ≥90% ≥90% ≥90%
Optical Isolation 35dB 35dB 35dB 35dB
Mechanical Specifications
Package 70×12×8mm 70×12×8mm 70×12×8mm 70×12×8mm
Fiber Length ＞800mm ＞800mm ＞800mm ＞800mm



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
