Part Number: FT-S5863-48U4SX2Q

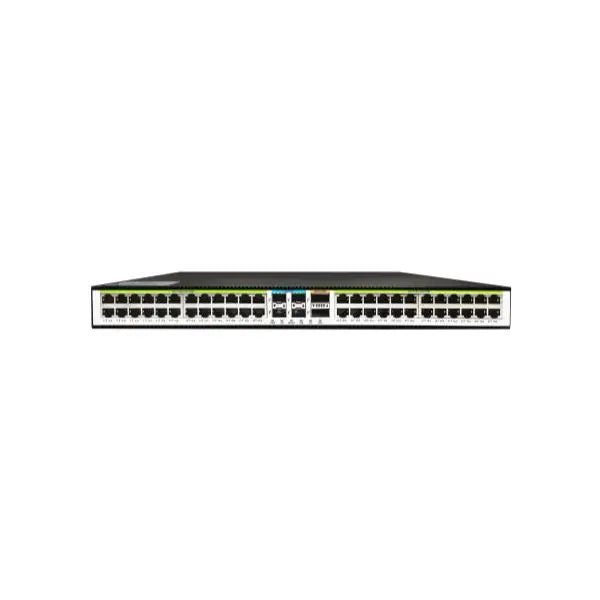

Layer3 S5863 Series Managed Ethernet Switch
The S5863-48U4SX2Q is a high-performance 10G switch with 48*1G/2.5G/5G Base-T ports, 4*1G/10G SFP+, and 2*40G/100G QSFP28 uplinks. It supports full L2/L3 wire-speed forwarding, IPv6, ACL, and security features while autodetecting optics. Ideal for enterprise, data center, and metro networks, it offers high-density 5G connectivity and flexible 10G/100G uplinks for aggregation, access, or core deployments.
Features
● 48*1G/2.5G/5G Base-T; 4*1GE/10GE SFP+
● 2*40G QSFP+ /100G QSFP28 uplink port
● 960Gbps switching capacity
● Support Dual-FRU AC or DC redundant power supply
● Layer3 static & dynamic routing
● VxLAN, virtual stacking suppor
Application Solution
Specifications
| Attribute | S5863-48U4SX2Q |
|---|---|
| Interface | 48*1G/2.5G/5G Base-T; 4*1GE/10GE SFP; 2*40GE/100GE QSFP28 |
| Fan Slots | 2*Modular Fan Supply |
| Switching Capacity | 960Gbps |
| Forwarding Rate | 714Mpps |
| MAC | 32K |
| RAM/Flash | RAM: 1GB; Flash: 8GB |
| Packet Buffer | 144Mbit |
| Power Supply | Support FRU 1+1 redundant power supply； AC: 100~240V; 47~63Hz DC: -20~-60V |
| Power Consumption | ≤150W |
| Dimension (L*W*H) | 440*410*44(mm) |
| Weight | ≤9KG |
| Environment Temperature | Working Temperature: -10℃~ 50℃ Storage Temperature: : -40℃~ 70℃ Relative Humidity: 5%~95%, non-condensing |
| Software Features | |
| VLAN | MAC and protocol VLAN; Support dual Tag VLAN, Access/Trunk/Hybrid |
| Ethernet | Support Jumbo Frame; Port enable/disable; Port-isolate |
| VxLAN | Support |
| Port Aggregation | Static link aggregation; Support dynamic LACP |
| Mirroring | Supports multi-port mirroring analysis |
| ACL | Support standard and extended ACL |
| QoS | SP + WRR mixed scheduling |
| Layer 3 | Support ARP learning and aging; Support IPv4/IPv6 static route |
| Security | RADIUS; TACACS+; Authentication |
| IPv4/v6 dual stack | Support |
| Layer3 Routing | Static/dynamic routing, RIP/OSPF/BGP |
| Virtual Stacking | Support |
Product Features
| Stability | QoS Capabilities |
|---|---|
| ● Linux operating system ● IPv4/IPv6 dual protocol stack platform ● STP/RSTP/MSTP/ERPS/LACP etc. |
● Support port speed and flow speed limit ● Support Service flow and QoS flow control ● Support SP/WRR/SP+WRR ● Support port-based and service flow-basedmirroring functions |
| Safety Mechanism | Routing Protocol |
| ● Support ACL security filtering mechanism based on MAC, IP, L4 port ● Support Anti-ARP & User Blocking function ● Support DHCP attack automatic protection ● Support DDOS and virus attack protection ● Support DHCP/IP/802.1X etc. ● Support BFD, FlexLink, LACP and ERRP etc. ● Support Remote Loop Detection function ● Support CFM、EFM ● Support Tacacs+, Radius, and Local user authentication |
● Support Static Route ● Support RIP, OSPF,BGP, ISIS ● Support IPV4/IPV6 dual protocol stack ● Support RIPng、OSPFv3 |
| Multi-service Capabilities | Network Management |
| ● Support DHCP Server and DHCP Relay ● Support L2-Tunnel ● Support Ethernet OAM protocol (CFM、EFM) |
● Support CLI based on RS232 serial port, Telnet and SSHv2 ● Support RFC1213 SNMP ● Support WEB-based configure operation ● Support SNMP V1/V2/V3 ● Support FTP & TFTP remote upgrade and download |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
