O band 12dB Gain 1310nm Semiconductor Optical Amplifier

O band 12dB Gain 1310nm Semiconductor Optical Amplifier

View full details

Part Number: FT-SOA-G12

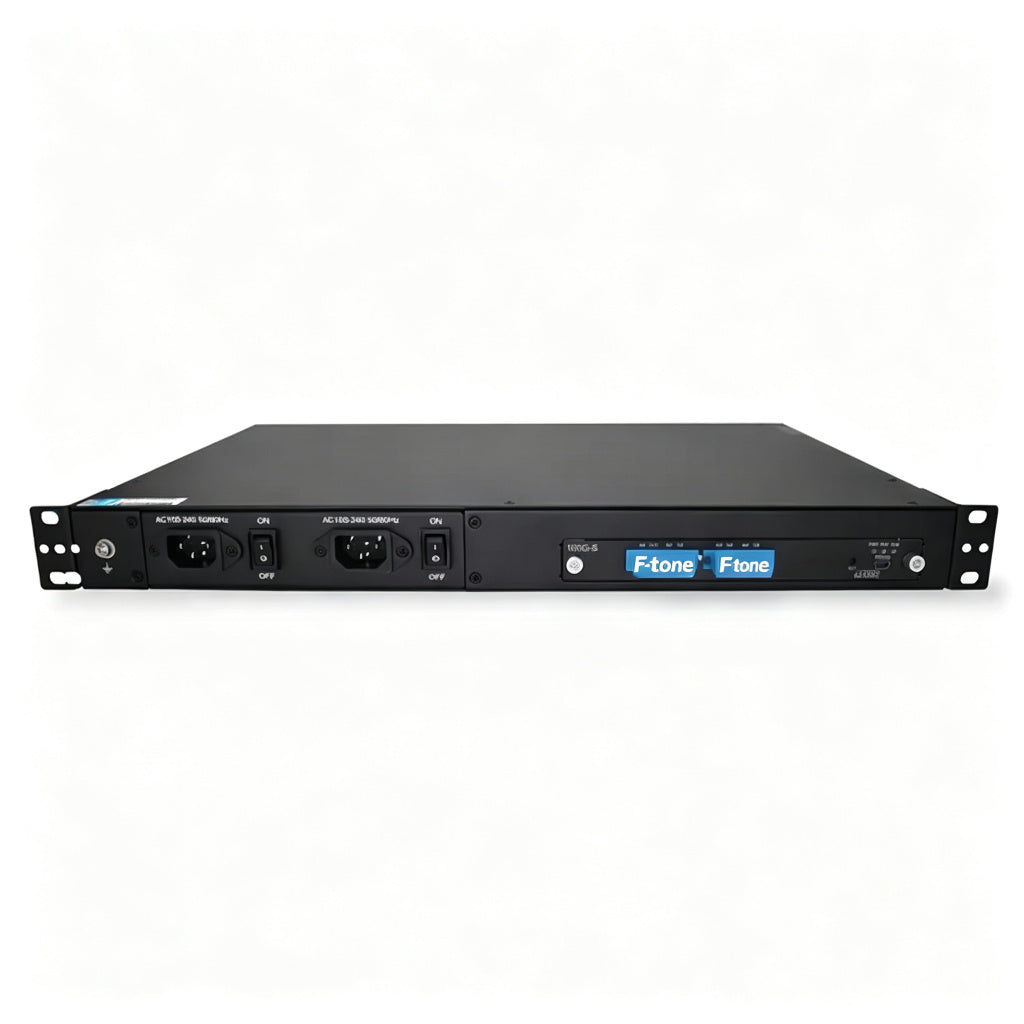

Semiconductor Optical Amplifier 12dB Gain 1310nm

Design of SOA optical fiber amplifier for signal amplification with 1310 wavelength band, the transparent transmission protocol,

suitable for high speed signal amplification (10Gbps) etc.. The stability SOA Pump optical laser and unique ATC (automatic temperature control)

and APC (automatic power control) circuit are employed in it as the key component to ensure the high stability and reliability of output power.


Features

  • Input power: -20~+6dBm
  • Typical input power:-4dBm
  • High-performance dual-pluggable power supply: 110V/220V mixed with 48V
  • Complete network management interface: Ethernet, RS-485, RS-232 interface
  • Support Telnet and SNMP Network management
  • High Precise AGC and APC Circuit: Typical power control accuracy is ±0.05dB
  • High Precise ATC Circuit: Typical temperature control accuracy is ＜±0.1℃
  • High stability and reliability: MTBF＞150000 hours
  • All performance compatible with BellcoreGR-1312-CORE request
  • Intelligent Temperature Control System:using a dedicated Temperature control chip which make cooling and power loss reduce 30% thancompetitors


Mechanical Structure

1U 483*236*44 mm




Specification

Parameter Symbol Min Typ Max Unit
Operating Wavelength λc 1290 1310 1330 nm
Saturated output power（1） Po ------ ------ 8 dBm
Input Power Pi -20 -4 6 dBm
Gain G ------ 10 12 dB
Noise Figure NF ------ 6 8 dB
Output Power Stability ΔPo ----- ±0.05 ±0.1 dB
Input Isolation ISOi 30 ------- ------ dB
Output Isolation ISOo 30 ------- ------ dB
Return Loss RL ------- ------- -45 dB
Polarization Dependent Gain PDG ------ ------- 0.3 dB
PMD PMD ------ ------- 0.5 ps


Environmental Performance

Parameter Symbol Min Typ Max Unit
Operation Temperature Tw -5 ----- 60 ℃
Storage Temperature Ts -40 ----- 80 ℃
Humidity(2) ------ 10 ------ 85 %


Electrical Characteristics

Parameter Symbol Min Typ Max Unit
Power Voltage Vps 85/170 110/220 132/264 VAC
Power Consumption P ----- ----- 18 W





This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
