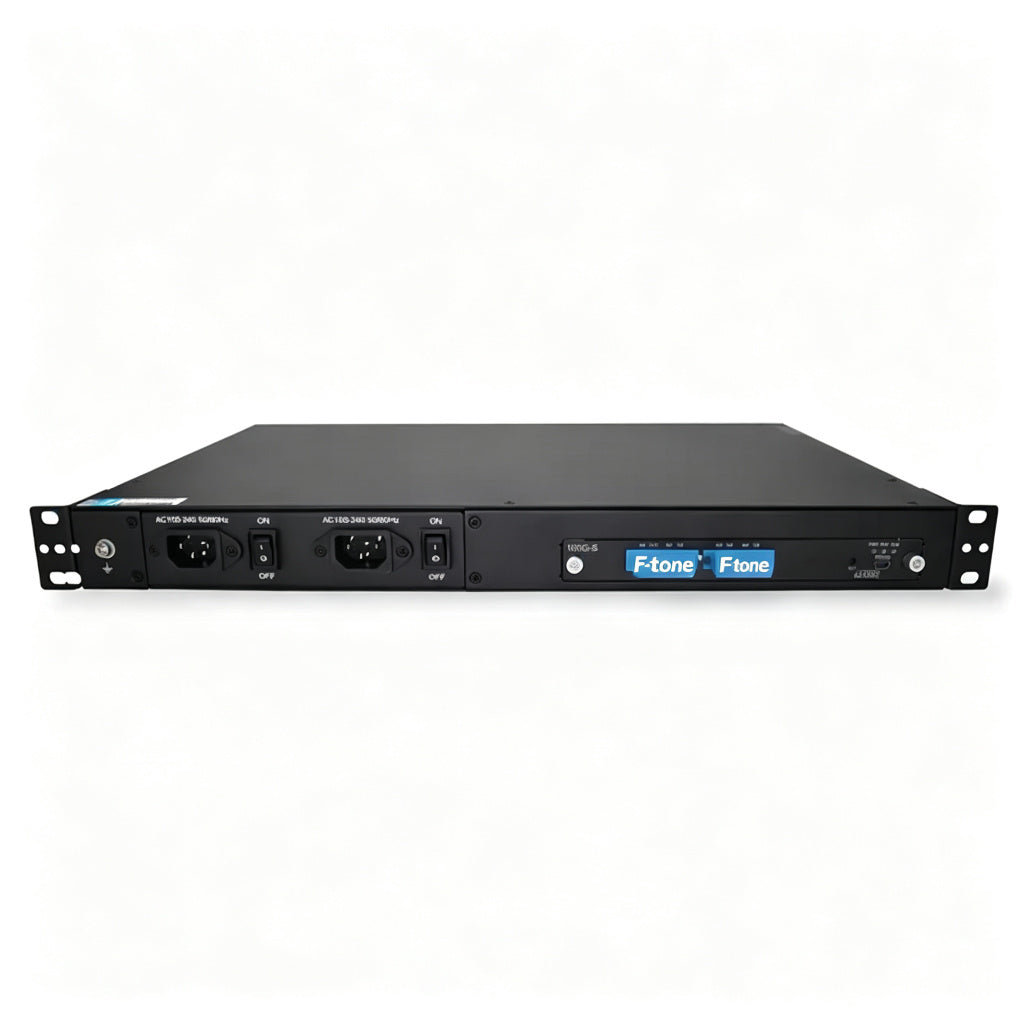

Part Number: FT-SOABF-13-G18
Semiconductor optical amplifier MSOA-1310
Description
The MSOA-1310 semiconductor optical amplifier addresses new areas in the optical amplification market. The technology is based on well‐known semiconductor laser technology and packaging techniques, and offers a low‐cost alternative to conventional fiber amplifier solutions. SOA can operate at any wavelength and it is very suitable for use in 40G/100G signal amplifying.
Features
- 40G and 100G O‐Band(1310nm) amplifiers
- 14‐Pin MSA package
- Low Noise Figure & Low polarization dependence
- >1m SMF-28 250µm fiber with FC/APC connector
Absolute Maximum Ratings（T=25 °C）
| Item | Symbol | Rating | Unit |
|---|---|---|---|
| SOA Forward Current | IF | 350 | mA |
| SOA Reverse Voltage | VR | 2 | V |
| Storage Temperature | Tstg | -40 to +85 | deg.C |
Specification
| Parameter | Symbol | Min | Typ | Max | Unit | Note |
|---|---|---|---|---|---|---|
| Case Operating Temperature Range | Tcase | -15 | 65 | ºC | T=25 ºC, IF=200mA | |
| Forward Current | IF | 150 | 250 | mA | ||
| Reverse Voltage | VREV | 2 | V | |||
| Fiber pigtail bending radius | R | 35 | mm | |||
| Tensile strength fiber to case | F | 5 | N | |||
| Operation Wavelength | l | 1280 | 1330 | nm | ||
| Gain bandwidth | BW | 45 | nm | 3dB bandwidth | ||
| Gain | G | 18 | dB | |||
| Gain Ripple | ΔG | 0.2 | 0.5 | dB | ||
| 3dB saturation output power | P3dB | 8.5 | dBm | |||
| Polarization dependent gain | PDG | 1.0 | 2.0 | dB | ||
| Optical noise figure | NF | 6.5 | 8 | dB |
|
|
| Forward Voltage | VF | 2.5 | V | |||
| Thermistor resistance | R | 9.5 | 10 | 10.5 | kW | |
| Cooler current | Icool | 1.1 | 1.5 | A | ||
| Cooler voltage | Vcool | 3.0 | 3.7 | V |
Dimensions and PIN
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
