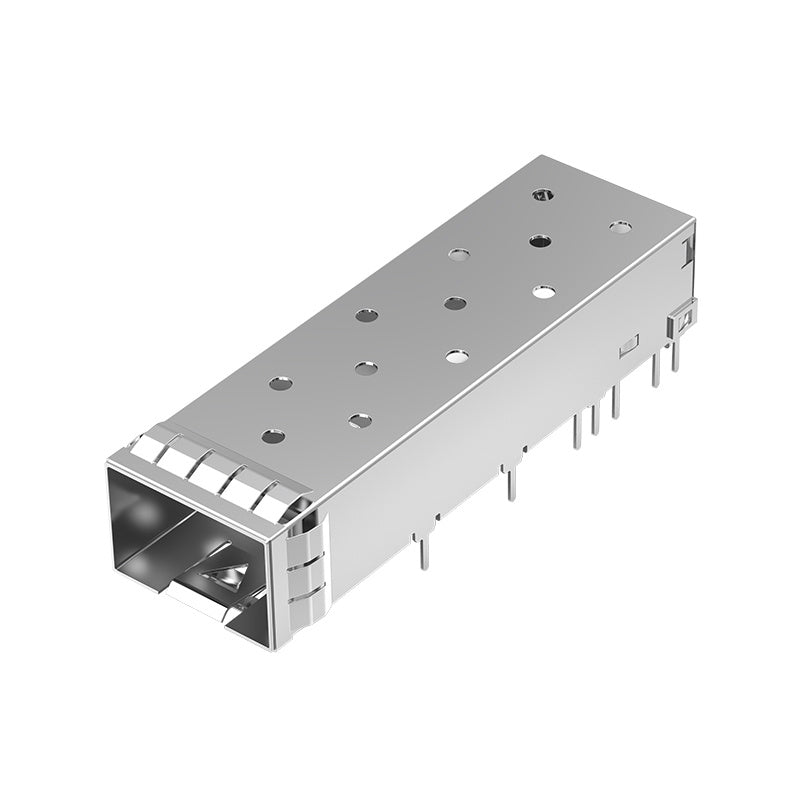

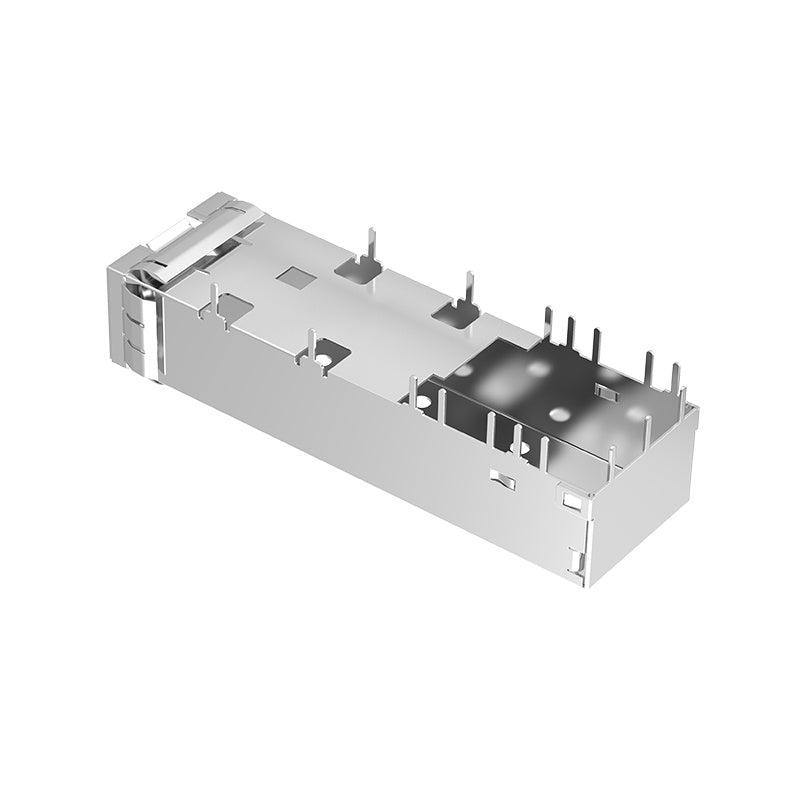

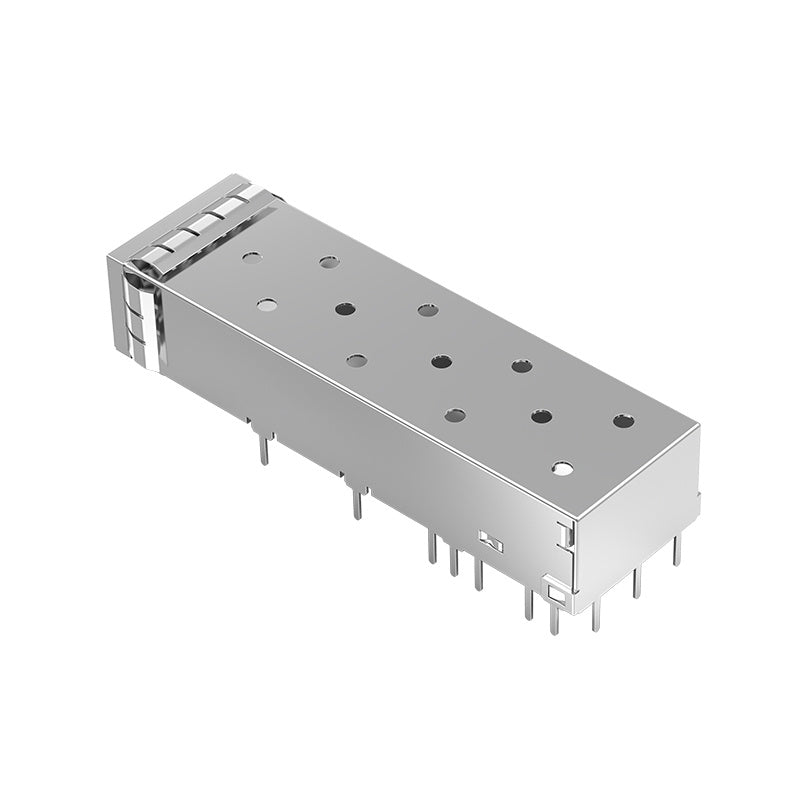

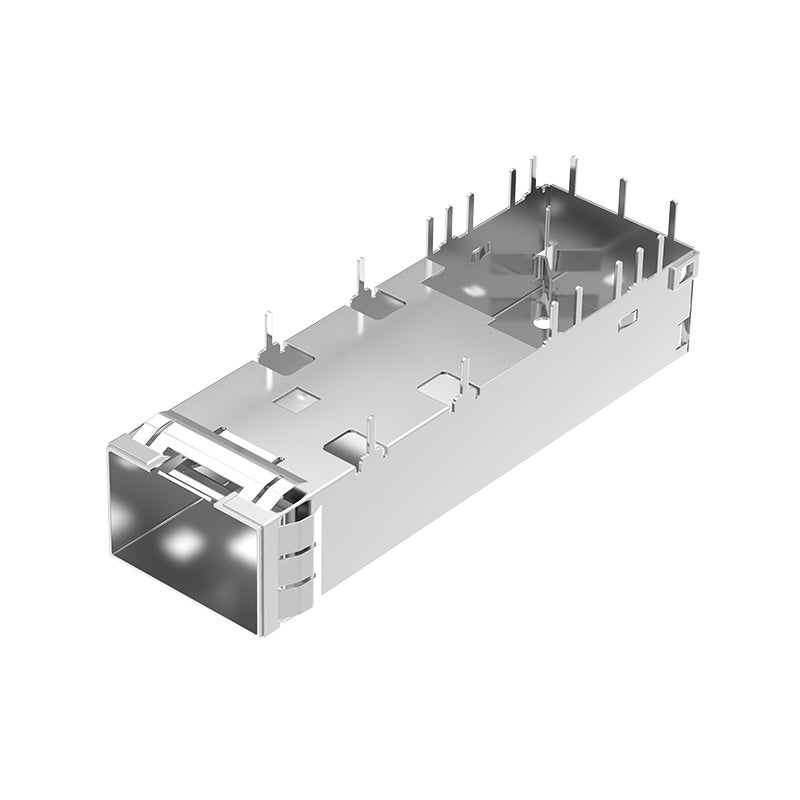

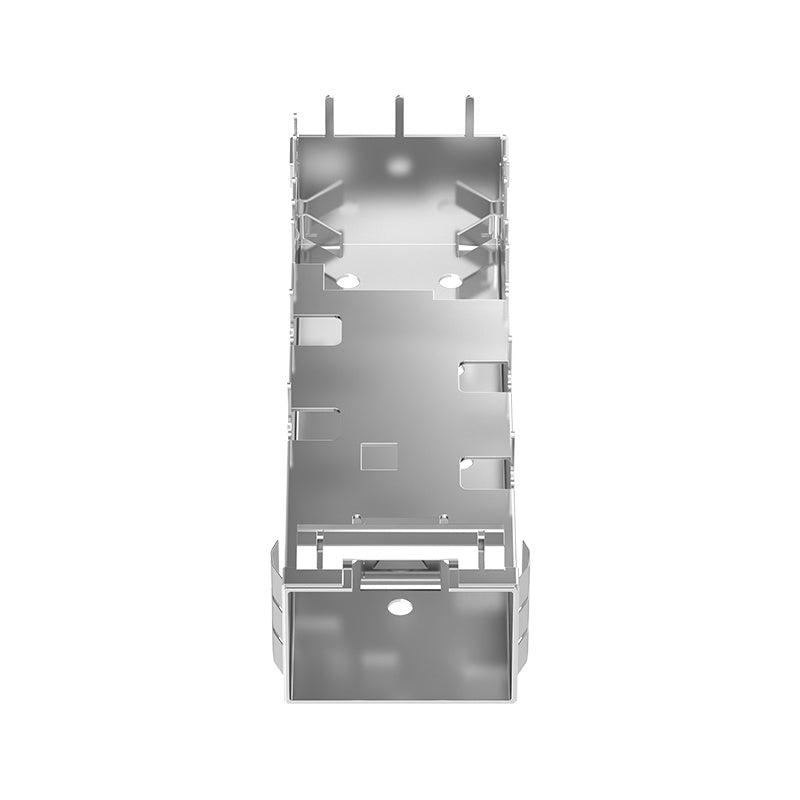

F-tone FT11BCS1000 SFP 1x1 Cage Solder Through Hole Right Angle

F-tone FT11BCS1000 SFP 1x1 Cage Solder Through Hole Right Angle

View full details

F-tone FT11BCS1000 SFP 1x1 Cage Solder Through Hole, Right Angle

The F-tone FT11BCS1000 is a premium-grade 1x1 SFP (Small Form-factor Pluggable) Cage, specifically engineered to house optical and copper networking transceivers in high-reliability telecommunications and data center equipment. Designed as an empty housing receptacle, this right-angle, Through-Hole (THT) cage provides the critical mechanical structure and electromagnetic shielding required for robust fiber-optic and Ethernet networking interfaces.

Constructed from a highly durable Copper Alloy with Nickel plating, the FT11BCS1000 ensures exceptional mechanical longevity and resistance to oxidation across thousands of transceiver insertion and extraction cycles. To combat the high-frequency electromagnetic interference (EMI) typical in dense networking switch topologies, this cage is equipped with heavy-duty EMI Springs. These springs provide continuous 360-degree contact with the equipment chassis bezel, ensuring superior electrical grounding and EMI containment for high-speed signal integrity.

Mechanically, the 1x1 port cage features a precise Right-Angle side-entry profile designed for standard PCB solder termination, delivering maximum board-level stability. What sets this component apart is its extreme environmental resilience—boasting an ultra-wide Operating Temperature Range of -55°C to +85°C. This harsh-environment (industrial/military-grade) rating makes the FT11BCS1000 the definitive SFP cage solution for mission-critical infrastructure, including outdoor telecom base stations, aerospace networking, industrial IoT edge routers, and enterprise data center switches.

Product Specifications

    F-tone Part Number FT11BCS1000 Part Status Active
    Connector Style Cage Connector Type SFP
    Cage COPPER ALLOY,Ni PL ATED PACKAGING TRAY PACKAGING
    Port Matrix Configuration 1x1 Port Number of Ports 1
    Operating Temperature Range -55 ~+85°C Mounting Style Through Hole, Right Angle
    Included Lightpipe Yes Termination Press-Fit
    Height (Inches/mm) 9.70/0.382 Length (Inches/mm) 53.20/2.094
    Width (Inches/mm) 14.00/0.551 EMI Containment Feature Type EMI Springs

    Contact us.

    For any inquiries, please feel free to contact us. We reply within 24 hours.

    📧 Email: una@f-tone.com

    📱 Mobile / WhatsApp / WeChat: +86 177 6116 3895

    Important Notice

    Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

    The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
