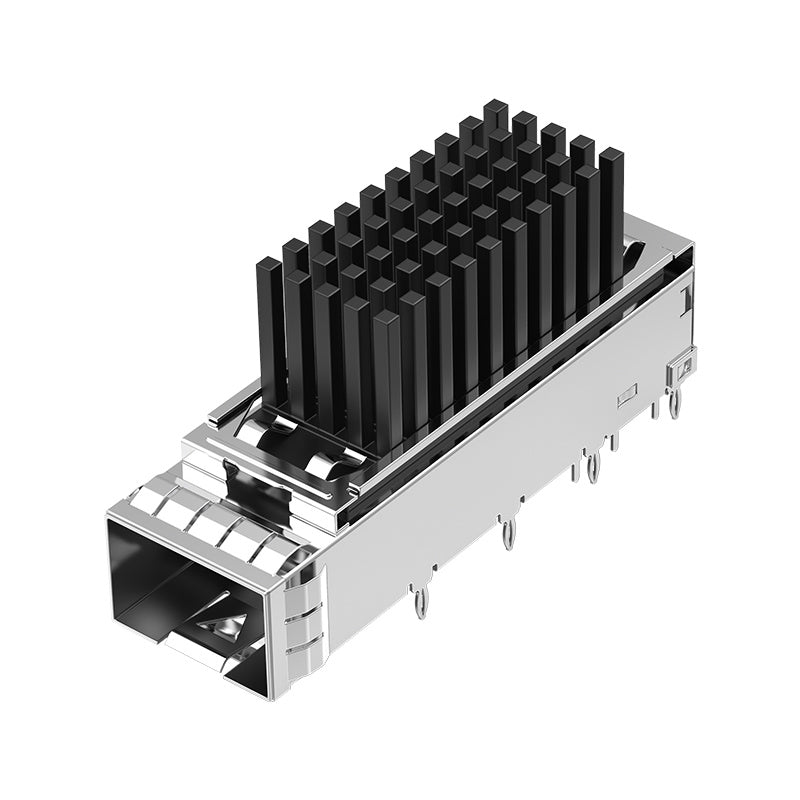

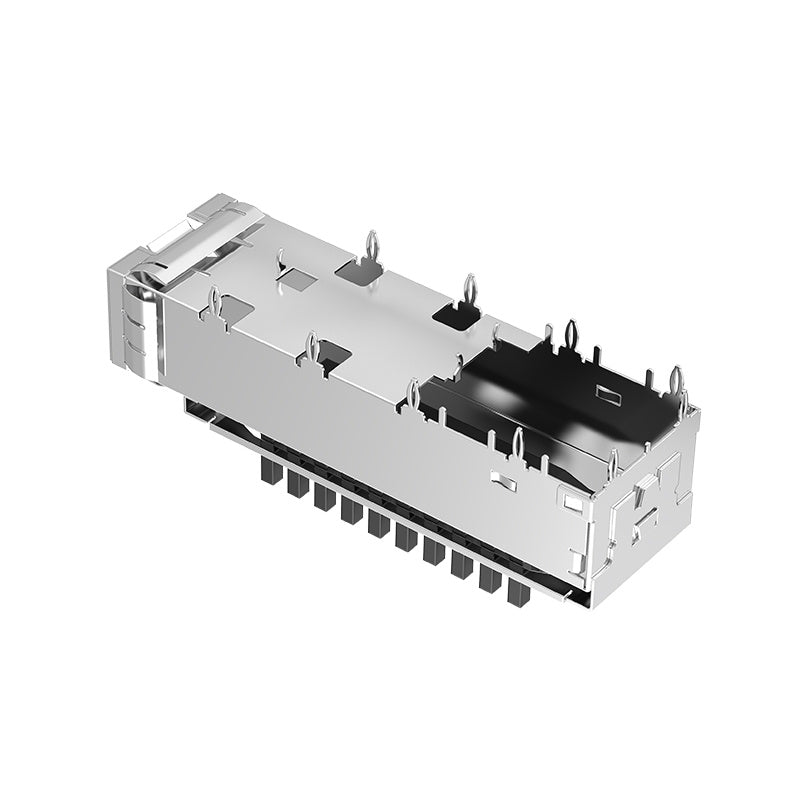

F-tone FT11BCS2060 1x1 Port SFP+ Cage With Heat Sink Solder
The FT11BCS2060 is a 1×1 port SFP+ cage with integrated heat sink, designed for high-speed optical and Ethernet networking applications requiring reliable mechanical support and strong EMI protection. Built with a copper alloy, nickel-plated housing, this SFP+ cage ensures durability and stable performance in demanding data communication environments.
This component supports standard SFP+ pluggable modules, providing a robust mechanical interface for high-speed transceiver integration. Its through-hole, right-angle solder mounting design ensures secure PCB attachment and excellent signal integrity for high-frequency applications.
The FT11BCS2060 is engineered with EMI spring features to reduce electromagnetic interference, improving signal quality and system reliability in dense electronic layouts. The integrated heat sink design helps with thermal management, making it suitable for high-performance networking systems operating under continuous load.
Compliant with industrial operating requirements, it supports a wide temperature range from -55°C to +85°C, ensuring stable operation in harsh environments. The compact 1×1 port layout makes it ideal for space-constrained networking equipment.
Typical applications include data centers, network switches, routers, high-speed communication systems, telecom infrastructure, and optical transceiver modules.
The SFP+ Cage is an essential component in high-speed networking devices, designed to securely hold SFP+ transceivers and ensure stable data transmission. Made from high-quality metal, it offers excellent electromagnetic shielding, reducing signal interference and improving overall performance. The cage also provides effective heat dissipation, helping maintain optimal operating temperatures in dense networking environments. Its precise structure ensures accurate alignment with connectors, enabling reliable insertion and removal of modules. Widely used in switches, routers, and data centers, the SFP+ Cage supports efficient and long-lasting network operation.
| Part Number | FT11BCS2060 | Part Status | Active |
| Connector Style | Cage | Connector Type | SFP+ |
| Cage | COPPER ALLOY,Ni PL ATED | PACKAGING | TRAY PACKAGING |
| Port Matrix Configuration | 1x1 Port | Number of Ports | 1 |
| Operating Temperature Range | -55 – 85°C | Mounting Style | Through Hole, Right Angle |
| Included Lightpipe | - | Termination | Solder |
| Height (Inches/mm) | 14.75/0.581 | Length (Inches/mm) | 49.30/1.941 |
| Width (Inches/mm) | 14.00/0.551 | EMI Containment Feature Type | EMI Springs |
Contact us.
For any inquiries, please feel free to contact us. We reply within 24 hours.
📧 Email: una@f-tone.com
📱 Mobile / WhatsApp / WeChat: +86 177 6116 3895
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
