Part Number: FT12SM-LCU-RP2-3M-PVC

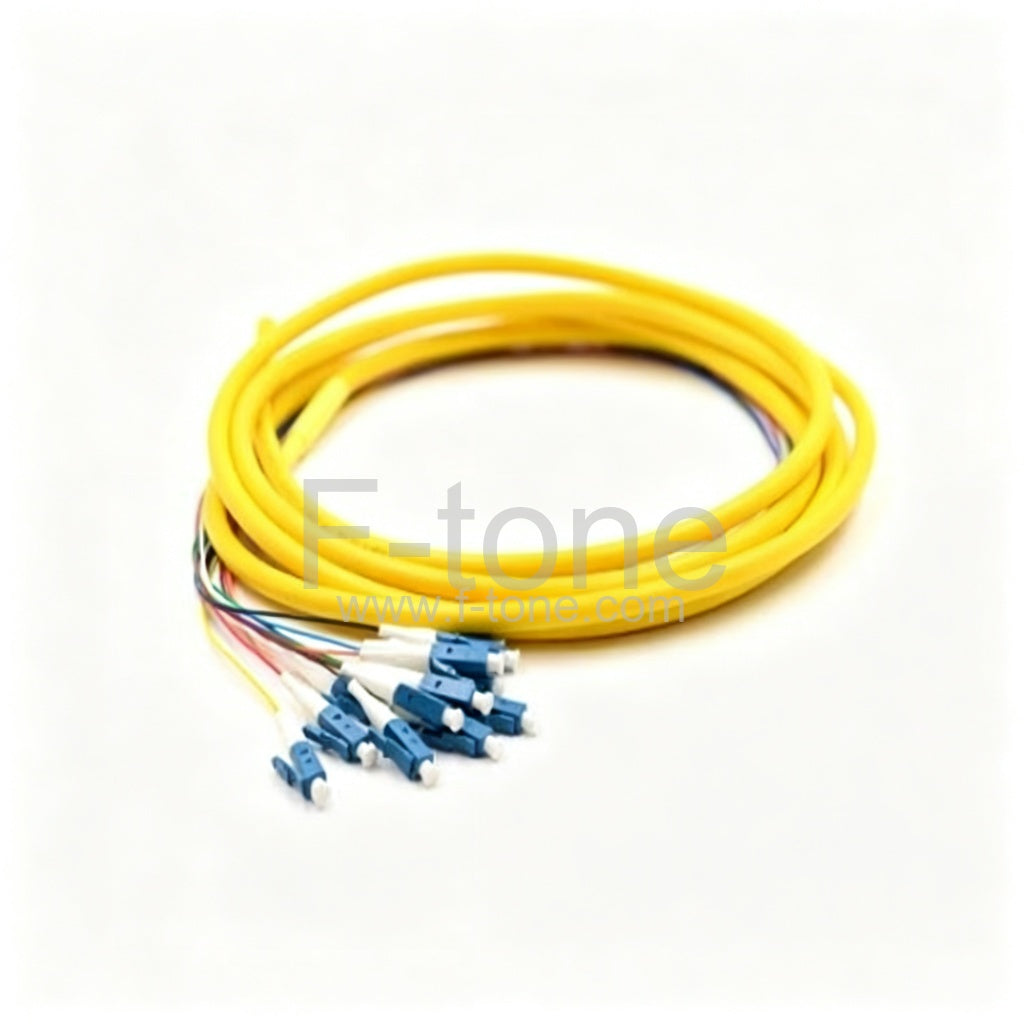

3m 12 Fibers LC/UPC 9/125 OS2 Singlemode Ribbon Fan-out Fiber Optic Pigtail with 2.0mm breakout PVC Jacket, 3m length
12 Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.
| Connector A | LC | Connector B | Unterminated |
|---|---|---|---|
| Fiber Category | Single-mode (OS2) | Jacket Color | Yelow |
| Cable Diameter | 2.0mm | Jacket Material | PVC |
| Fiber Count | 12 Ribbon Fan-out | Polish | UPC |
| Wavelength | 1310nm and 1550nm | Durability | >1000 Times |
| Insertion loss | 0.3dB | Interchangeability | 0.2dB |
| Return loss | 50dB | Vibration | 0.2dB |
| Operating temperature | -40~75C | Storage temperature | -45~85C |
Key Features and Applications
Flexible and easy to strip fibre bufferingIdentifiable fibre buffer colours under all lighting conditions
Reduces installation time
Avoids incorrect patching by possible fiber flipping
Telecomunication networks
Local area networks(LAN)
Wide area networks(WAN)
Indoor Applications
Fiber Optic Pigtail for Fusion Splicing
Fiber pigtail cables provide a fast way to make factory terminations in the field.
OEM Service Available for 12 Fiber Pigtails
F-tone.COM supports customized service, such as fiber type, fiber connector, jacket material, pigtail length for simplex packes fiber optic pigtail. Please feel free to contact [email protected].
Fiber Pigtail Packaging & Labeling
This easy to take and well-protected fiber optical pigtail bag package, blister package or roll package have been labelled and marked by F-tone.COM as default.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
