Part Number: FT12SM-SCU-CP-1M-PVC

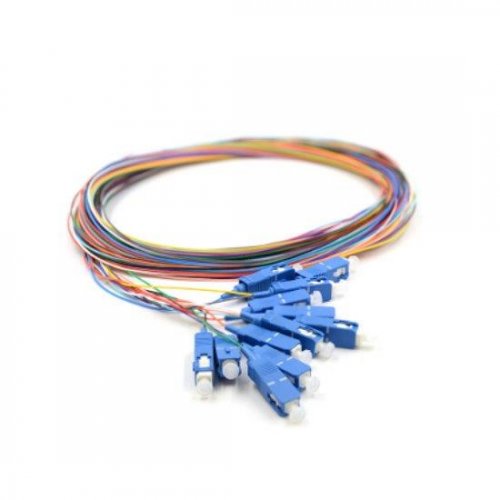

1M 12 Fibers SC/UPC Single-Mode Color-Coded Fiber Optic Pigtail, Unjacketed
Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The Low Insertion loss, low backreflection color-coded 900um tight buffer pigtails is designed for high fiber count splicing applications. Color coded to industry standards makes enclosure layout as simple as following the standard color code.
| Connector A | SC | Connector B | Unterminated |
|---|---|---|---|
| Fiber Category | Single-mode (OS2) | Jacket | Unjacketed |
| Fiber Count | 12 | Pigtail Color | 12-Color |
| Polish | UPC | Wavelength | 1310nm and 1550nm |
| Insertion loss | 0.3dB | Interchangeability | 0.2dB |
| Return loss | 50dB | Vibration | 0.2dB |
| Operating temperature | -40~75C | Storage temperature | -45~85C |
Key Features and Applications
Fiber Optic Pigtail for Fusion Splicing
Fiber pigtail cables provide a fast way to make factory terminations in the field.
OEM Service
F-tone.COM supports customized service for the 12 packs colored pigtail, such as fiber type, fiber connector, pigtail length, packing, etc. Contact [email protected] to get a suitable colored pigtail.
Packaging & Labeling
This easy to take and well-protected fiber optical pigtail blister package or bag package have been labelled and marked by F-tone.COM as default.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
